EYE6-5M-D3

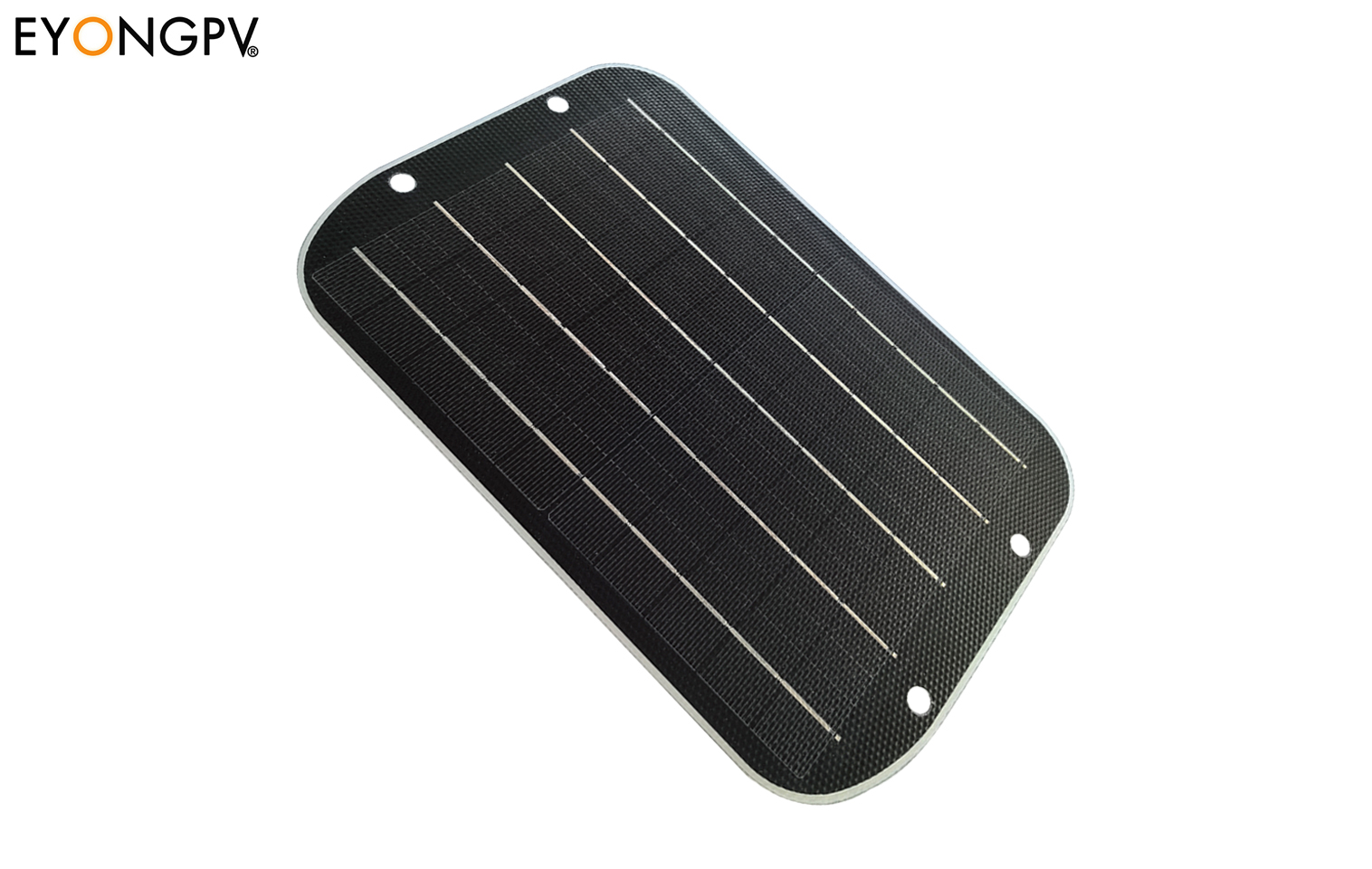

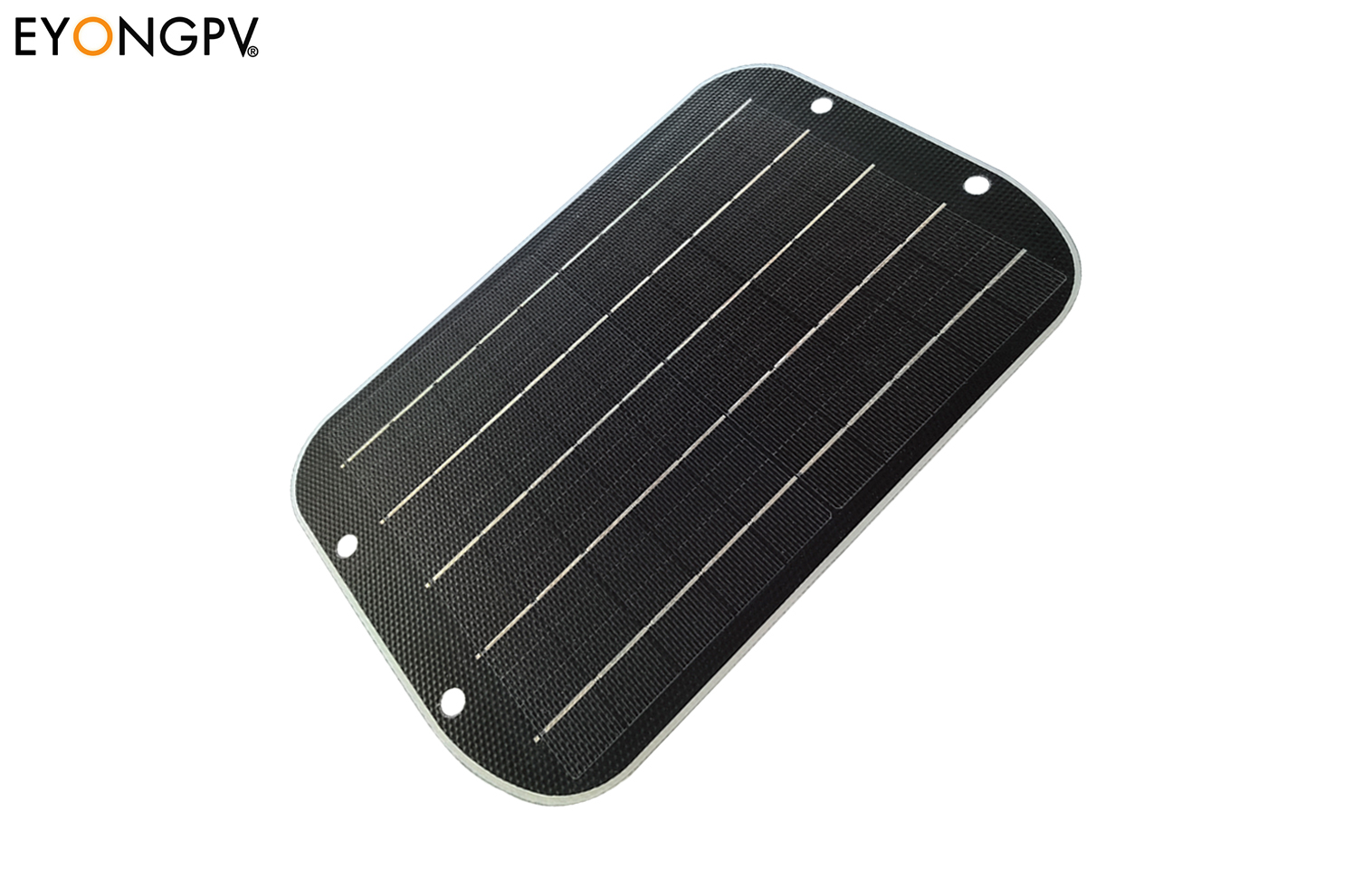

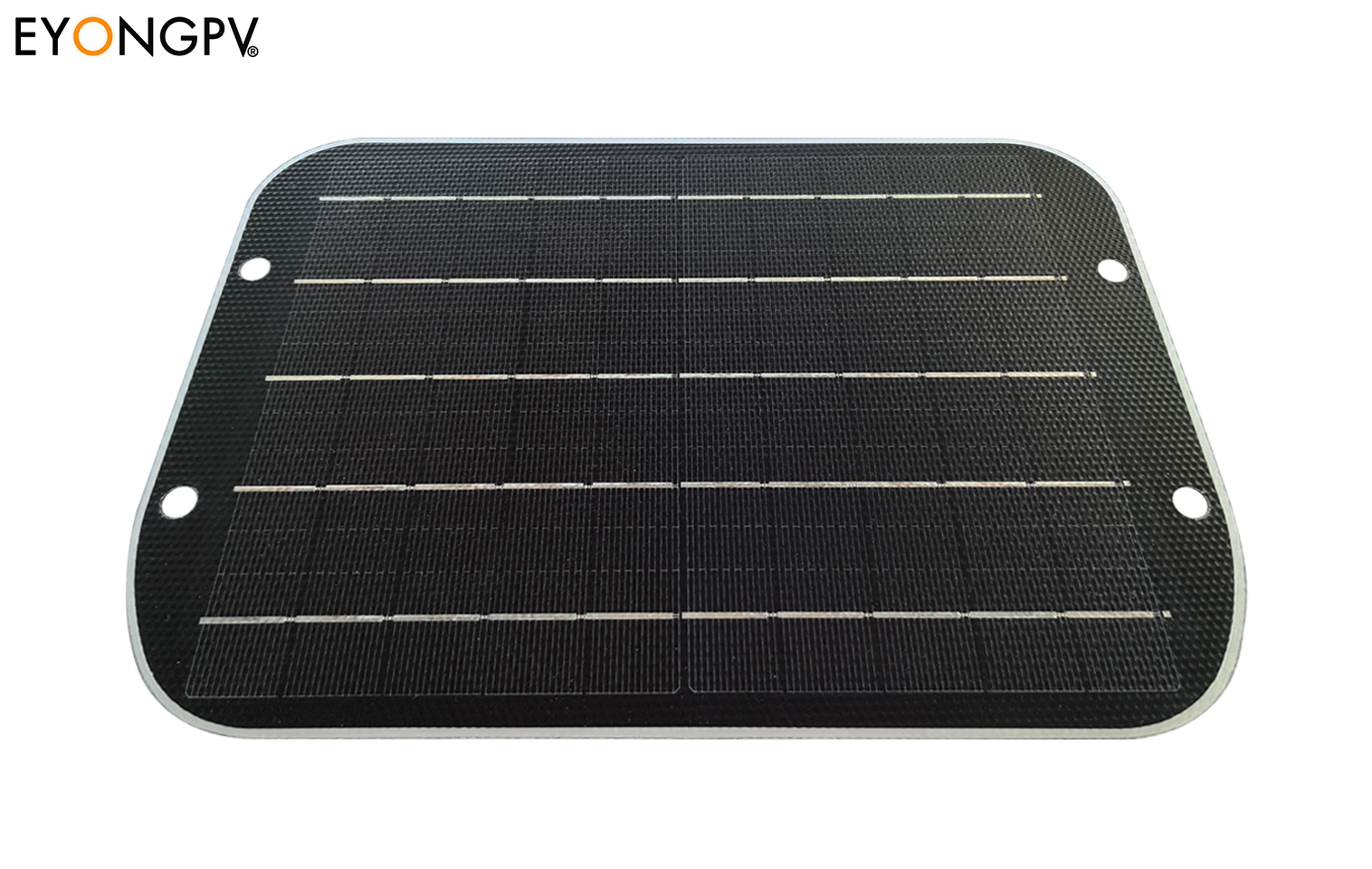

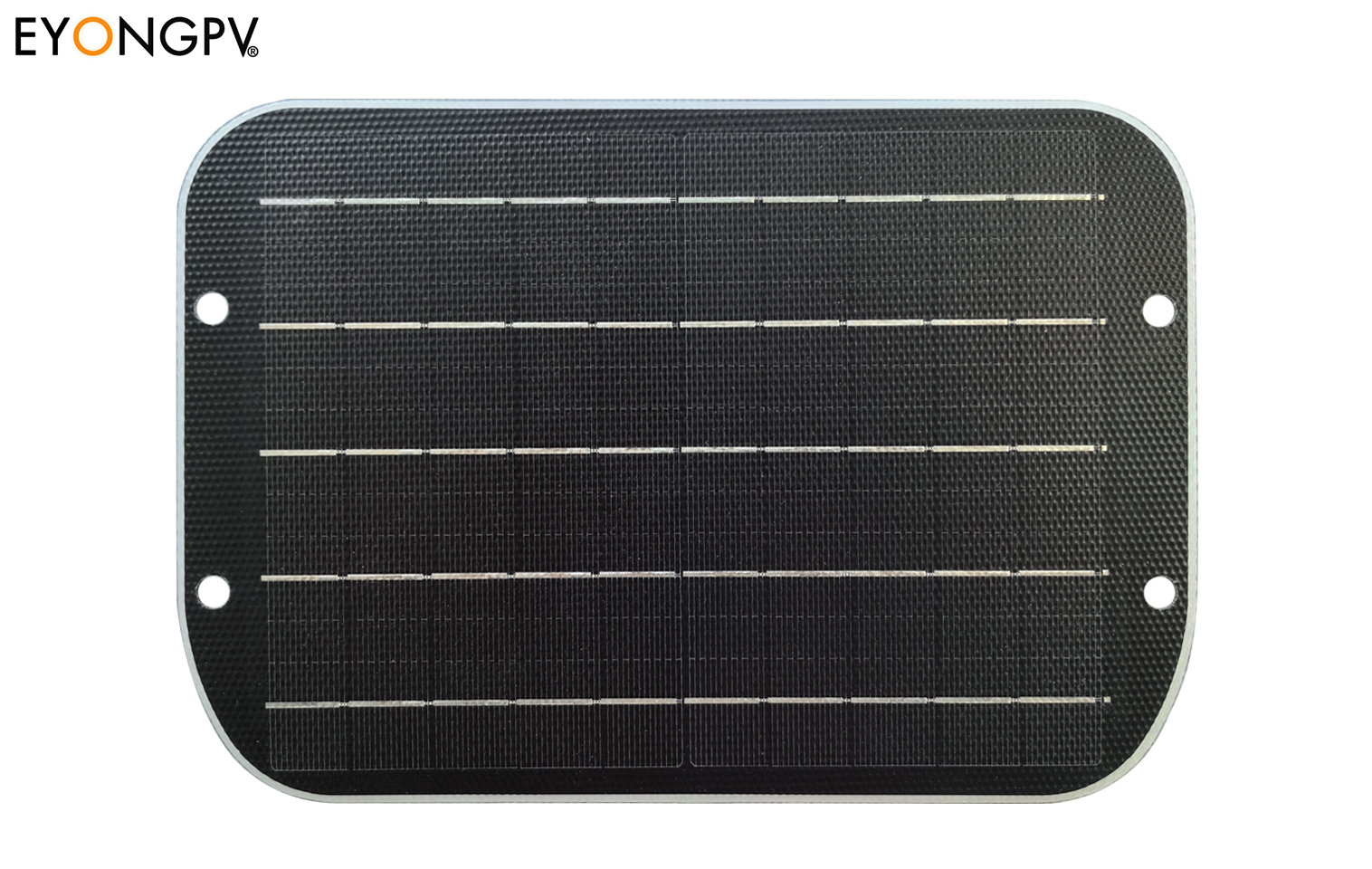

6W-5V Custom Mono ETFE Mini Bike Lamp Light Solar Panel

●
Powerful power output: Made of grade A monocrystalline solar cells with much higher efficiency that make sure more stable and durable
●
Premium ETFE film: This film features superior light transmittance and weatherproof performance, and is also heat, corrosion, and UV resistant. This material surfaces are easy to clean, ensures the best performance day after day. all for a cost-effective price.
●
Excellent weak light performance: Excellent performance under low light environments (mornings, evenings, rainy and cloudy days)
●
Bicycle domain: This product is widely used in various brands of solar bikes, it charges the battery on the bike to ensure that the positioning system of the bike is online in real time and the bike is available or not.
●

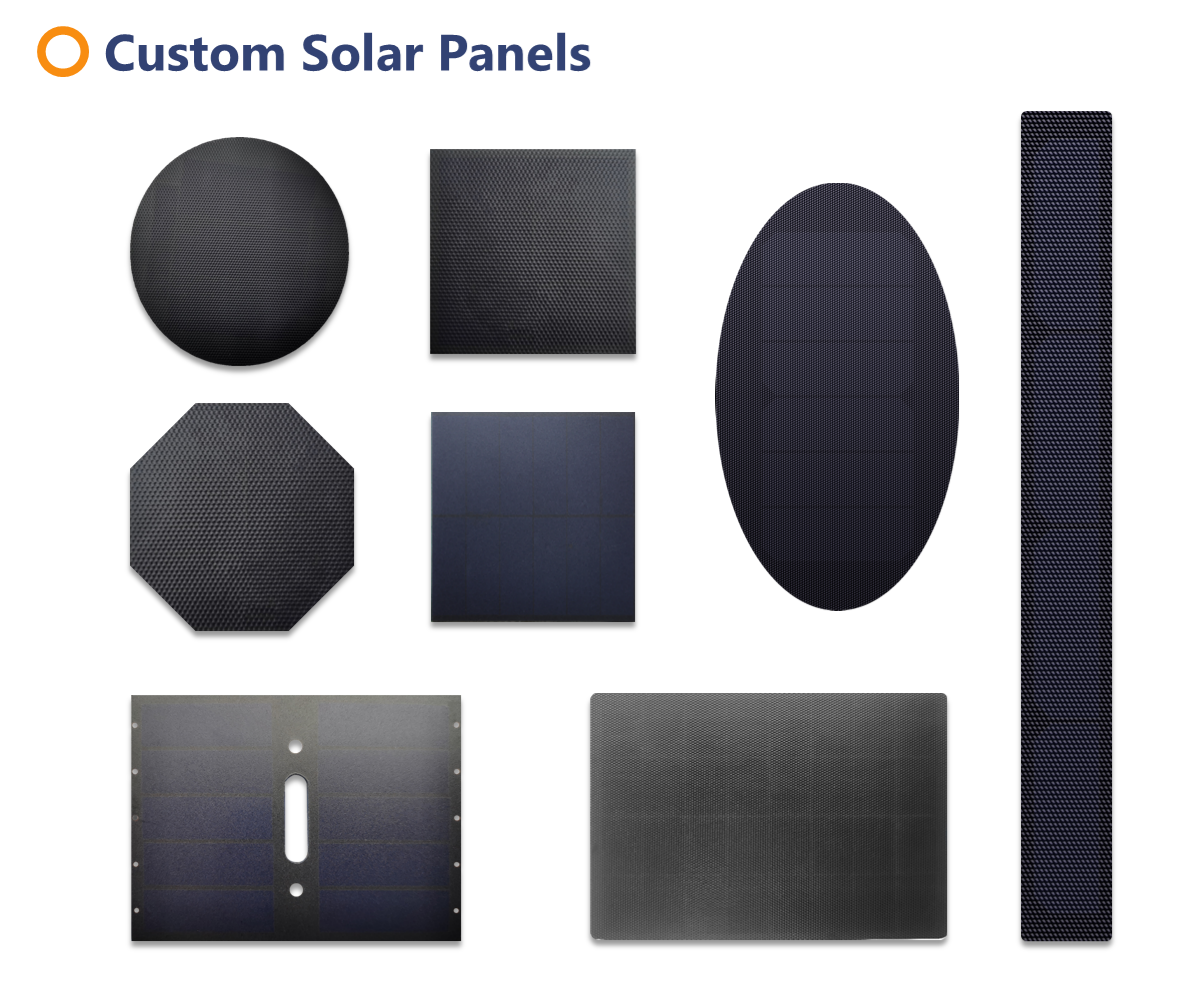

Customizable designs: We can customize any Powers, Voltages, Dimensions, Shapes, Holes, Thickness, Hardness, Feature, Processing method and so on that base on customer requirements.

Inquiry now

SPECIFICATIONS

Electrical Specifications

Standard Test Conditions:	(Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc)
Maximum Power Pmax	6W
Voltage at Maximum Power Point (Vmpp)	5V
Current at Maximum Power Point (Impp)	1.2A
Open Circuit Voltage (Voc)	6V
Short Circuit Current (Isc)	1.32A
Operating Temperature	-20℃ ~ +65℃
Max System Voltage (IEC/UL)	300V DC
Temperature Coefficient of Isc	(+0.06% /ºC)
Temperature Coefficient of Voc	(-0.33% /ºC)
Temperature Coefficient of Pmax	(-0.41% /ºC)

Mechanical Specifications

Cell Type	Monocrystalline solar cell
Cell Size	158.75 x 158.75mm
Size	270 x 175mm
Surface Material	High performance corrosion resistant ETFE
No. of Folding	10 = 1 x 10
Weight	0.25KG

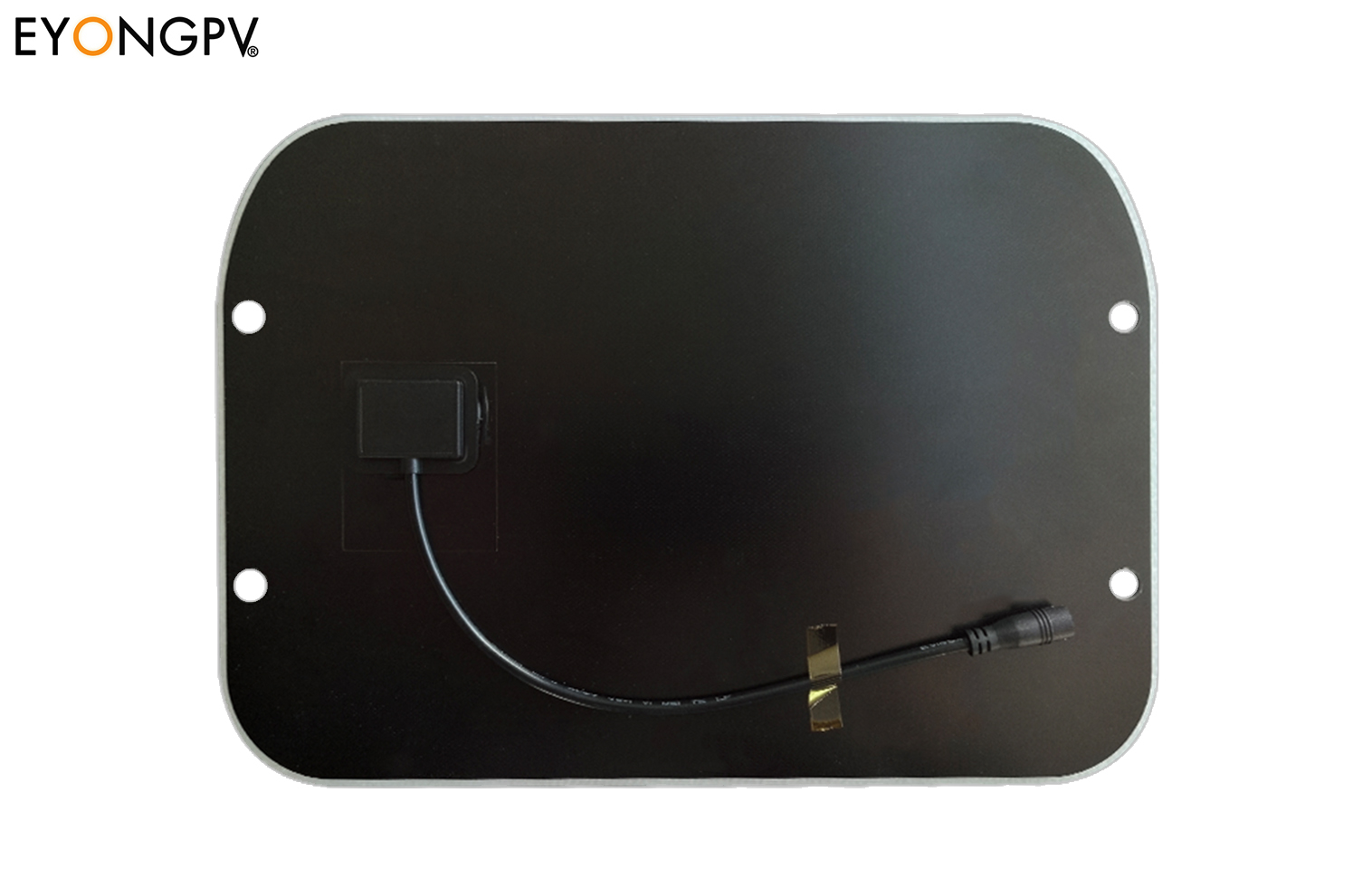

Junction Box	IP67 Rated

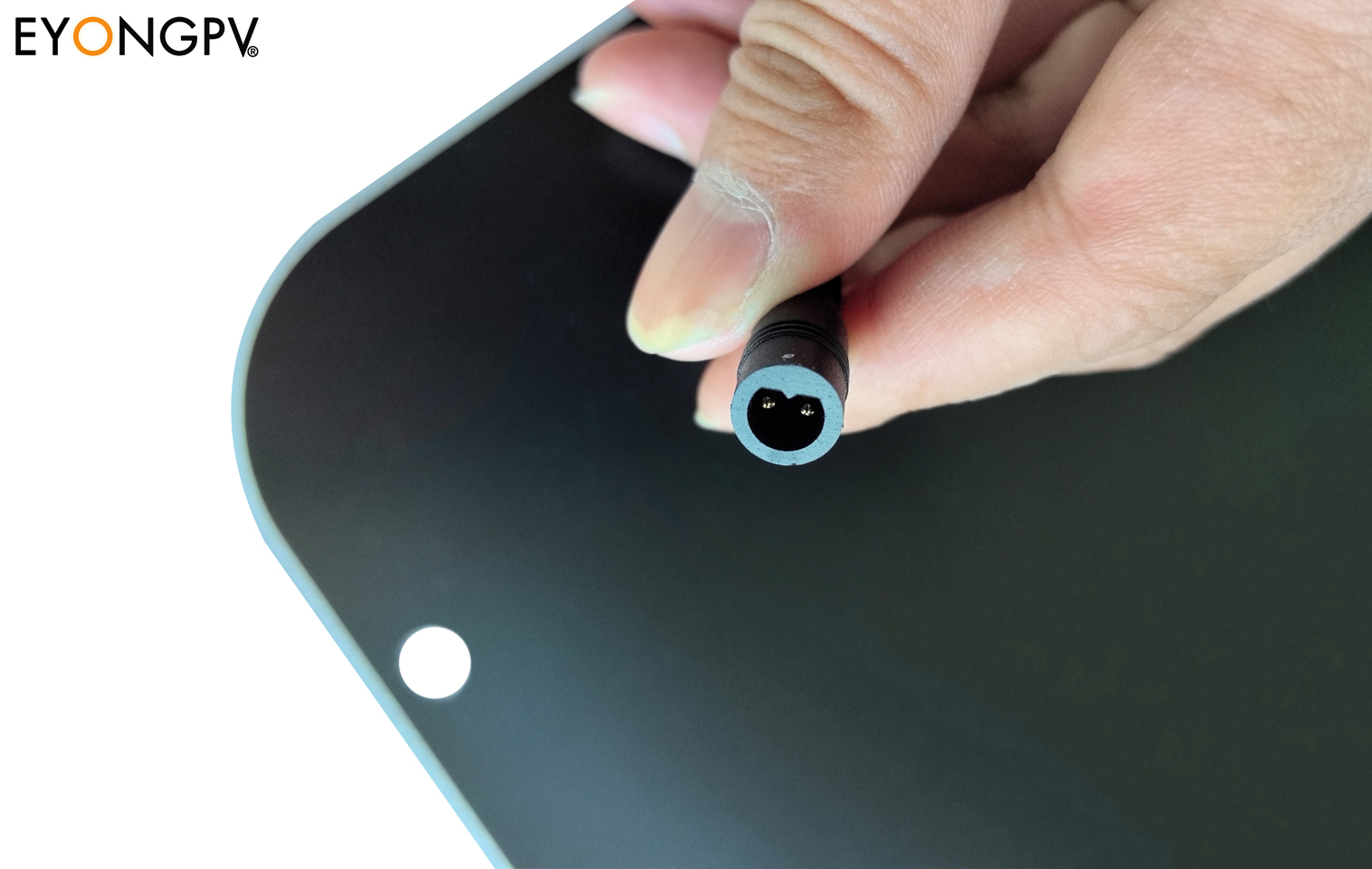

Type of Connector	Special connector for bicycle charging
Certifications	CE, FCC, ROHS, REACH

EYONGPV | What are the advantages of this solar panel?

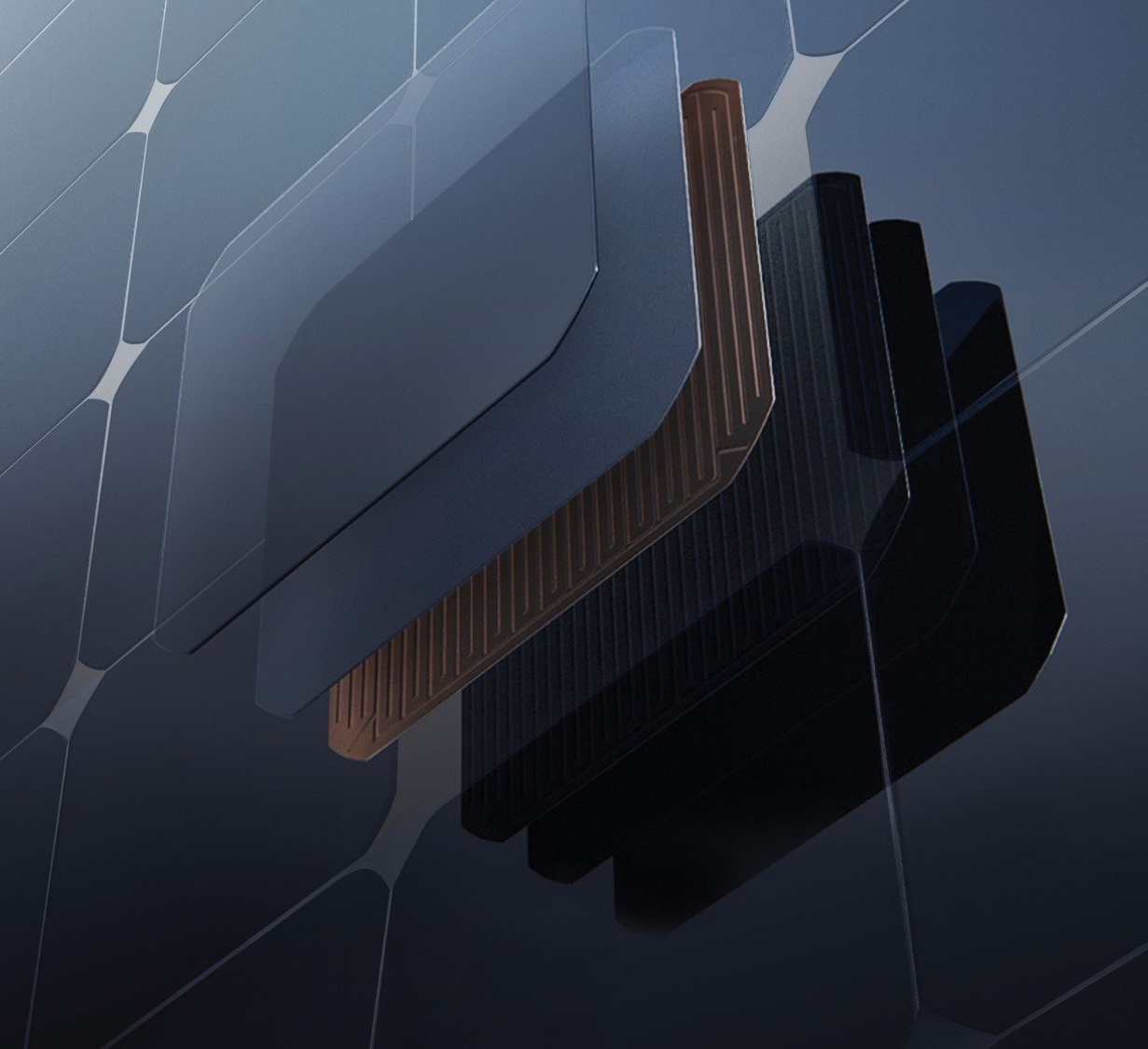

#1. First of all, we chose the high efficiency SUNPOWER cell

A. Its back is thick and strong copper wire structure, so it is more able to withstand trampling and throwing, bending strong when other batteries have already broken.*

B. It can resist power loss caused by cracking and corrosion, and it has strong heat and moisture resistance.*

C. Its unique cell structure performs better than conventional solar panels on cloudy, overcast, or partially shaded days.

D. The conversion efficiency is higher than other cells, it starts to convert sunlight earlier than traditional solar panels, and lasts longer throughout the day.

E. Unlike other solar panels made by the conventional solar cells,*those cells will break out when it is dropped.

#2. The surface is made of polymer material ETFE film, which has excellent light transmittance and weatherproof performance, as well as high temperature resistance, corrosion resistance and ultraviolet resistance. The diamond pattern surface has better light absorption, and is more beautiful and unique.

#3. Our detailed processing process is more detailed, and all solar panels use machine vision positioning, patch, cutting edge and so on.

Choosing us will exceed your expectations

#1. We have strict control over raw materials and production details, and work in strict accordance with design drawings and request details.

#2, All our products have a different design concept, especially our self-developed products are unique design elements, won a lot of design patents.

#3, We have a very rich professional experience in solar panels, which will make our communication more efficient.

#4, Our response speed is very fast, let you select the most suitable design in a short time,

#5, Our solar panels improve the reflection efficiency, reduced the reflection of sunlight and increased the amount that can be utilized.

*When you choose EYONGPV, we are confident that our Design skill, Reaction efficiency, Quality and Serve will exceed your expectations.

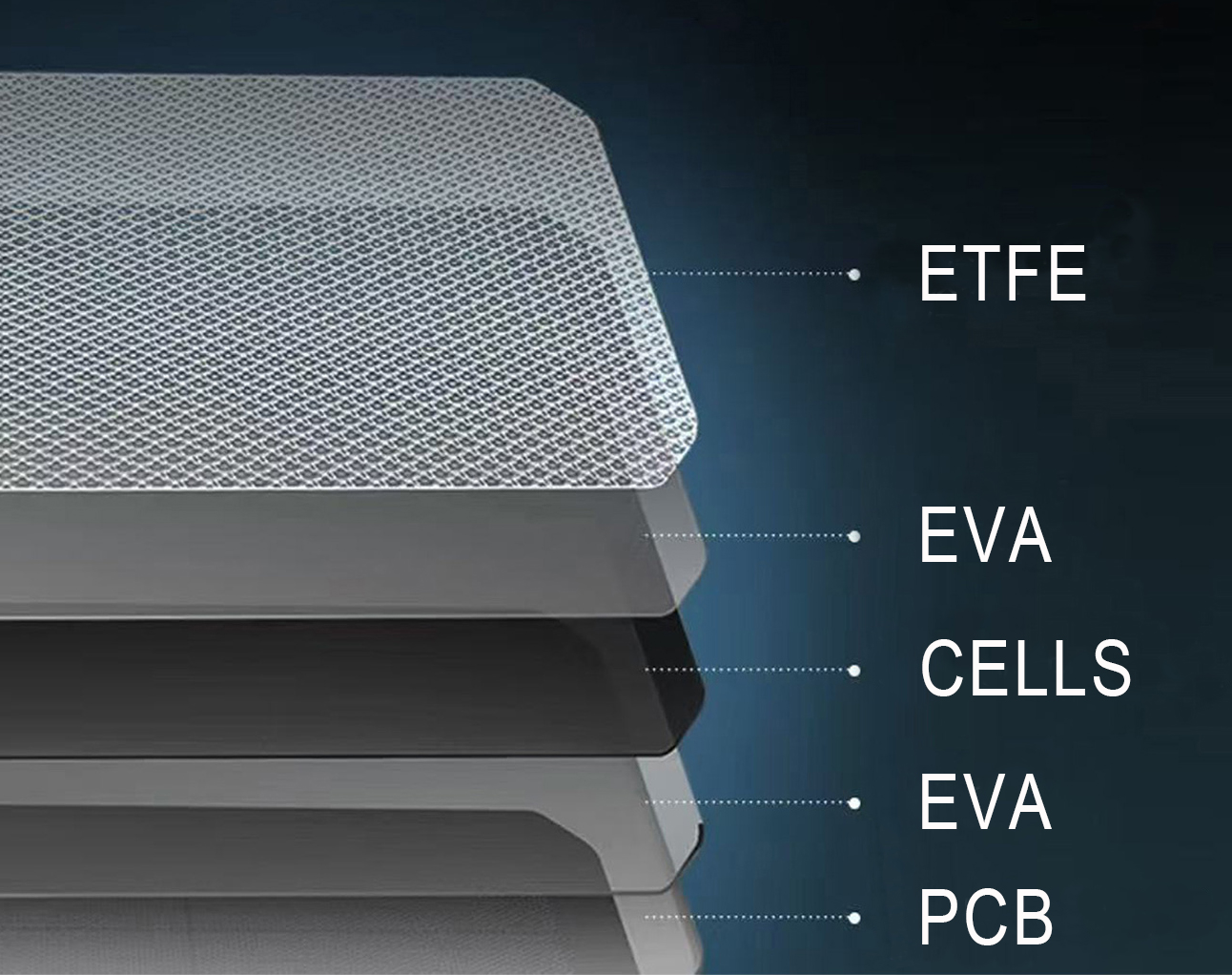

Product Structure

Strictly grasp the details of each material and process, so that the finished product can reach the most accurate standard.

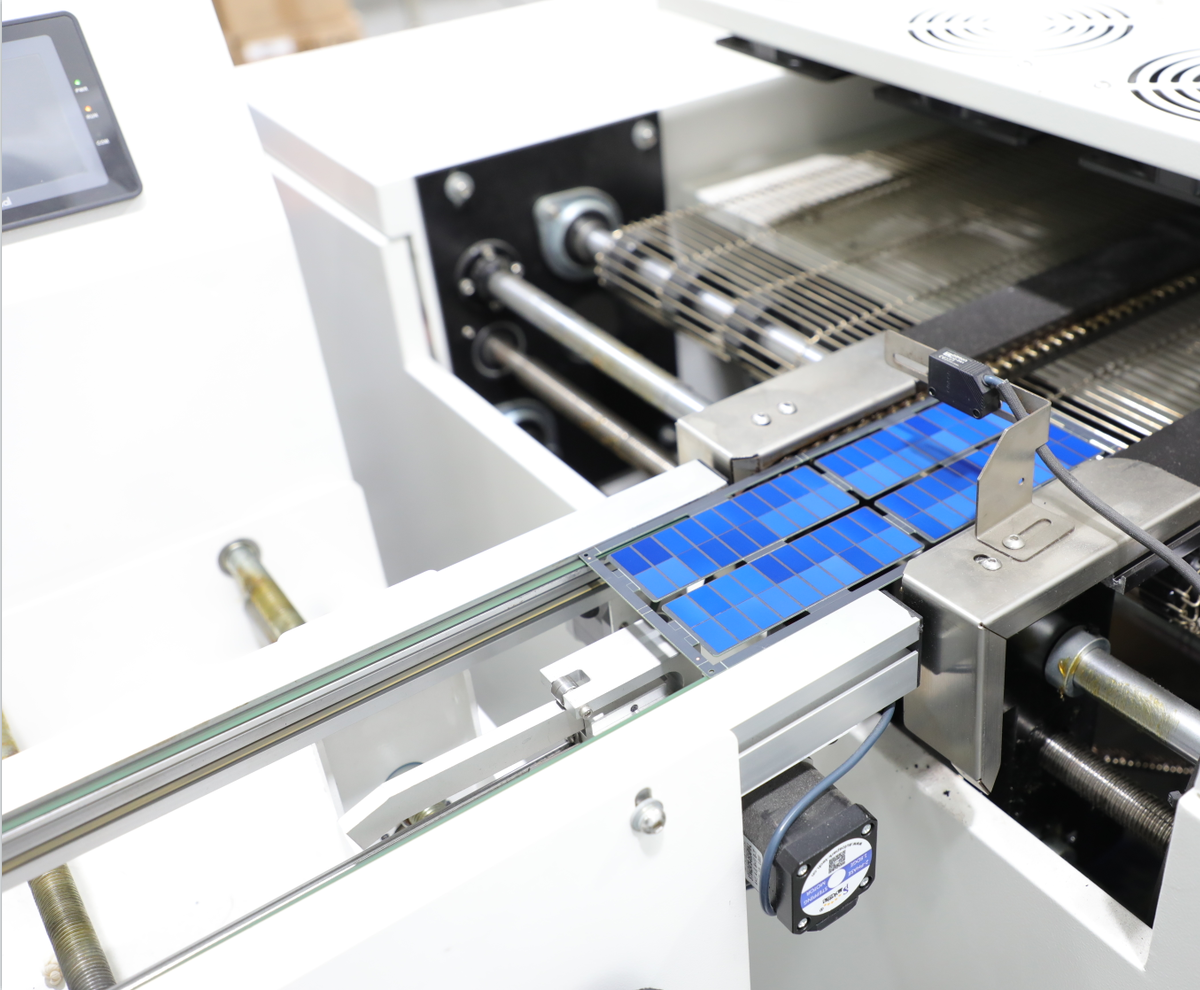

Automatic SMT process

High-efficiency production to meet client delivery expectations.

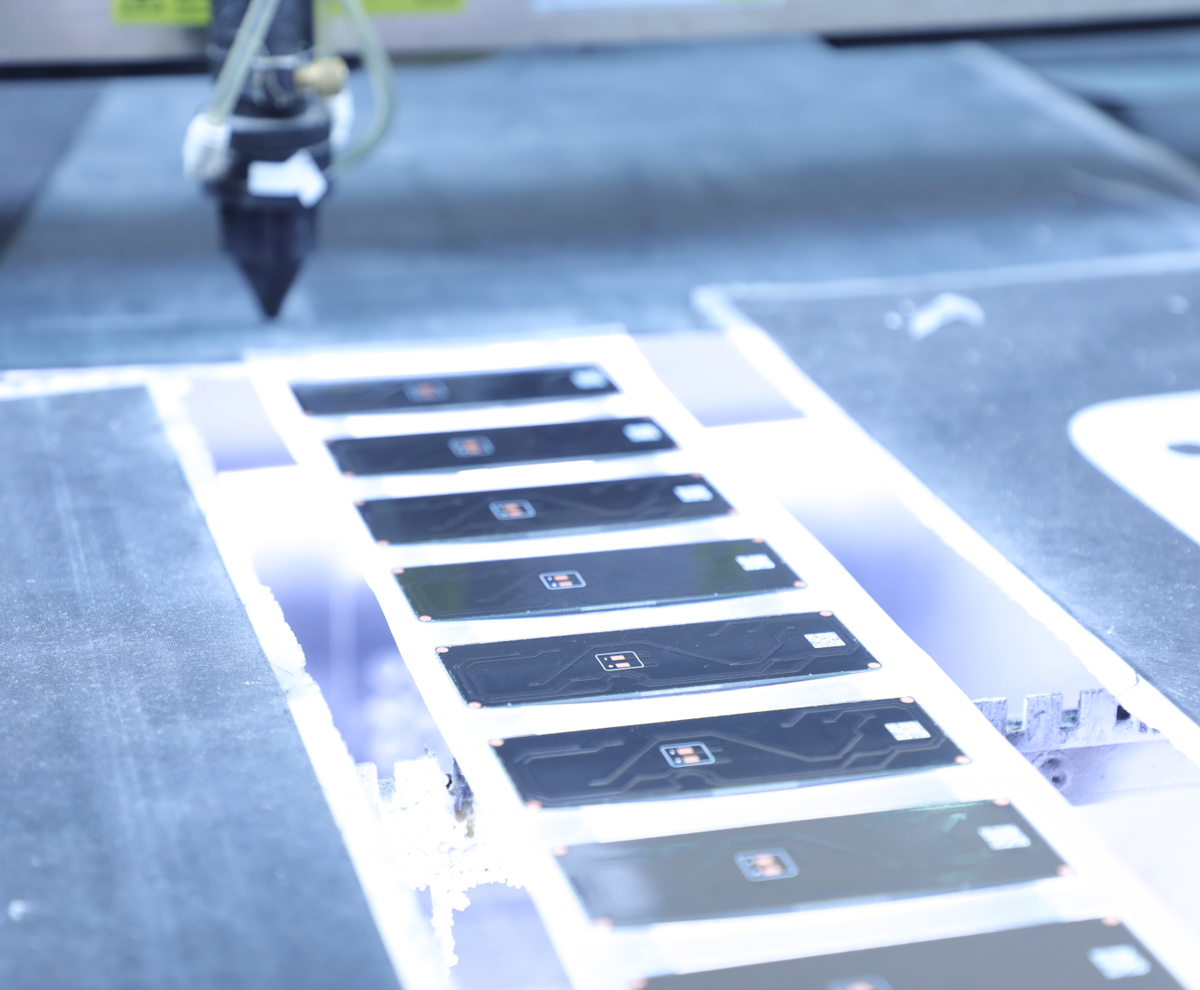

Automatic cutting machine

The machine is equipped with a set visual positioning system, which automatically cuts out the shape of the solar panel according to the requirements of the drawing.
