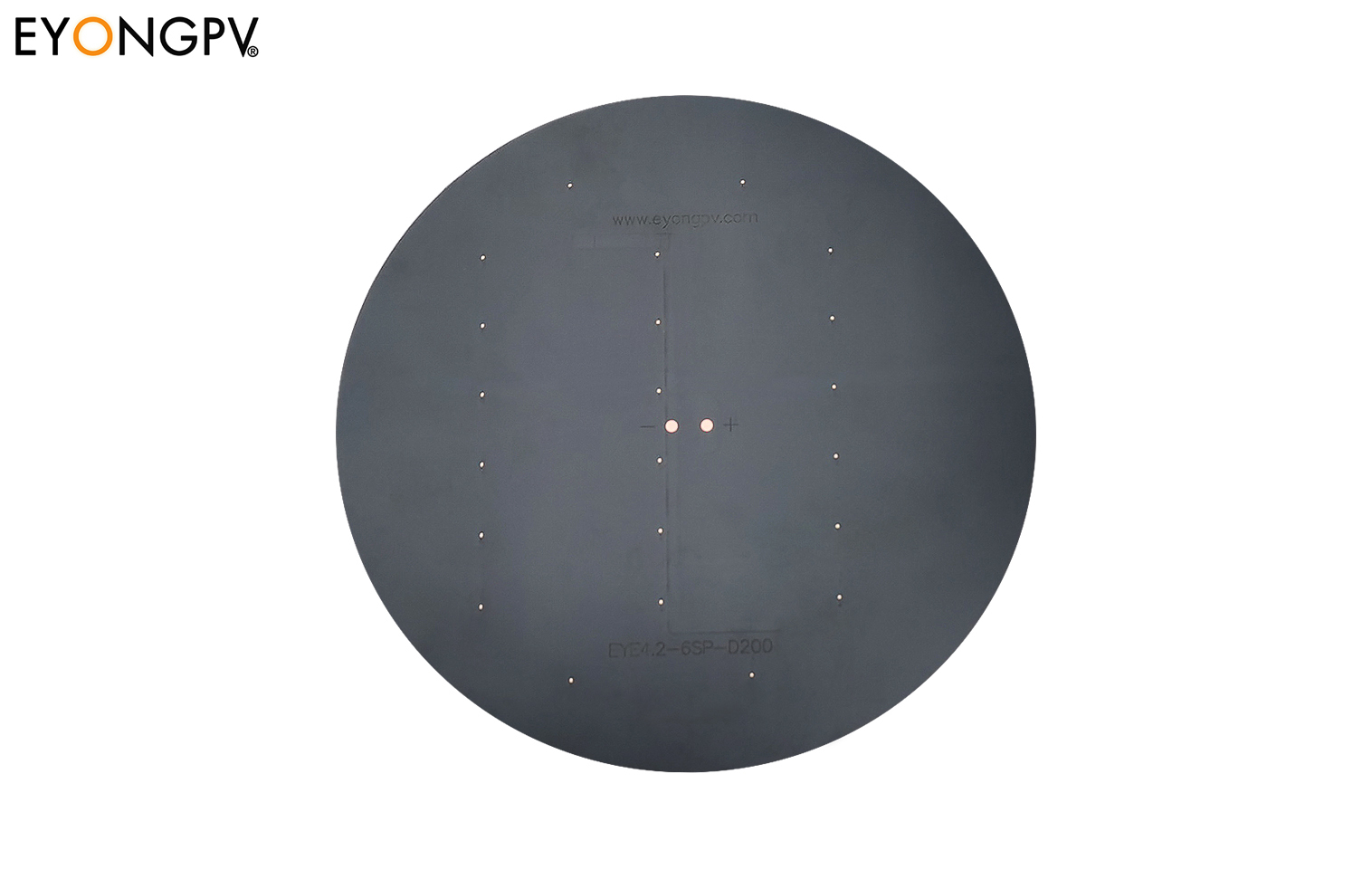

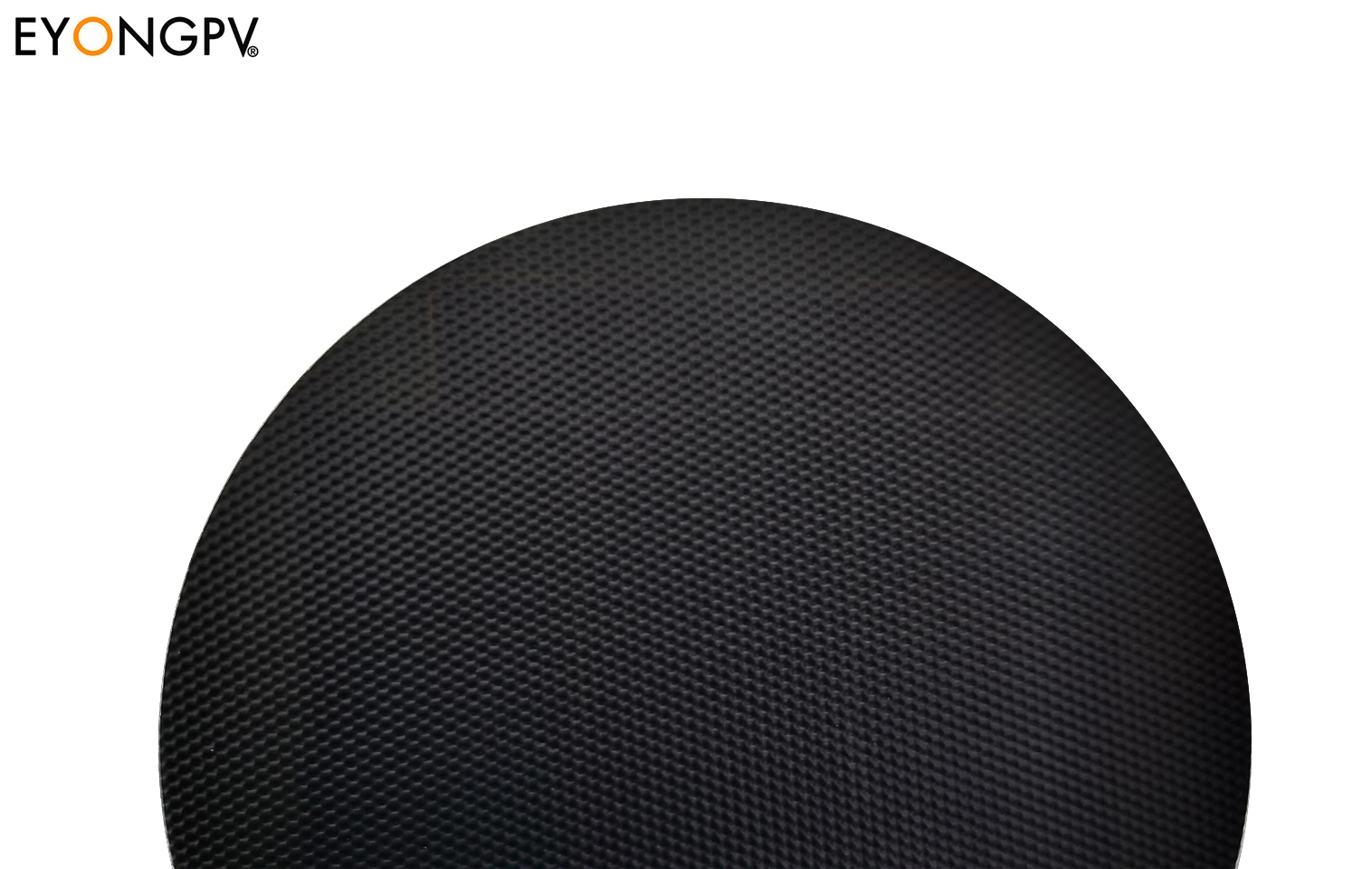

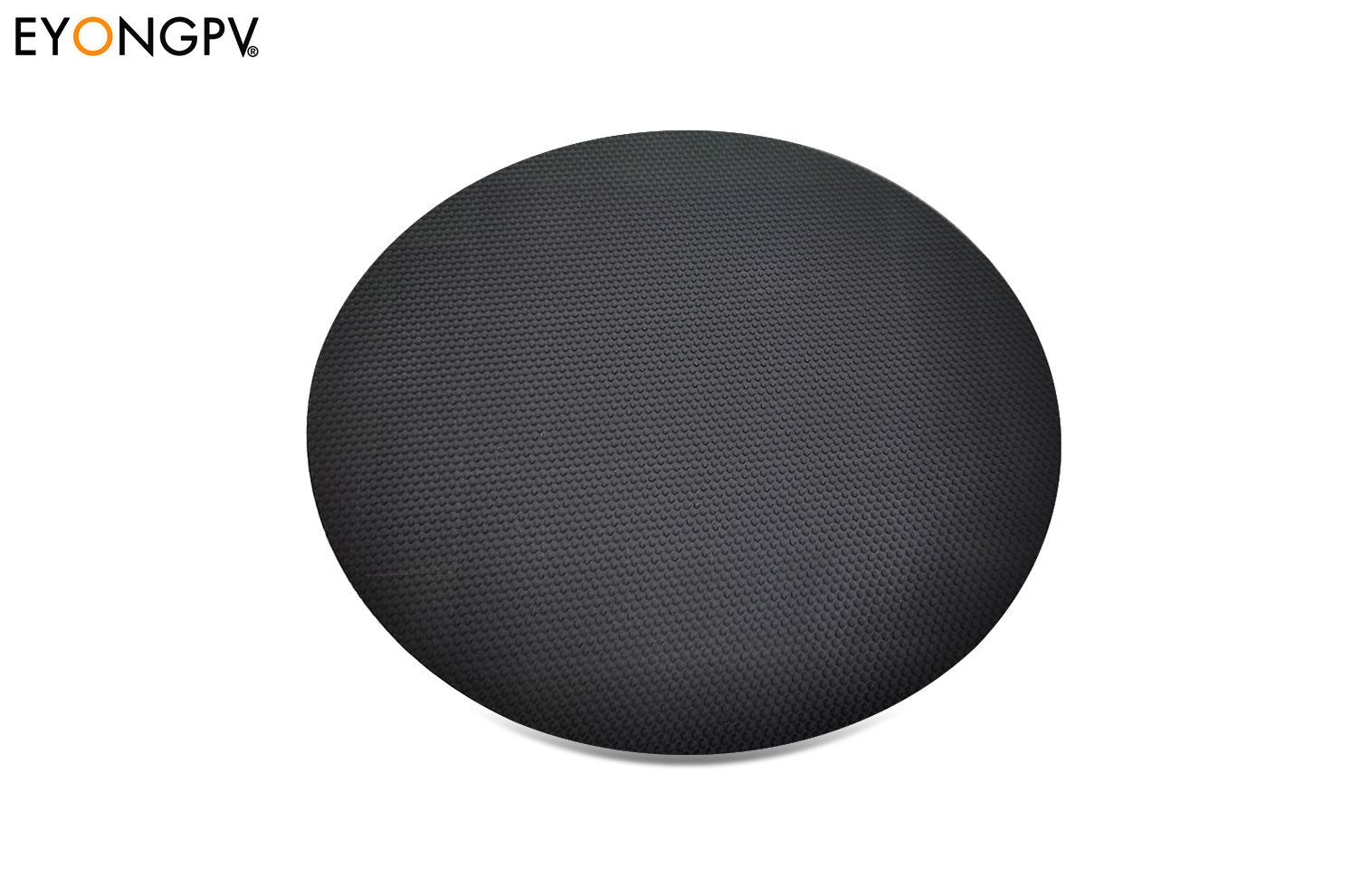

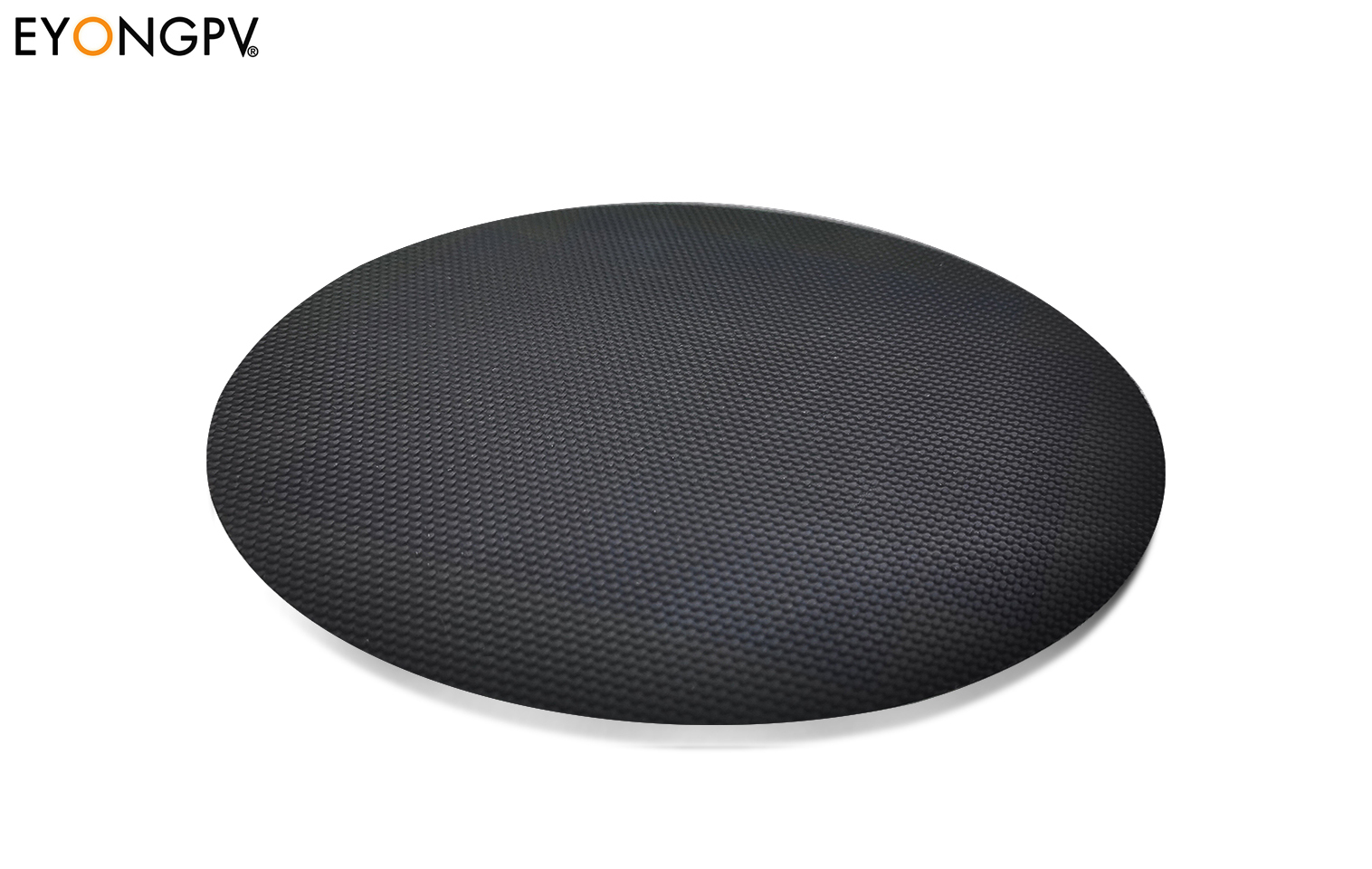

EYE4.2-6SP

4.2W Custom Sunpower ETFE Mini Monitor Light Solar Panel

●
Powerful power output: SunPower cells are the #1 choice for customers due to the combination of high efficiency and ruggedness.
●

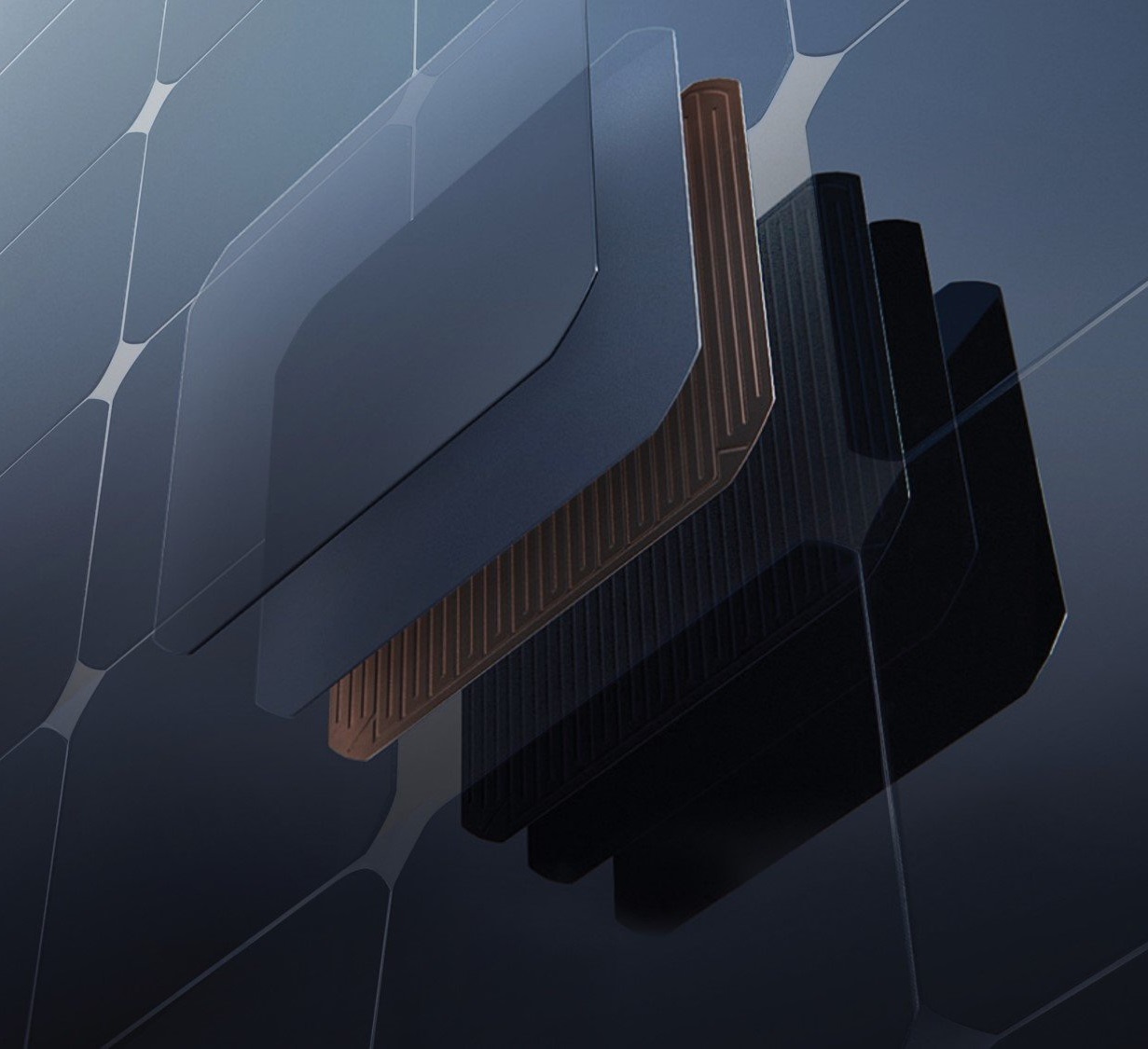

Unique Cell Structure: SunPower cell is built on thick and strong copper wire, As a result it can be resistant to power loss via cracking and corrosion.
●
Excellent weak light performance: Excellent performance under low light environments (mornings, evenings, rainy and cloudy days)
●

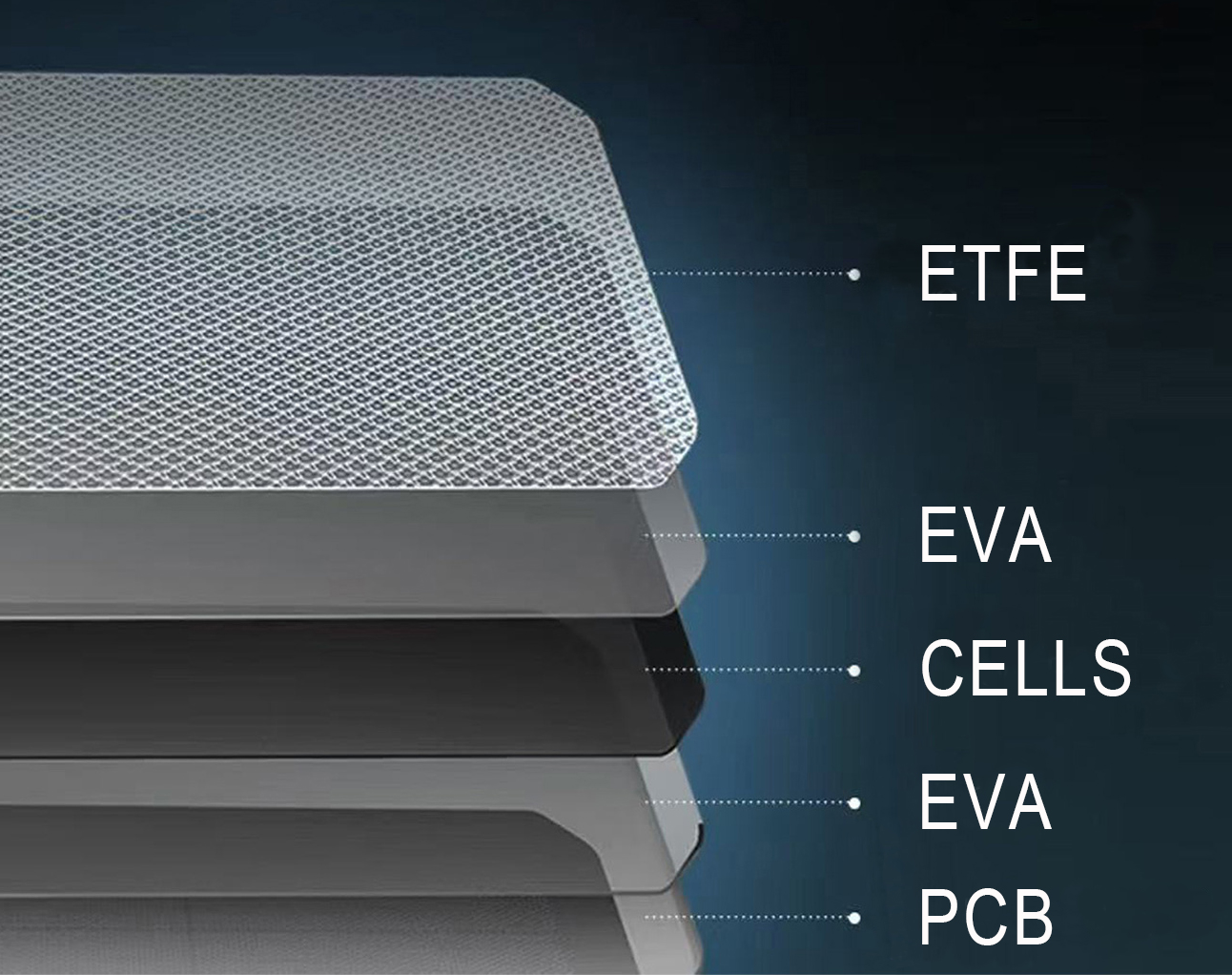

Premium ETFE film: This film features superior light transmittance and weatherproof performance, and is also heat, corrosion, and UV resistant. This material surfaces are easy to clean, ensures the best performance day after day. all for a cost-effective price.
●
Widely applications: This kind of solar panel application field is particularly wide, such as Solar monitors, Solar lawn lamps, Solar wall lamps, Solar floor tile lamps, Solar flashlights, Solar charger, Solar christmas lamps, Solar airplanes, Solar toys, solar buoys and so on.
●

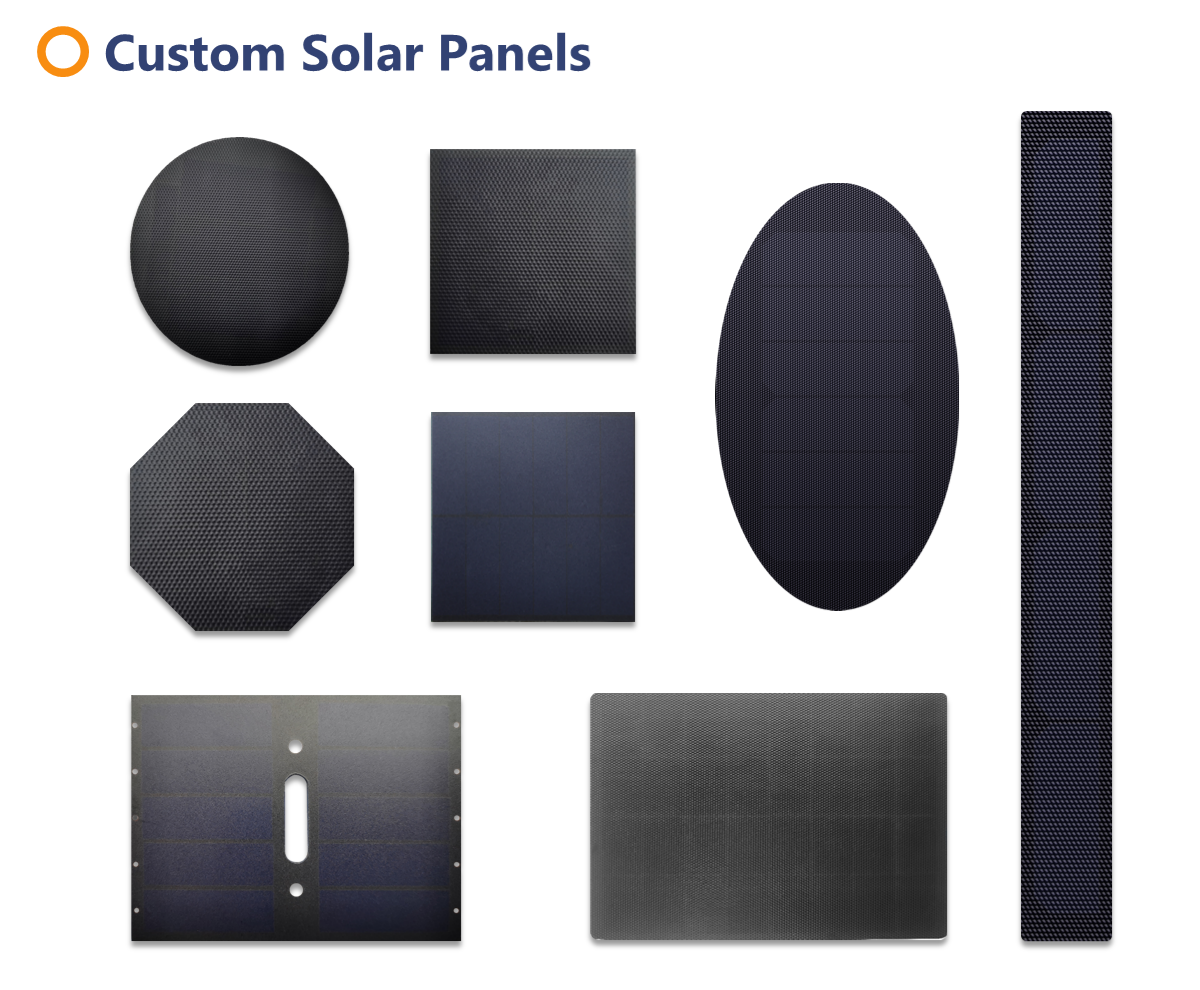

Customizable designs: We can customize any Powers, Voltages, Dimensions, Shapes, Holes, Thickness, Hardness, Feature, Processing method and so on that base on customer requirements.

Inquiry now

Standard Test Conditions:	(Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc)
Maximum Power Pmax	4.2W
Voltage at Maximum Power Point (Vmpp)	6.0V
Current at Maximum Power Point (Impp)	0.7A
Open Circuit Voltage (Voc)	7.2V
Short Circuit Current (Isc)	0.75A
Operating Temperature	-20℃ ~ +65℃
Max System Voltage (IEC/UL)	300V DC
Temperature Coefficient of Isc	(+0.06% /ºC)
Temperature Coefficient of Voc	(-0.33% /ºC)
Temperature Coefficient of Pmax	(-0.41% /ºC)

Cell Type	SunPower solar cell
Cell Size	125 x 125mm
Size	Dia. 200mm
Surface Material	High performance corrosion resistant ETFE
No. of Folding	12 = 2 x 6
Weight	0.12 KG
Junction Box	None
Type of Connector	None
Certifications	CE, FCC, ROHS, REACH

Specification
