EYA45-22SP4

45W 4Folds Sunpower Mono Foldable Folding Portable ETFE Solar Panel Charger

●
Powerful power output: SunPower cells are the #1 choice for customers due to the combination of high efficiency and ruggedness.
●

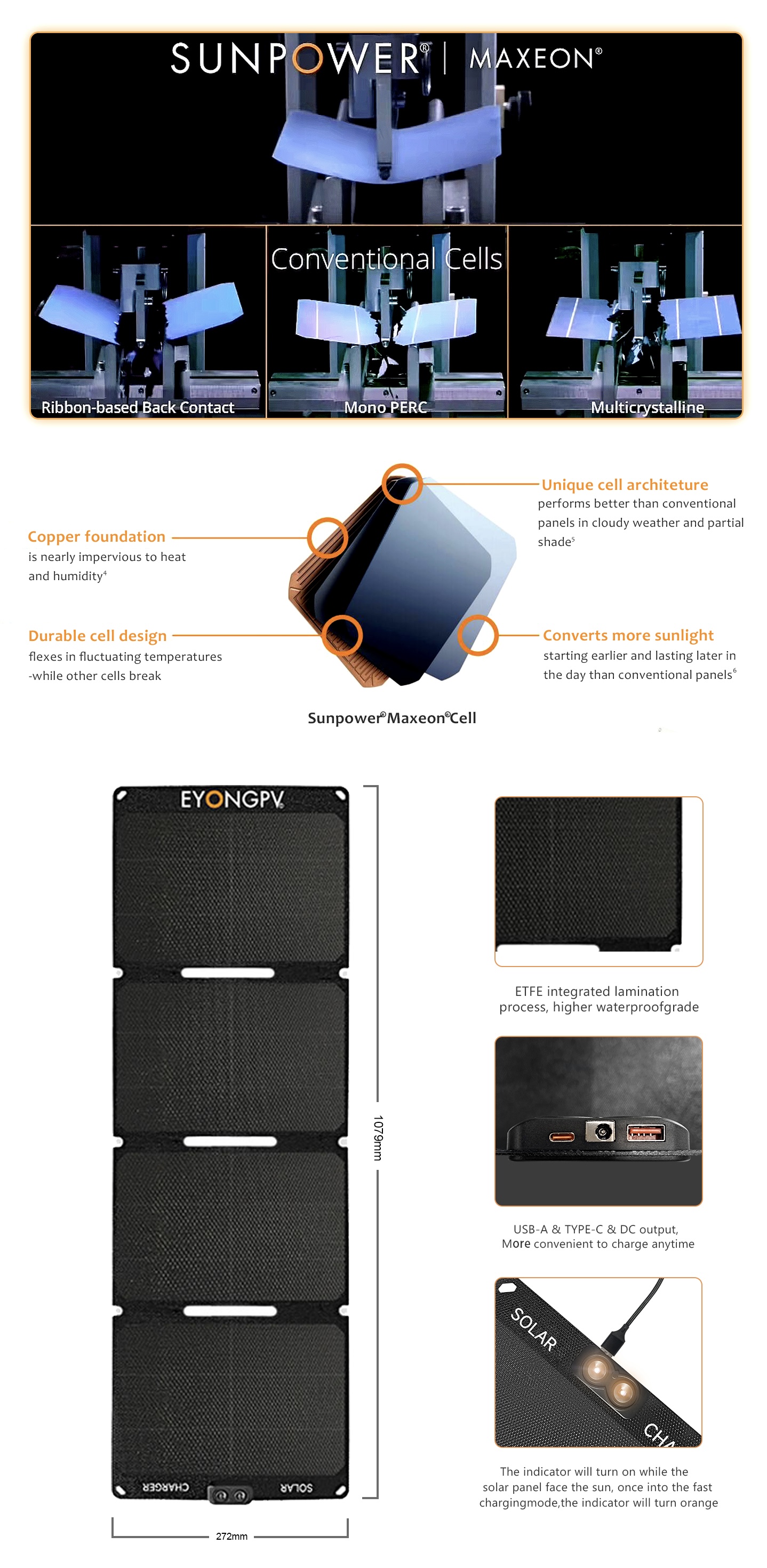

Unique cell structure: SunPower cell is built on thick and strong copper wire, As a result it can be resistant to power loss via cracking and corrosion.
●

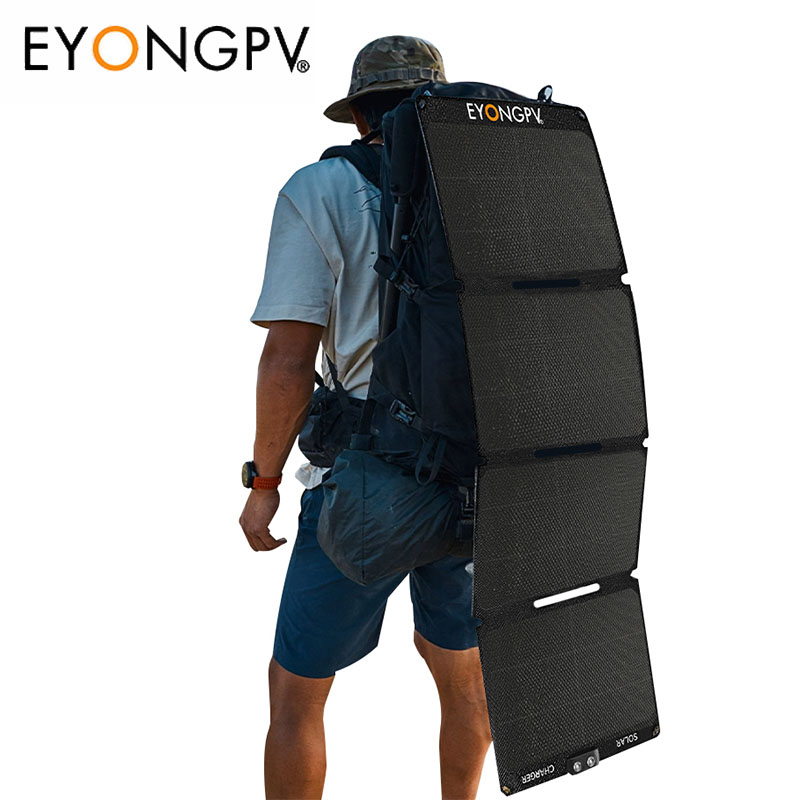

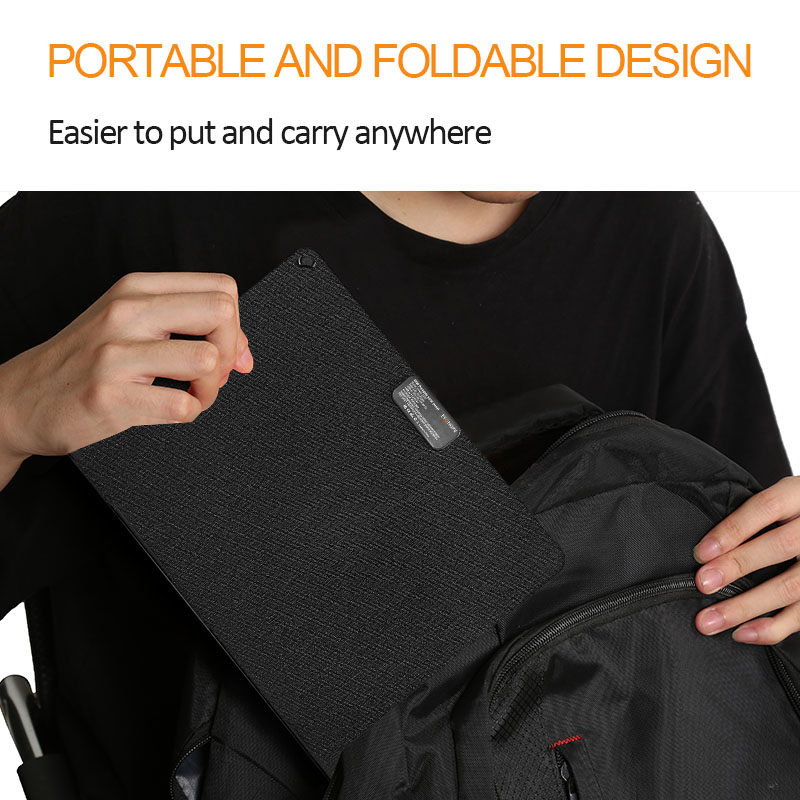

Portable design & Convenient charging: Portable and foldable design save space even be better to put and more convenient to carry and charge anywhere and anytime.
●
Reinforcement design: EyongPV unique manufacturing process incorporates composite materials that not only make the solar panels thin and hard, but also better protect the solar cells.
●

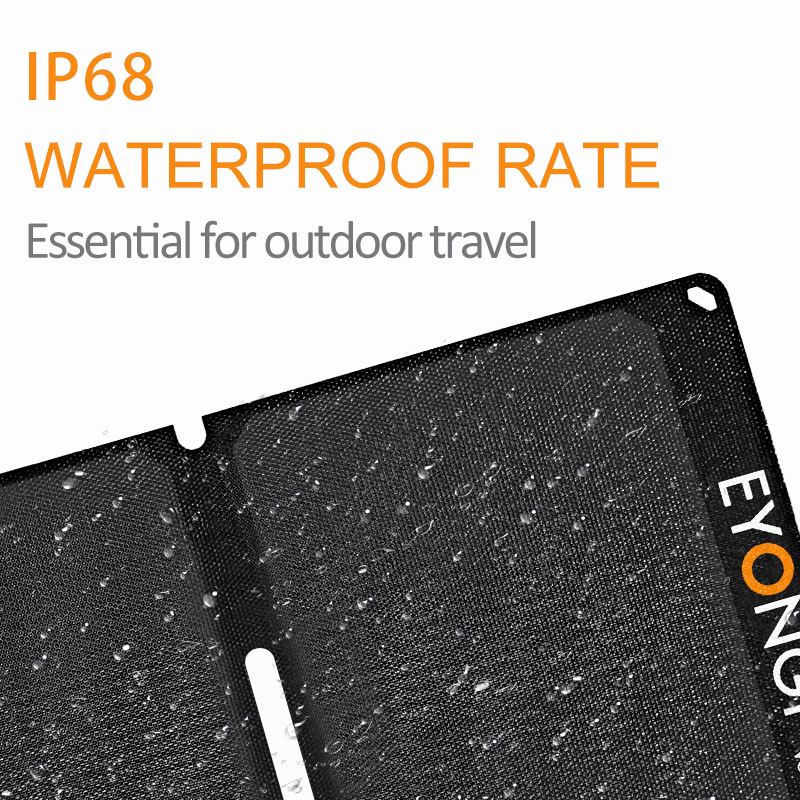

Super waterproof: It`s manufactured using an integrated lamination process.
●
Longer service life: ETFE film has excellent light transmittance and weather resistance, as well as heat, corrosion and UV resistance. Longer service life is for higher cost performance.
●
Widely applications: It can supply power to Mobile phone, Vehicle power supply, Refrigerator, Portable energy storage power supply , Oil exploration equipment and Marine etc.
●
Customizable designs: We can customize any Powers, Voltages, Dimensions, Shapes, Holes, Thickness, Hardness, Feature, Processing method and so on that base on customer requirements.

Inquiry now

Standard Test Conditions:	(Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc)
Maximum Power Pmax	45W
Voltage at Maximum Power Point (Vmpp)	22V
Current at Maximum Power Point (Impp)	2.04A
Open Circuit Voltage (Voc)	26.4V
Short Circuit Current (Isc)	2.2A
Operating Temperature	-20℃ ~ +65℃
Max System Voltage (IEC/UL)	700V DC
Temperature Coefficient of Isc	(+0.06% /ºC)
Temperature Coefficient of Voc	(-0.33% /ºC)
Temperature Coefficient of Pmax	(-0.41% /ºC)

Cell Type	SunPower solar cell
Cell Size	125 x 125mm

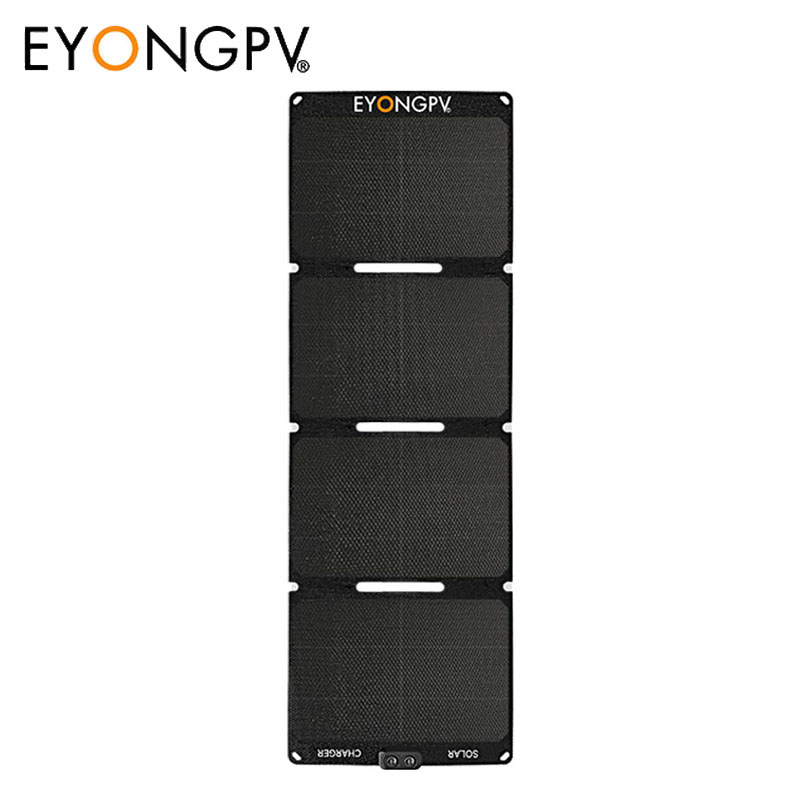

Opened Size	1079 x 272mm

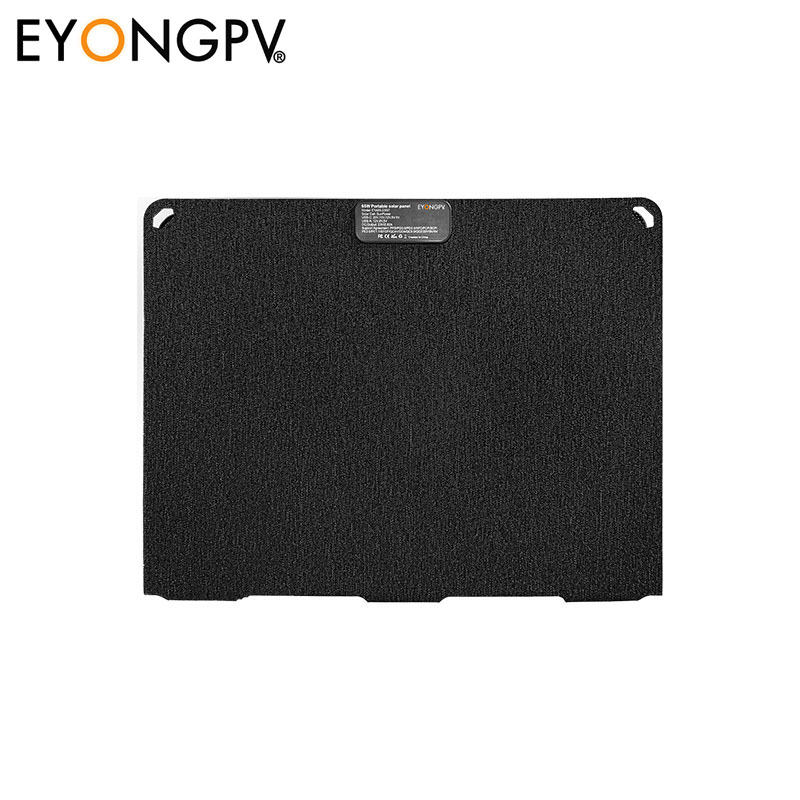

Folded size	282 x 272mm
No. of Folding	4 = 1 x 4
Weight	0.75 KG
Surface Material	High performance corrosion resistant ETFE
Output Ports	USB-A & Type-C & DC
Accessories	DC cable + DC Adapters + Carabiners
Certifications	CE, FCC, ROHS, REACH

Specification
