EYF80-20SP2H

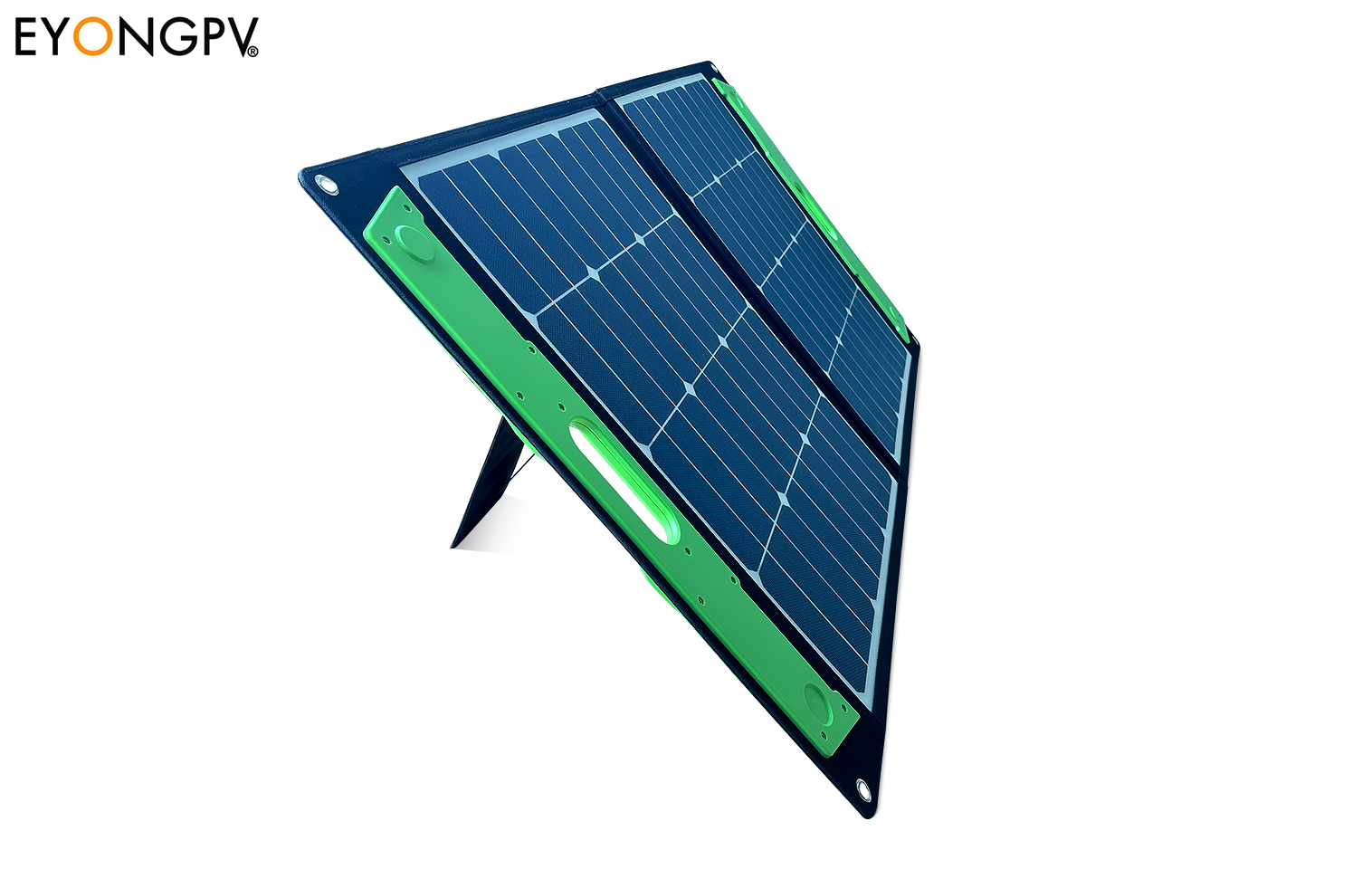

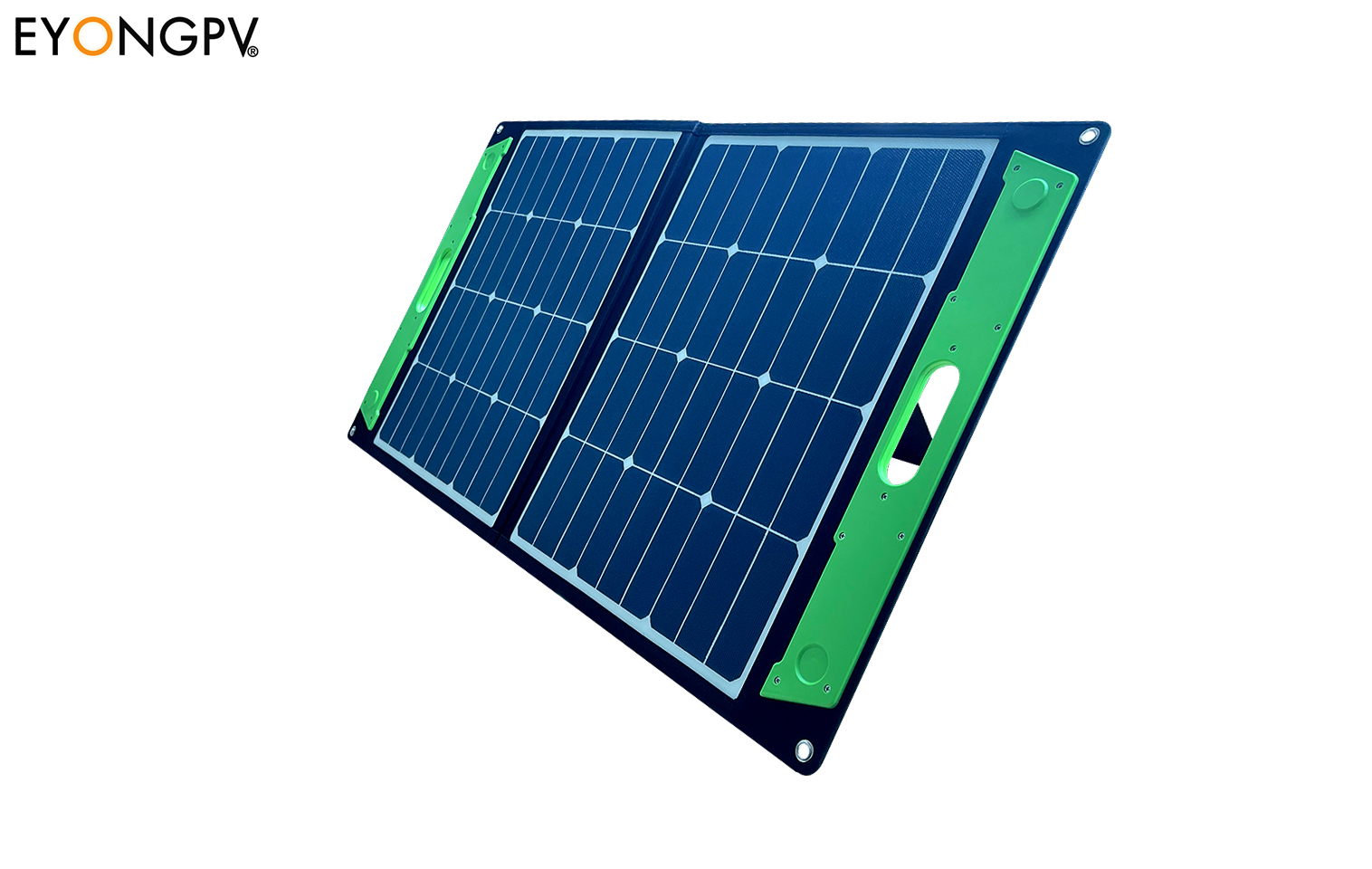

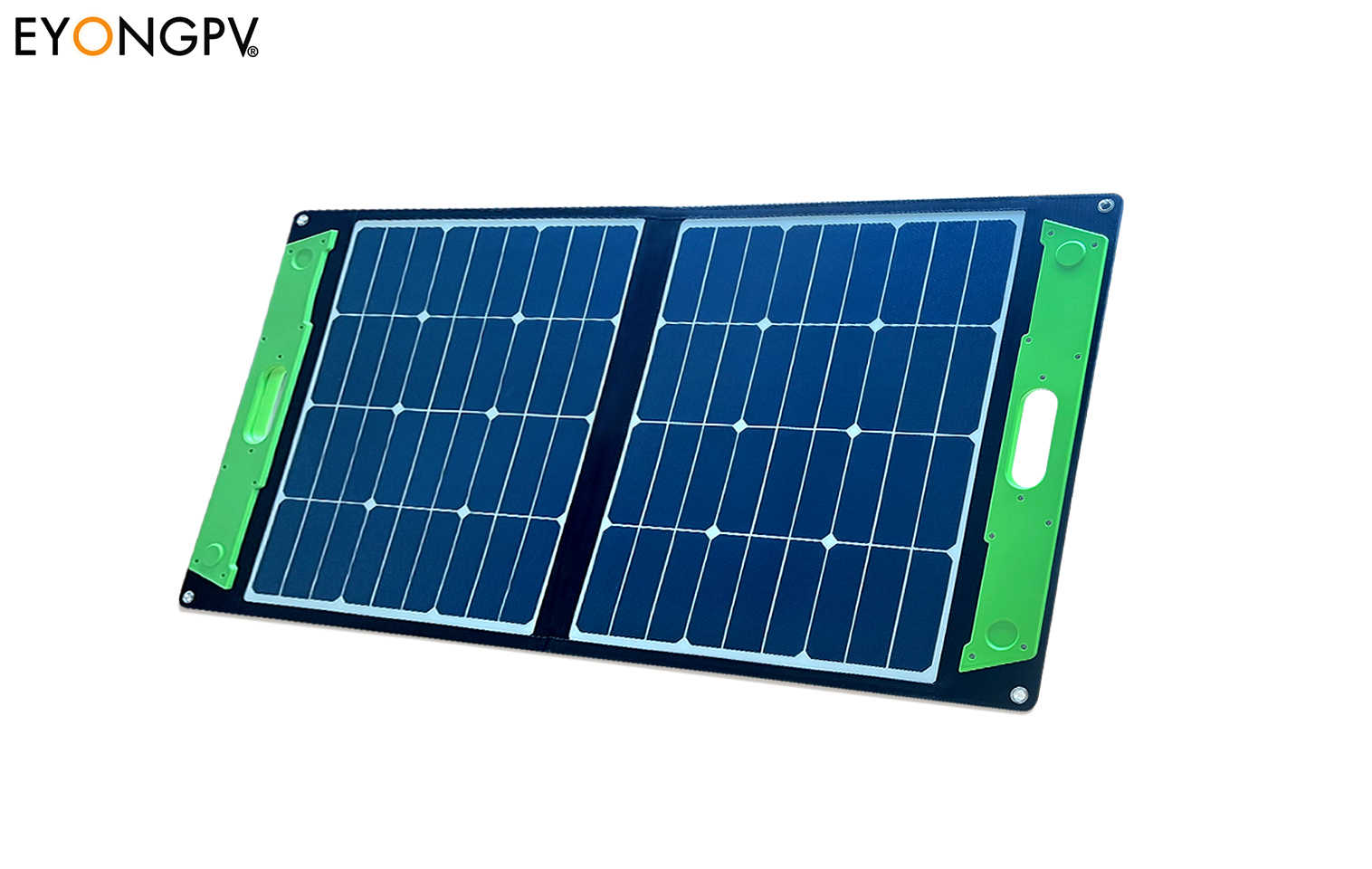

80W 2Folds Sunpower Mono Foldable Folding Portable ETFE Solar Panel Charger Kit with Handles

●
Powerful power output: SunPower cells are the #1 choice for customers due to the combination of high efficiency and ruggedness.
●
Unique cell structure: SunPower cell is built on thick and strong copper wire, As a result it can be resistant to power loss via cracking and corrosion.
●
Portable & Charging: Portable and foldable design save space even be better to put and easier to carry anywhere. Built-in bracket design is better for charging anytime, anywhere.
●
Reinforcement design: EyongPV unique manufacturing process combines polymer materials to make solar panels thin and hard.
●
Super waterproof: Cloth and zip are used waterproofing materials.
●
Longer service life: ETFE film has excellent light transmittance and weather resistance, as well as heat, corrosion and UV resistance. Longer service life is for higher cost performance.
●
Widely applications: It can supply power to Mobile phone, Vehicle power supply, Refrigerator, Portable energy storage power supply , Oil exploration equipment and Marine etc.
●
Customizable connectors: The regular output connector is Anderson, we also can customise any connectors according to your requirements, including the length of the wire.

Inquiry now

Standard Test Conditions:	(Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc)
Maximum Power Pmax	80W
Voltage at Maximum Power Point (Vmpp)	19.8V
Current at Maximum Power Point (Impp)	4.04A
Open Circuit Voltage (Voc)	23.6V
Short Circuit Current (Isc)	4.36A
Operating Temperature	-20℃ ~ +65℃
Max System Voltage (IEC/UL)	700V DC
Temperature Coefficient of Isc	(+0.06% /ºC)
Temperature Coefficient of Voc	(-0.33% /ºC)
Temperature Coefficient of Pmax	(-0.41% /ºC)

Cell Type	SunPower solar cell
Cell Size	125 x 125mm

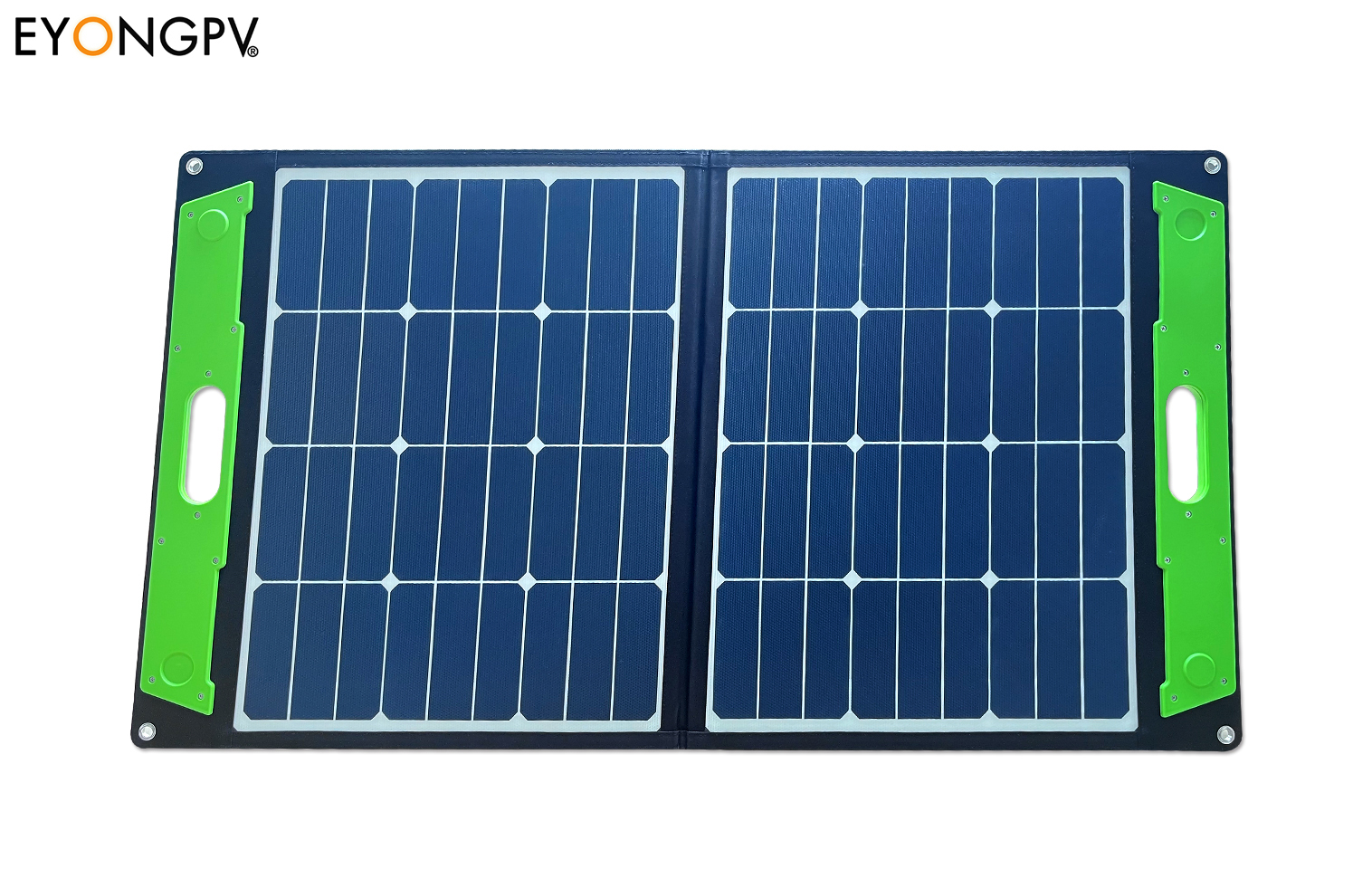

Opened Size	1040 x 560mm

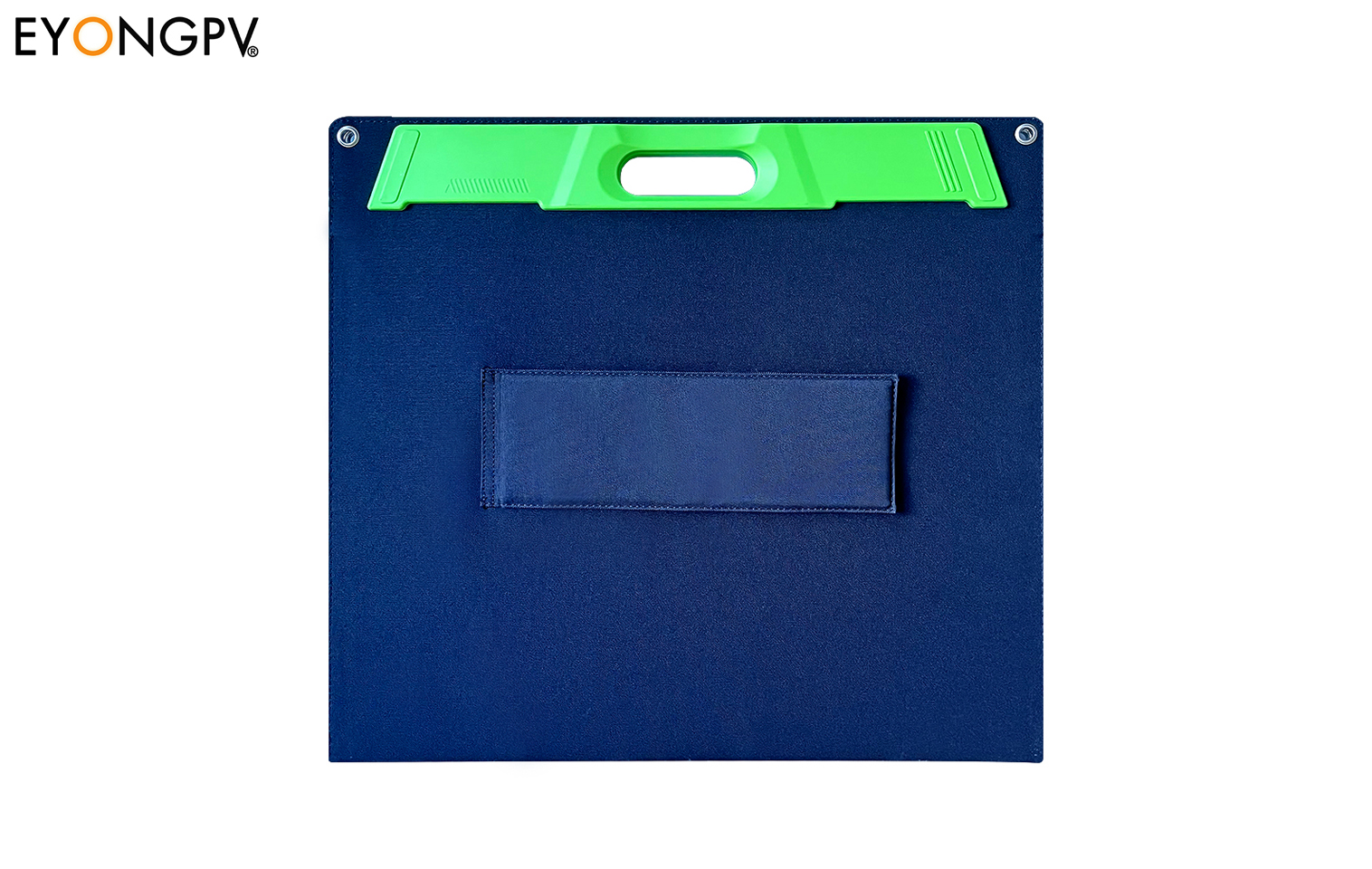

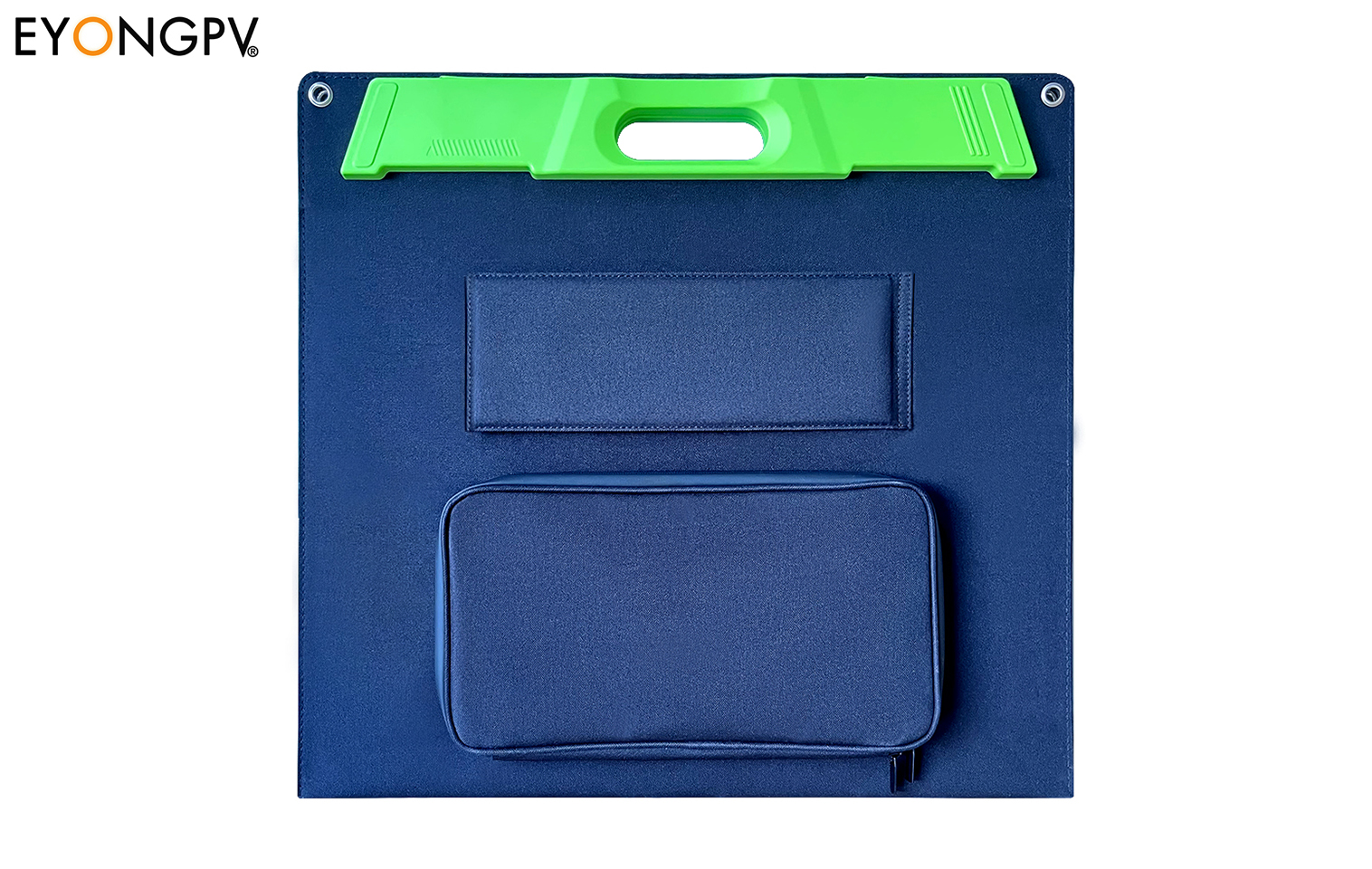

Folded size	520 x 560mm
No. of Folding	2 = 1 x 2
Weight	3.15 KG
Bag Material	900D
Surface Material	High performance corrosion resistant ETFE
Junction Box	IP67 Rated
Type of Connector	Double USB ports + Type-C + Anderson

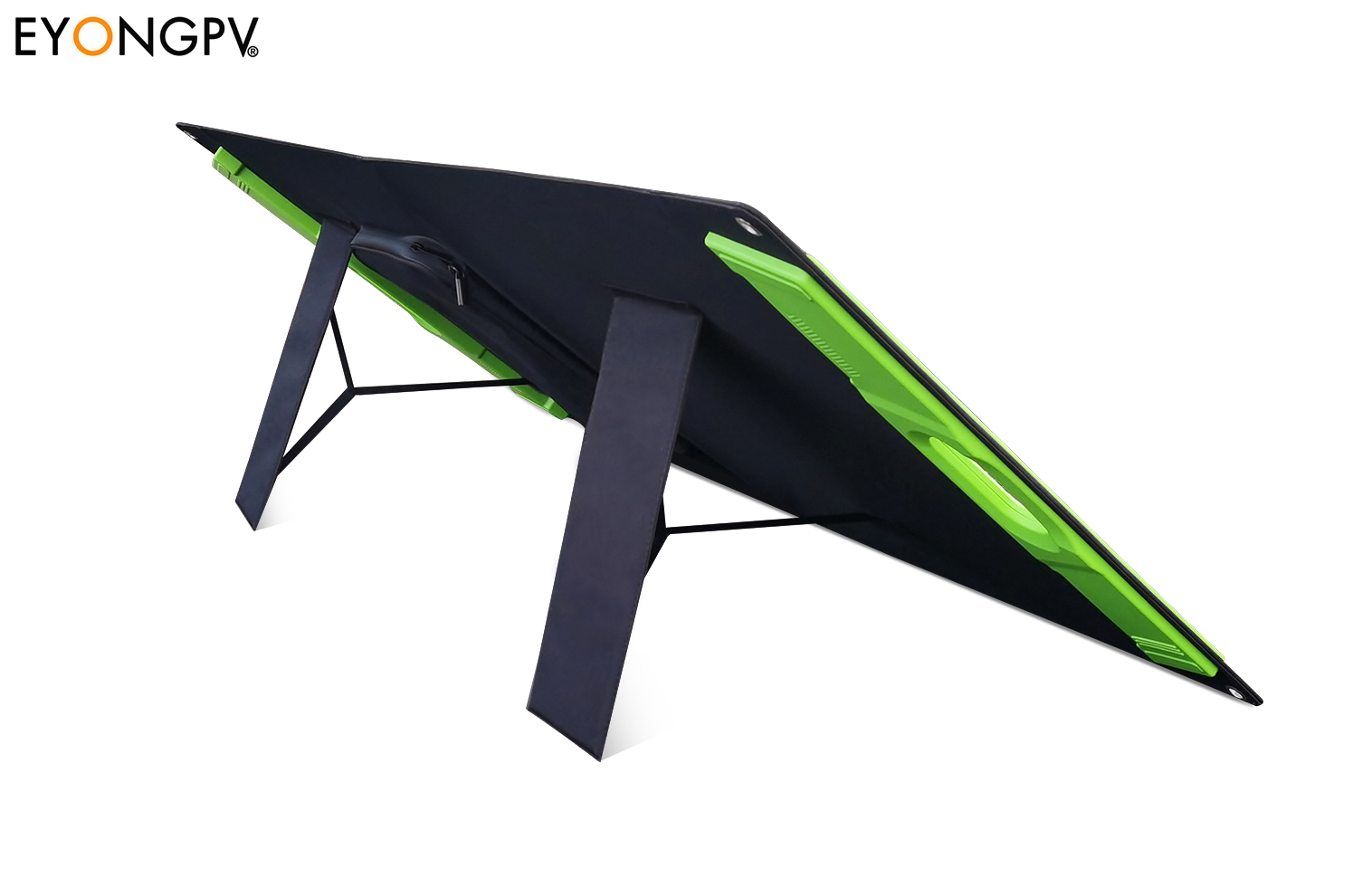

More functions	Kickstands
Certifications	CE, FCC, ROHS, REACH

Specification
