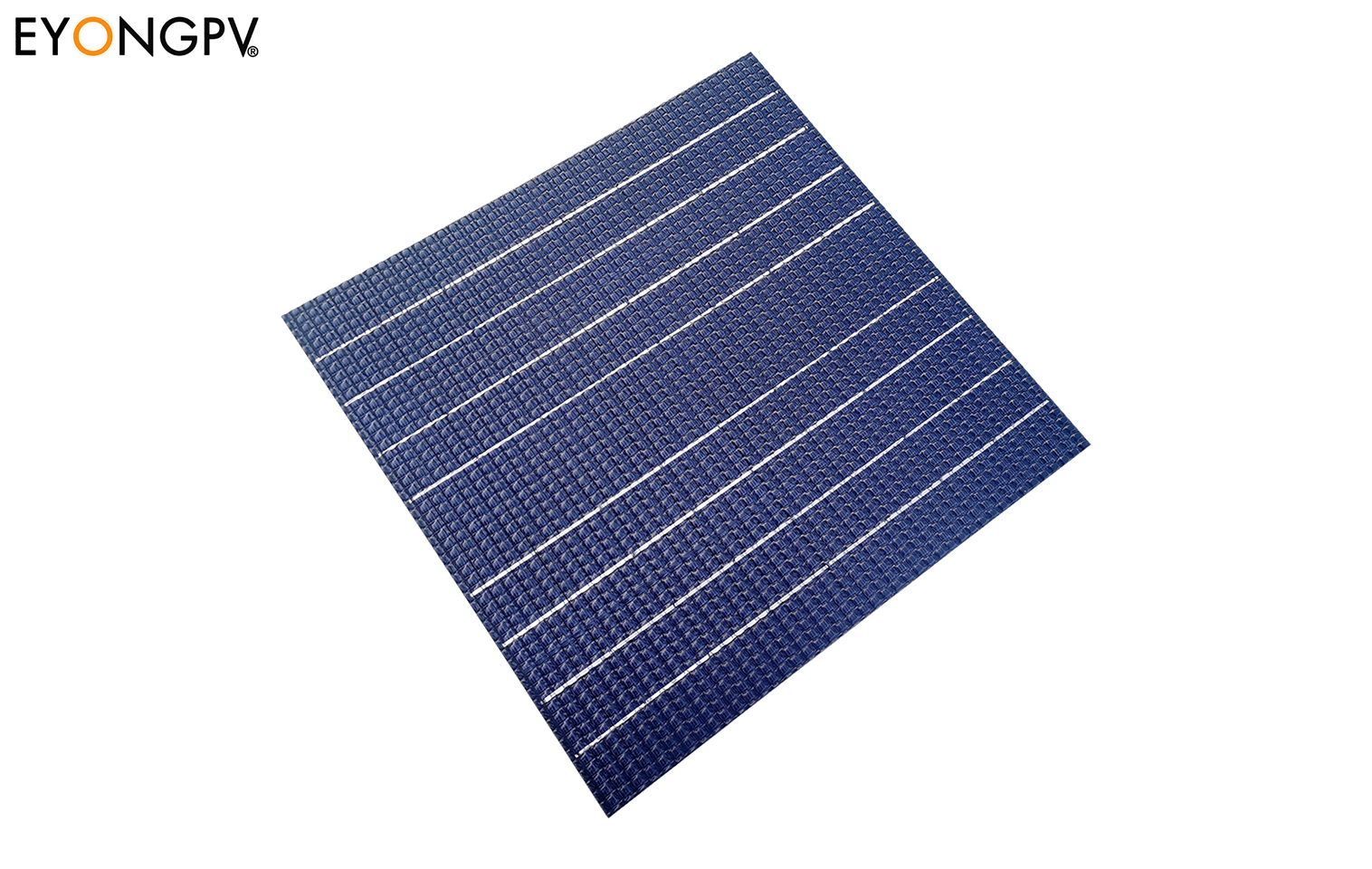

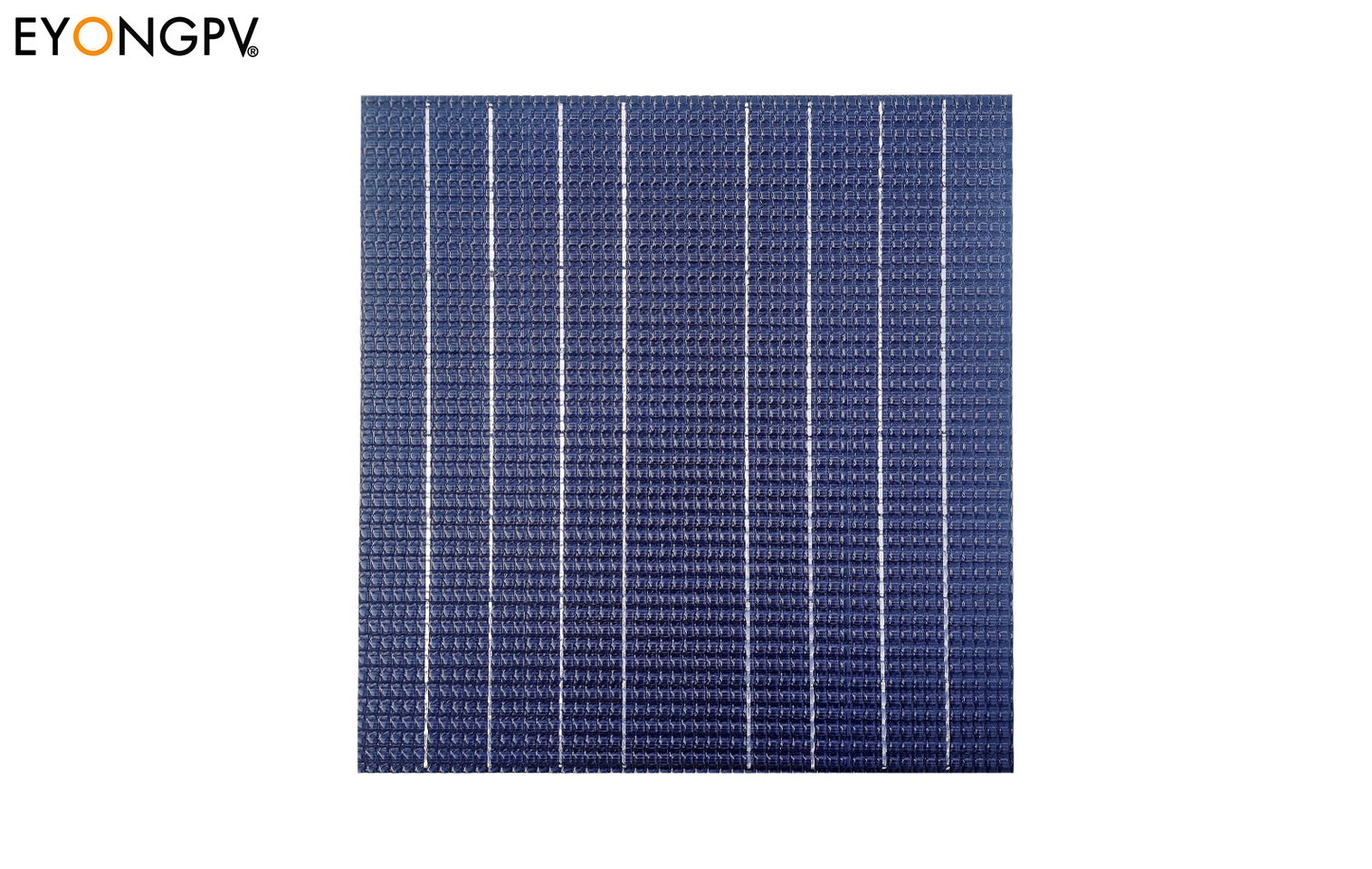

EYE20-16M

20W Custom Mono ETFE Mini Monitor Light Solar Panel

●
Powerful power output: Made of grade A monocrystalline solar cells with much higher efficiency that make sure more stable and durable
●

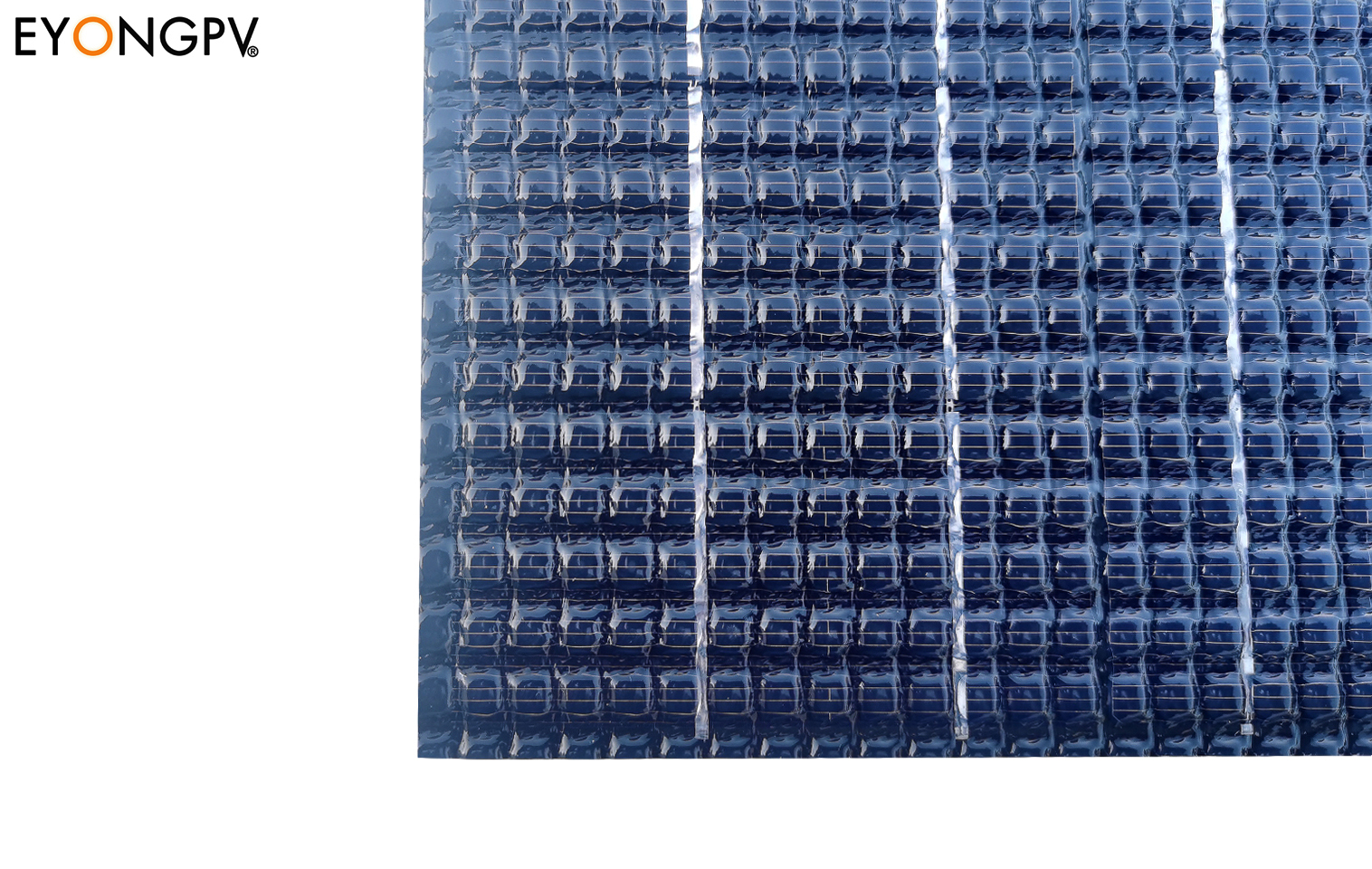

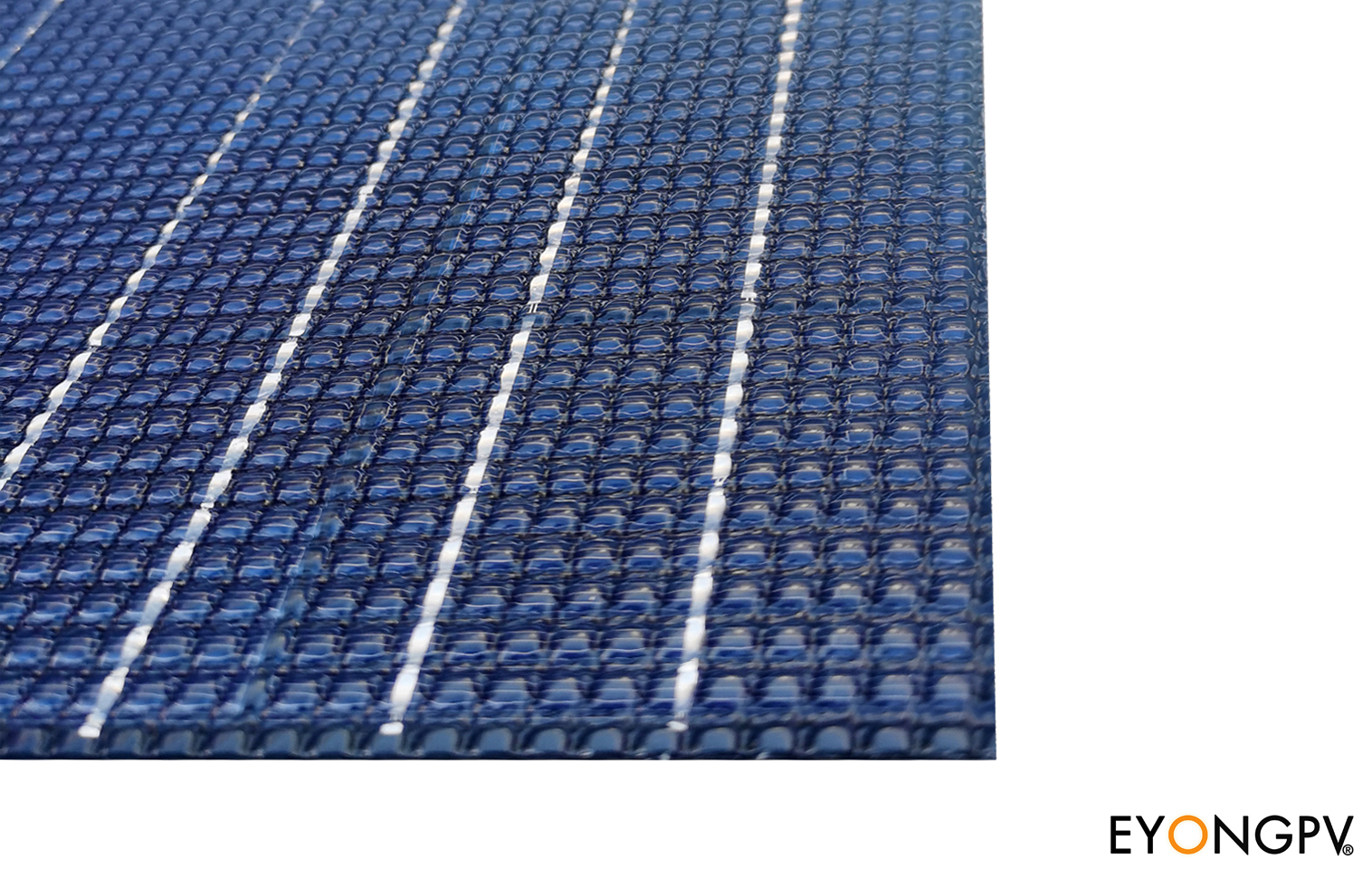

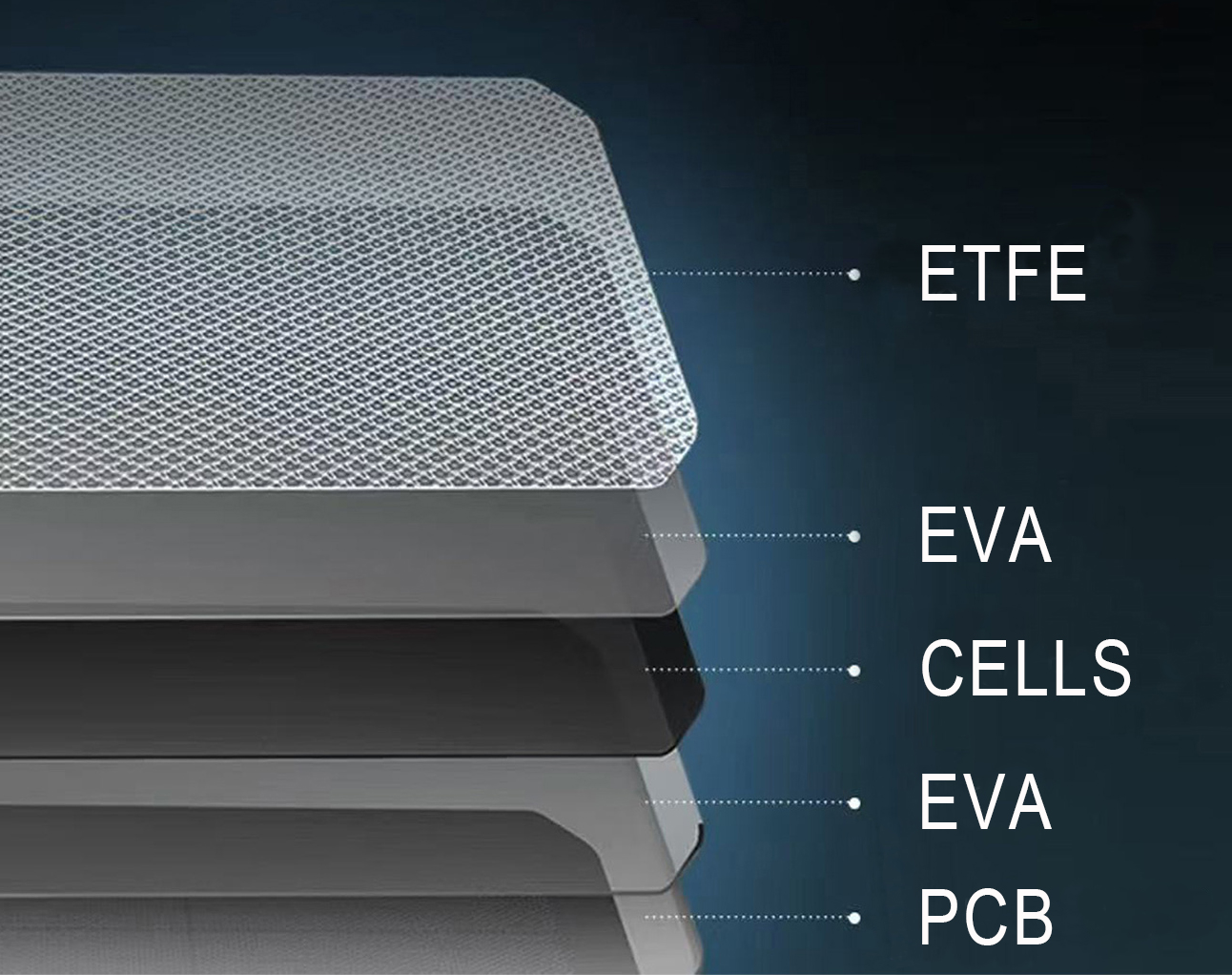

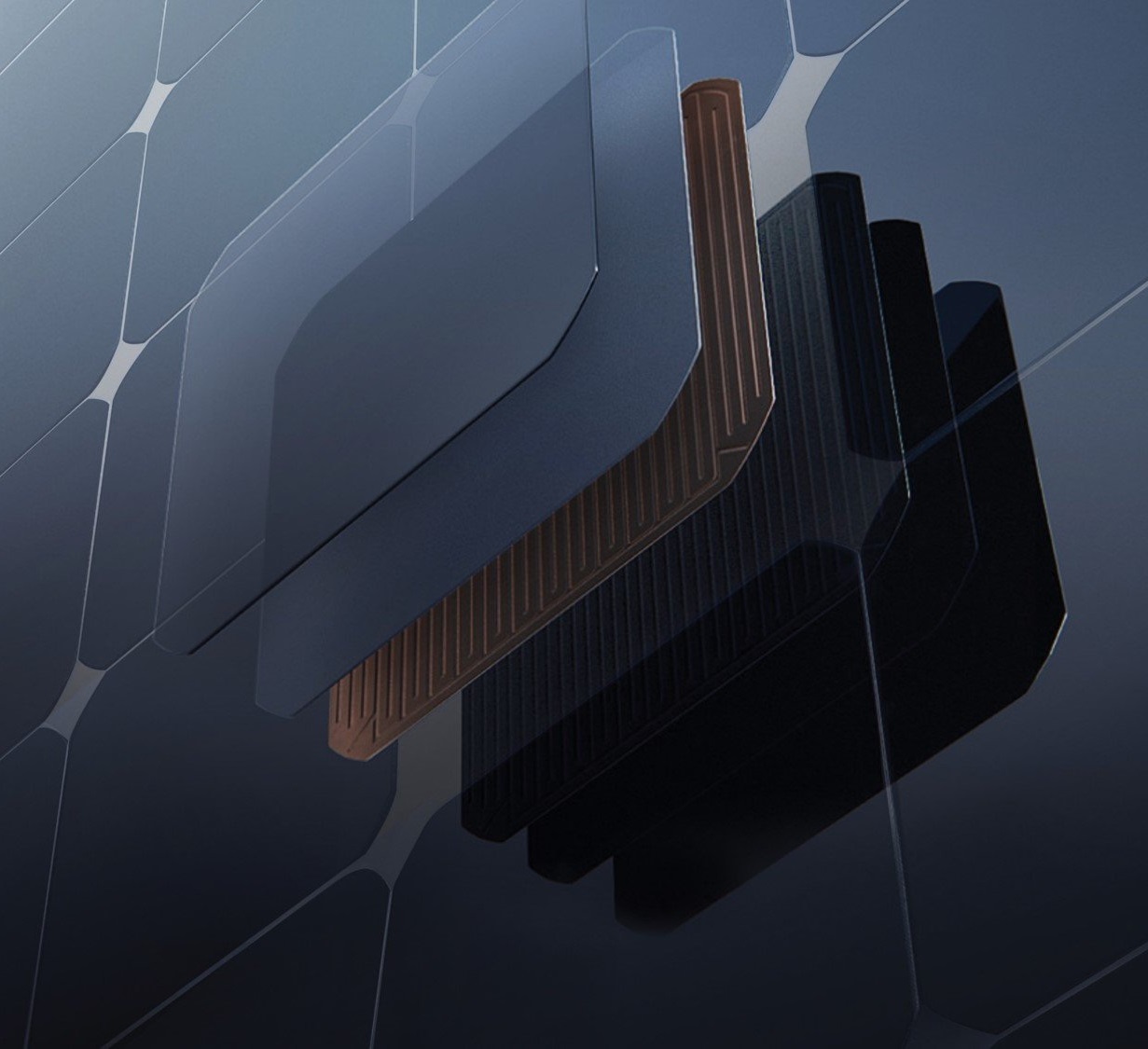

Premium ETFE film: This film features superior light transmittance and weatherproof performance, and is also heat, corrosion, and UV resistant. This material surfaces are easy to clean, ensures the best performance day after day. all for a cost-effective price.
●
Excellent weak light performance: Excellent performance under low light environments (mornings, evenings, rainy and cloudy days)
●
Widely applications: This kind of solar panel application field is particularly wide, such as Solar Monitors, Solar lawn lamps, Solar wall lamps, Solar floor tile lamps, Solar flashlights, Solar charger, Solar christmas lamps, Solar airplanes, Solar toys, solar buoys and so on.
●

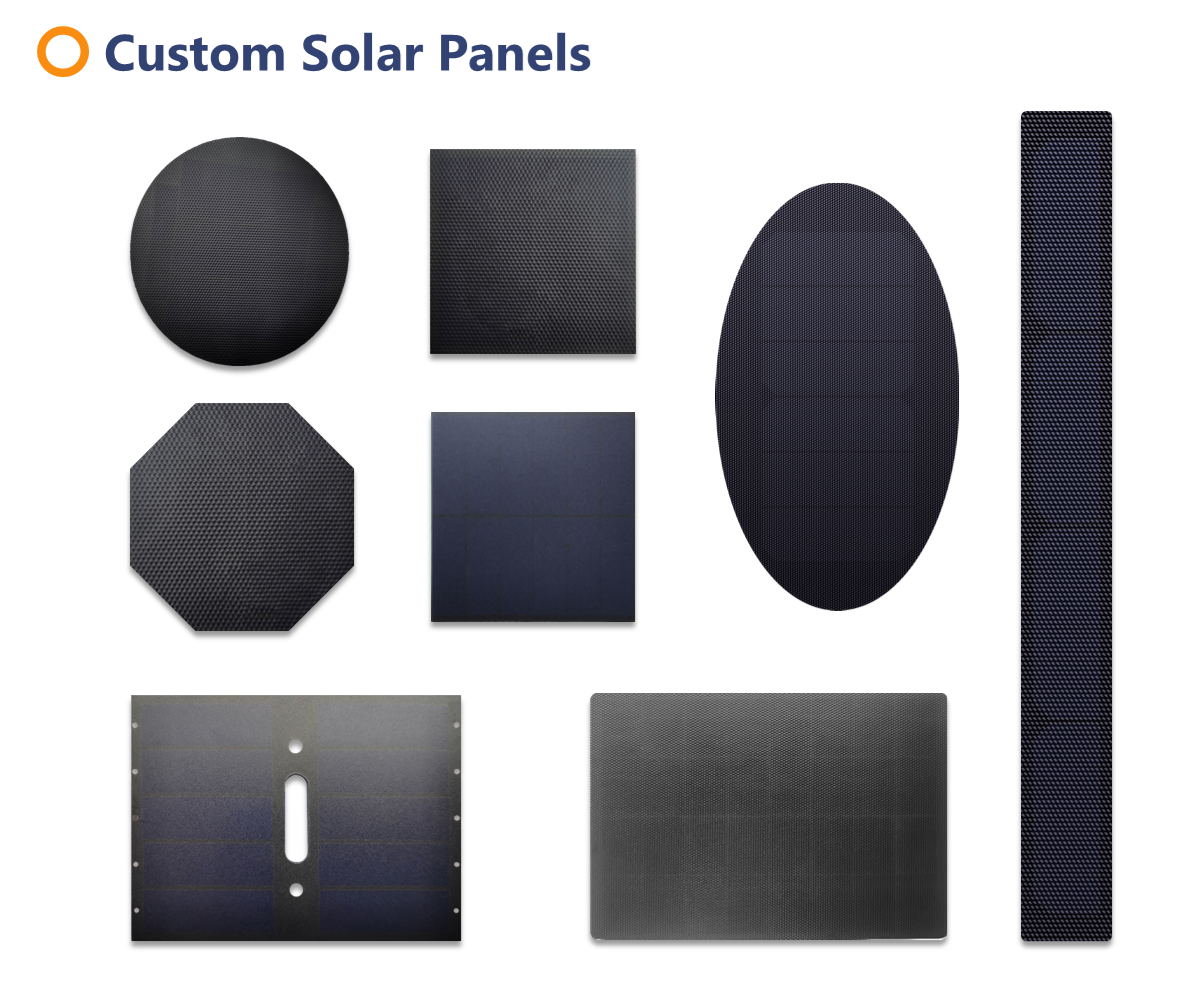

Customizable designs: We can customize any Powers, Voltages, Dimensions, Shapes, Holes, Thickness, Hardness, Feature, Processing method and so on that base on customer requirements.

Inquiry now

Standard Test Conditions:	(Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc)
Maximum Power Pmax	20W
Voltage at Maximum Power Point (Vmpp)	16V
Current at Maximum Power Point (Impp)	1.25A
Open Circuit Voltage (Voc)	19.2V
Short Circuit Current (Isc)	1.37A
Operating Temperature	-20℃ ~ +65℃
Max System Voltage (IEC/UL)	300V DC
Temperature Coefficient of Isc	(+0.06% /ºC)
Temperature Coefficient of Voc	(-0.33% /ºC)
Temperature Coefficient of Pmax	(-0.41% /ºC)

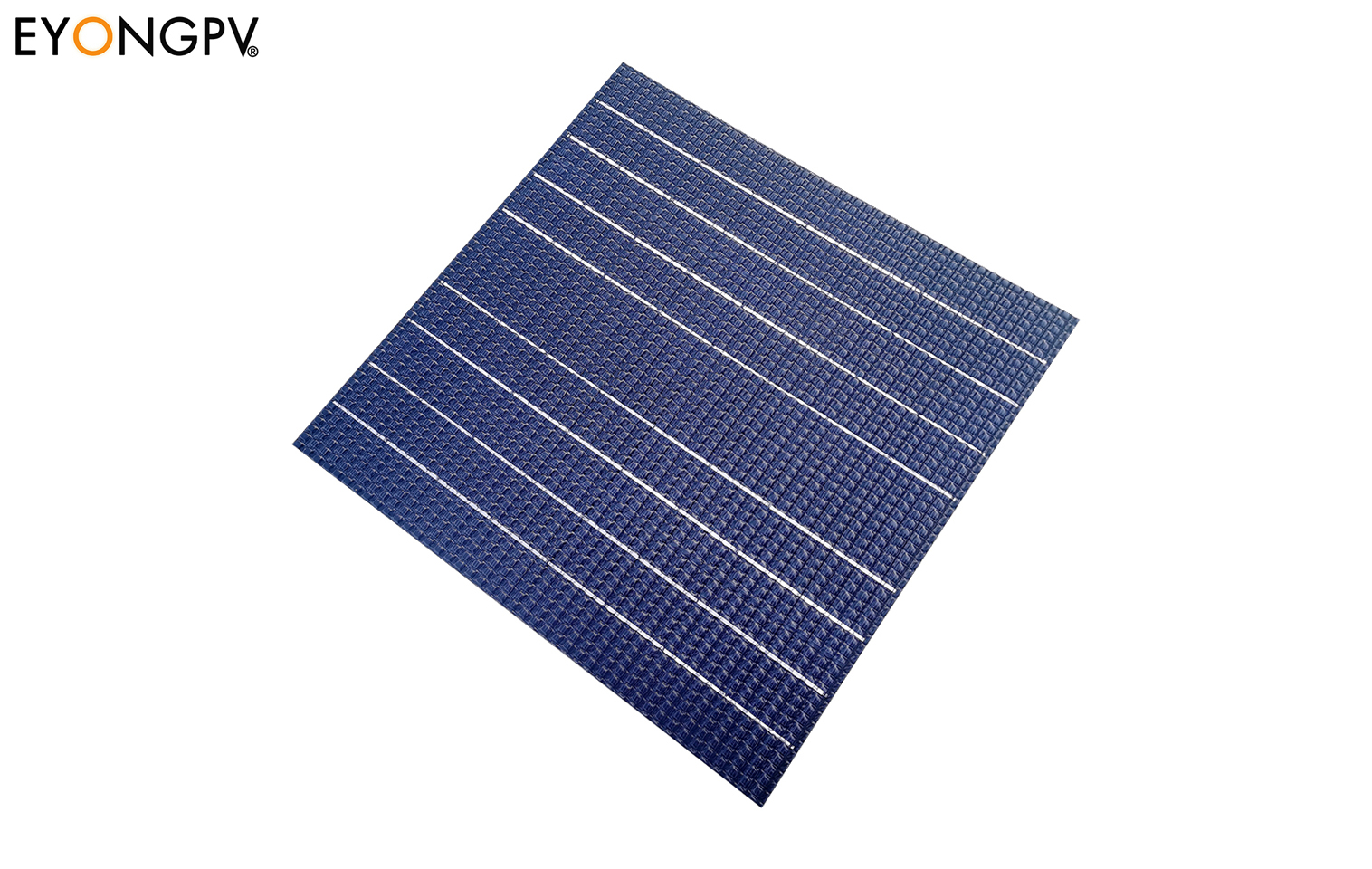

Cell Type	Monocrystalline solar cell
Cell Size	158.75 x 158.75mm
Size	334 x 324mm
Surface Material	High performance corrosion resistant ETFE
No. of Folding	32 = 4 x 8
Weight	0.5 KG
Certifications	CE, FCC, ROHS, REACH
