EYE50-18SPX

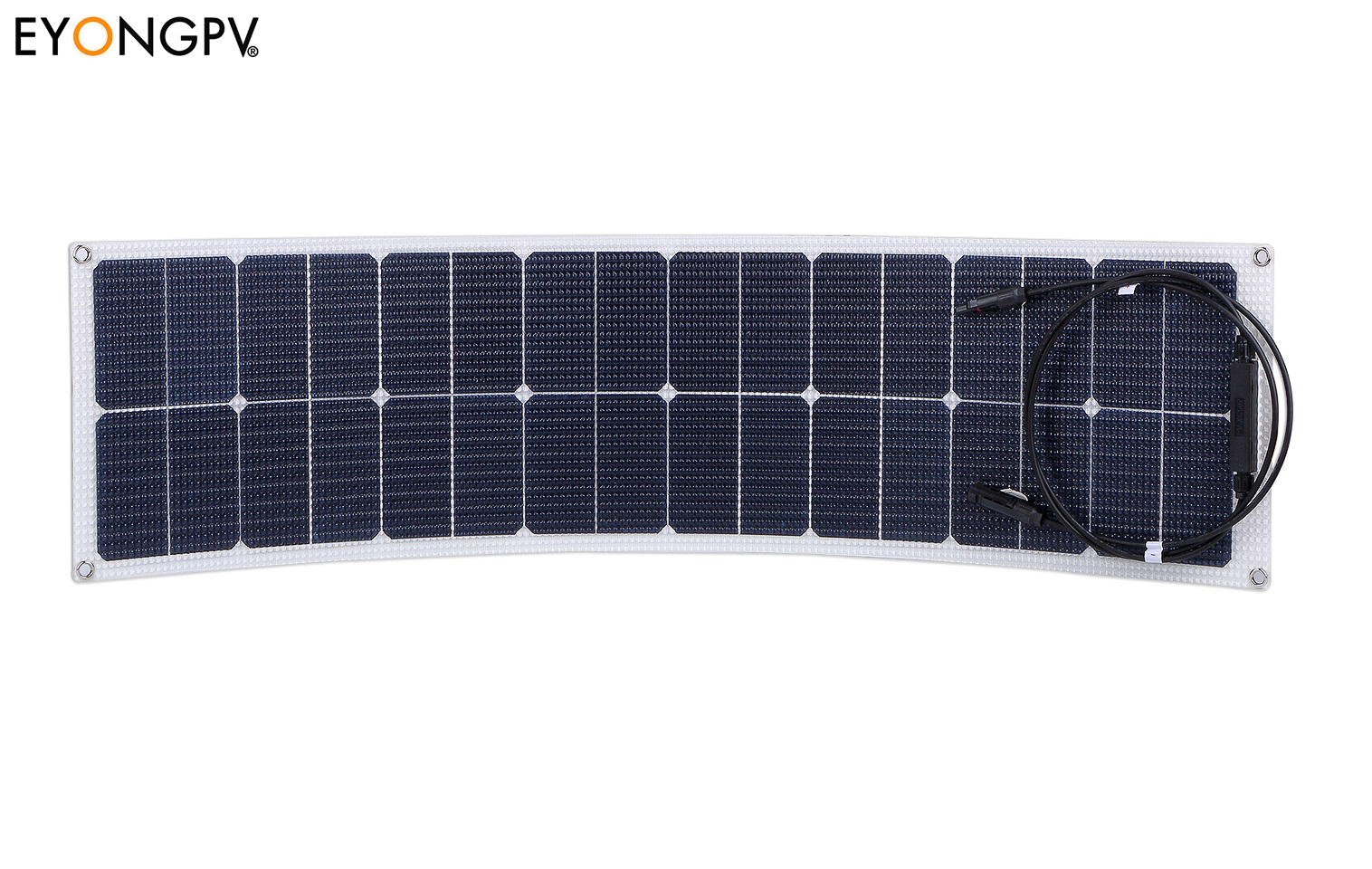

50W Flexible Bendable Solar Panel for Roof Marine RV Cabin Van Car

●
Powerful Power Output: SunPower cells are the #1 choice for customers due to the combination of high efficiency and ruggedness.
●

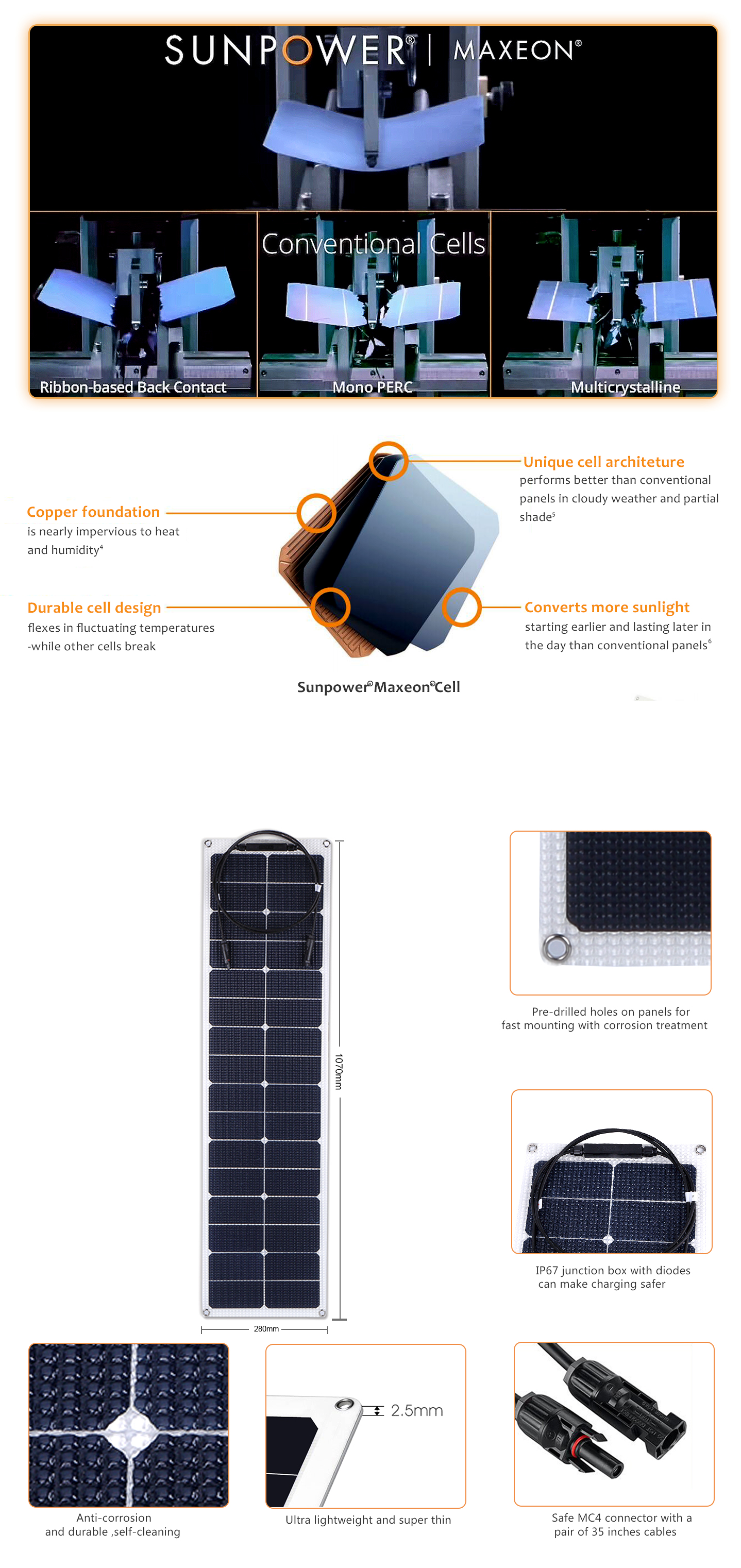

Unique Cell Structure: SunPower cell is built on thick and strong copper wire, As a result it can be resistant to power loss via cracking and corrosion.
●
Premium ETFE Film: This film features superior light transmittance and weatherproof performance, and is also heat, corrosion, and UV resistant. This material surfaces are easy to clean, ensures the best performance day after day. all for a cost-effective price.
●
Lightweight: It`s a great choice where you need big power without sacrificing fuel economy, or don`t want any extra weight on your roof that may affect your center of gravity.
●

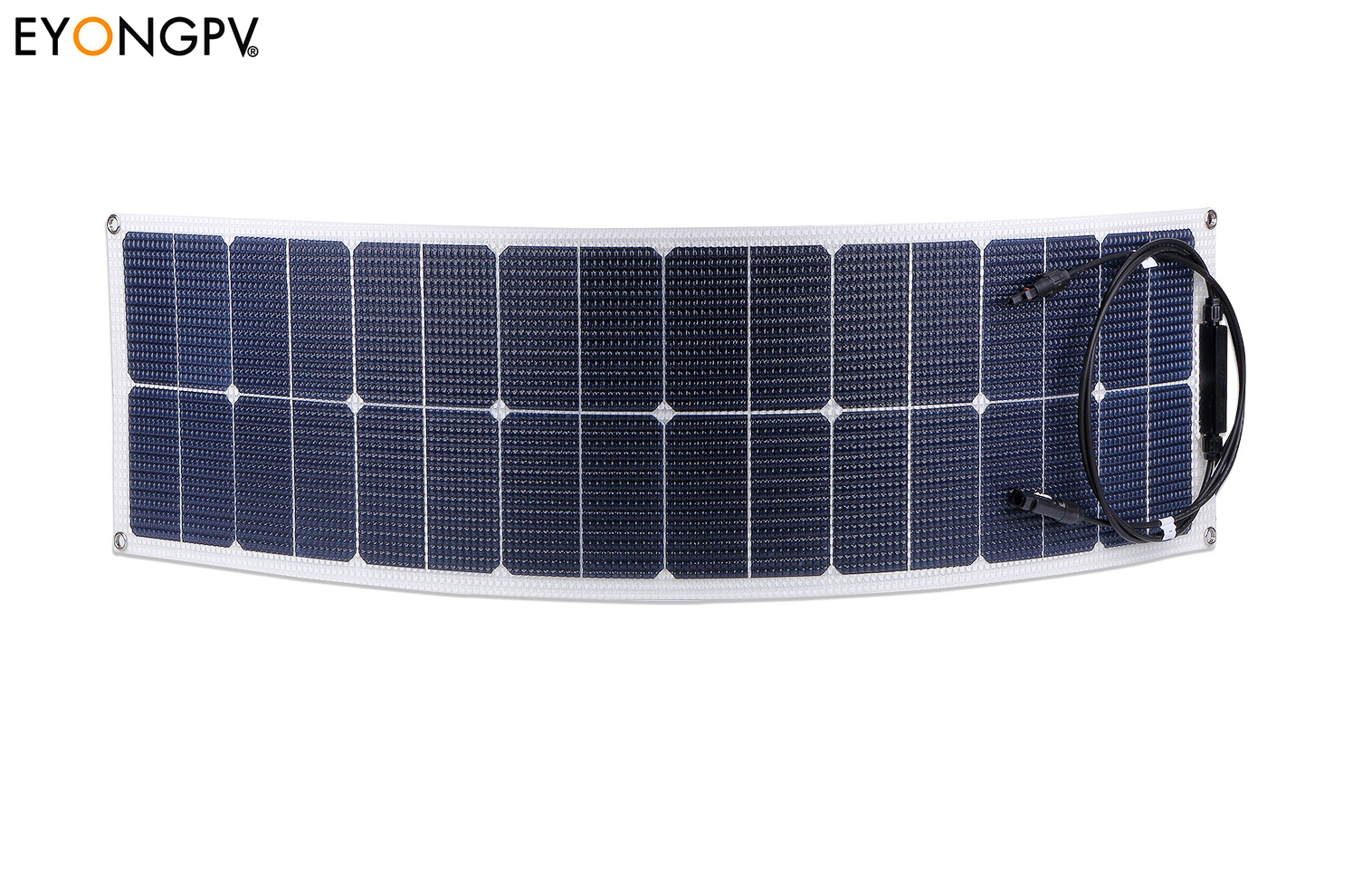

Widely Application: It can be bent to a certain extent, suitable for marine using, motorhomes, camping, sailing, boon-docking and caravans as well as curved roof or any other irregular surface.
●
Easy Installation: Can be fixed by adhesive, grommets, velcro. Can be installed without costly structural roof reinforcements. besides reinforced mounting holes at each corner for screws fixing, make it easier to hang, and remove.

Inquiry now

Standard Test Conditions:	(Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc)
Maximum Power Pmax	50W
Voltage at Maximum Power Point (Vmpp)	17.6V
Current at Maximum Power Point (Impp)	2.84A
Open Circuit Voltage (Voc)	21.2V
Short Circuit Current (Isc)	3.08A
Operating Temperature	-20℃ ~ +65℃
Max System Voltage (IEC/UL)	700V DC
Temperature Coefficient of Isc	(+0.06% /ºC)
Temperature Coefficient of Voc	(-0.33% /ºC)
Temperature Coefficient of Pmax	(-0.41% /ºC)

Cell Type	SunPower solar cell
Cell Size	125 x 125mm
Size	1070 x 280 x 2.5mm
Surface Material	High performance corrosion resistant ETFE
No. of Folding	32 = 4 x 8
Weight	0.95KG

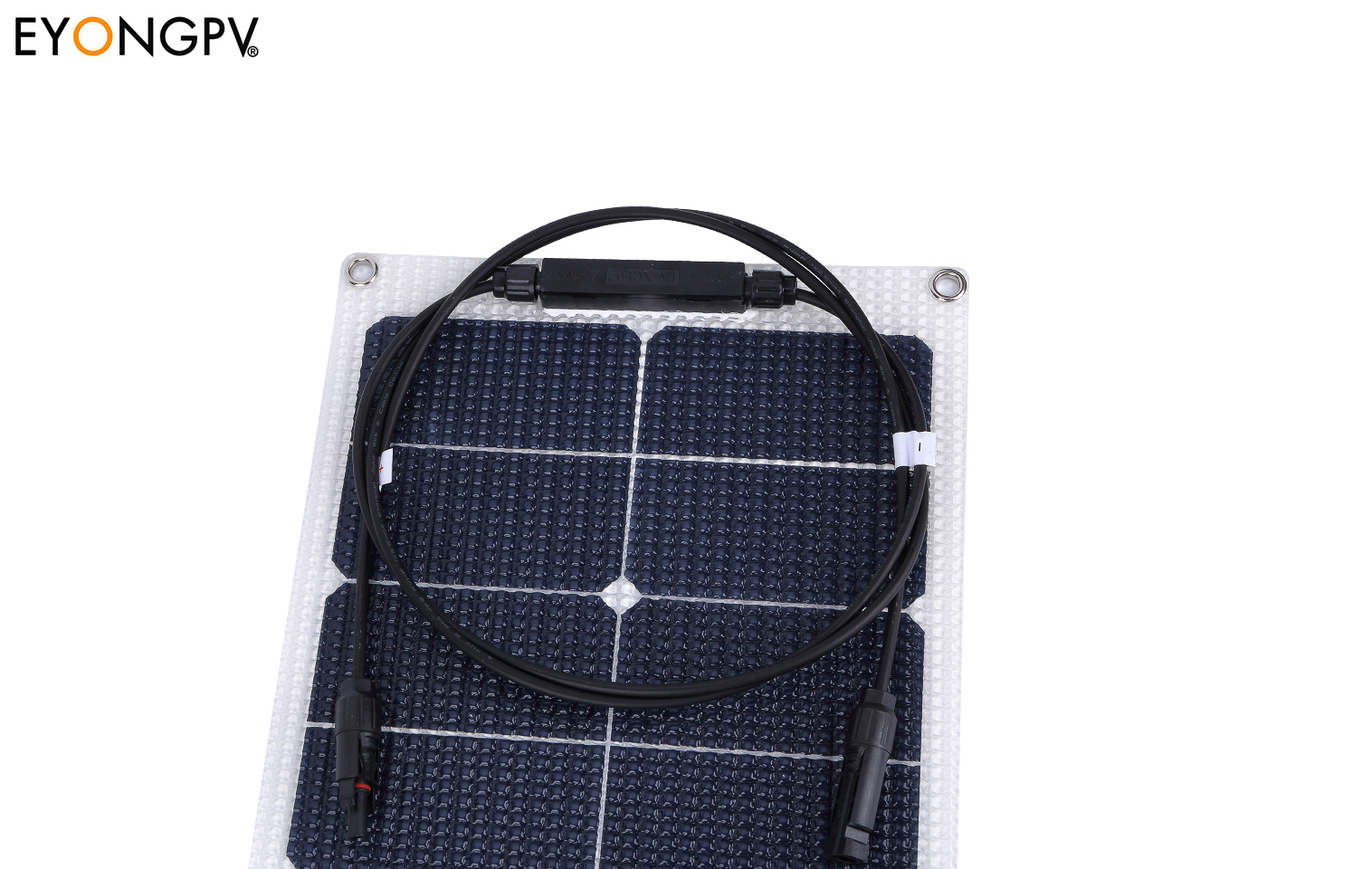

Junction Box	IP67 Rated
Type of Connector	MC4
Certifications	CE, FCC, ROHS, REACH

Specification
