EYE9-4.5SP

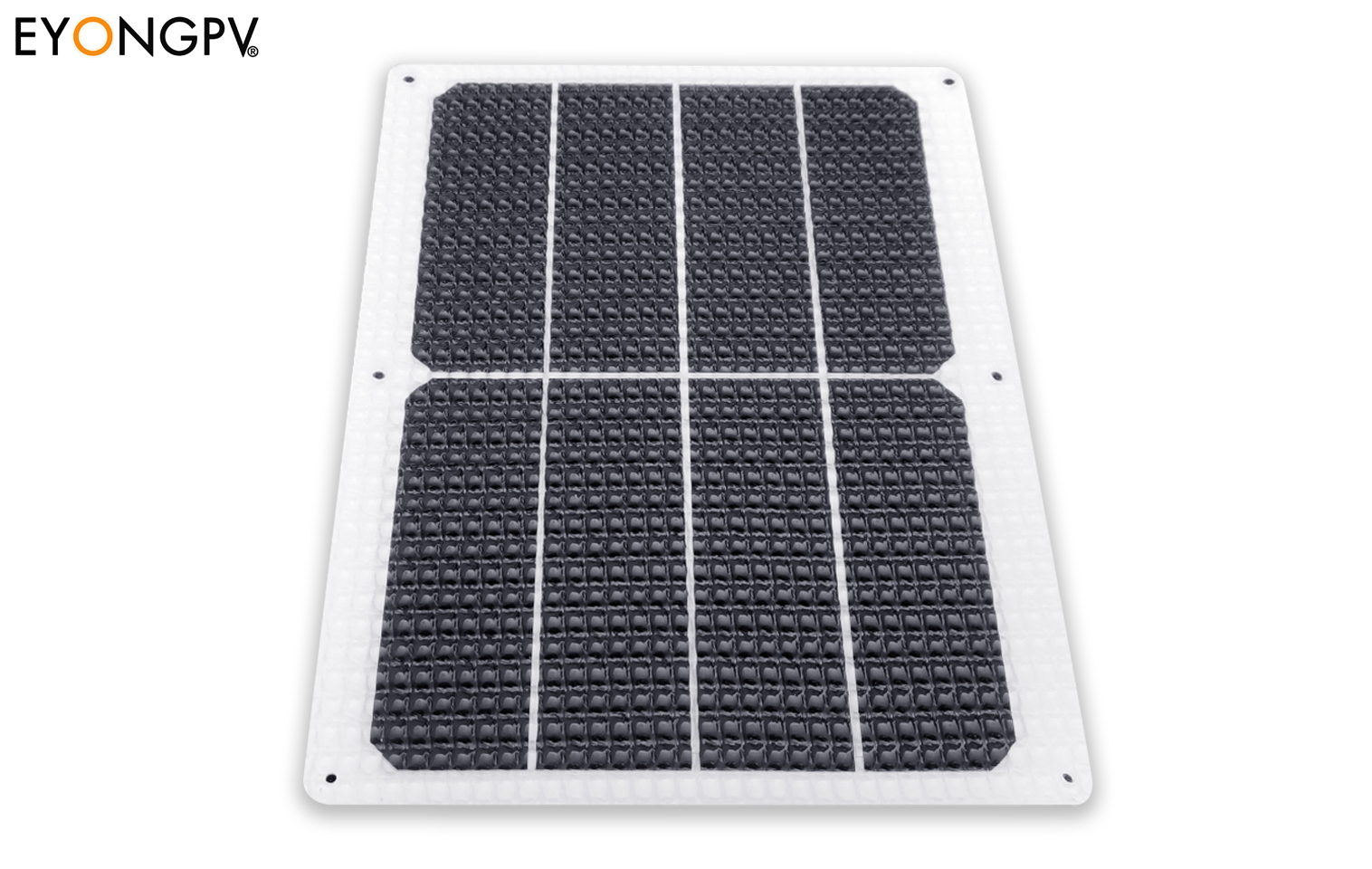

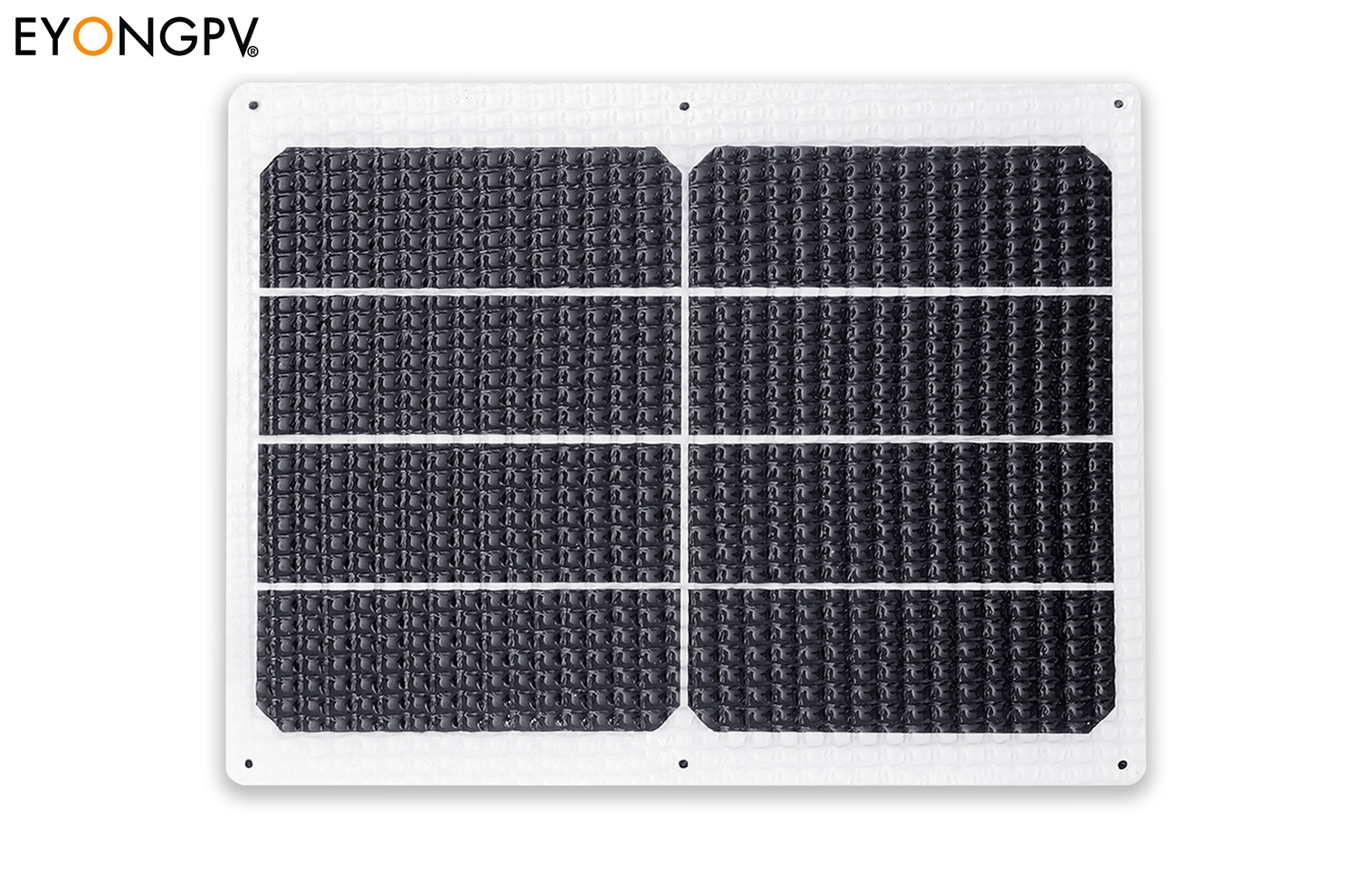

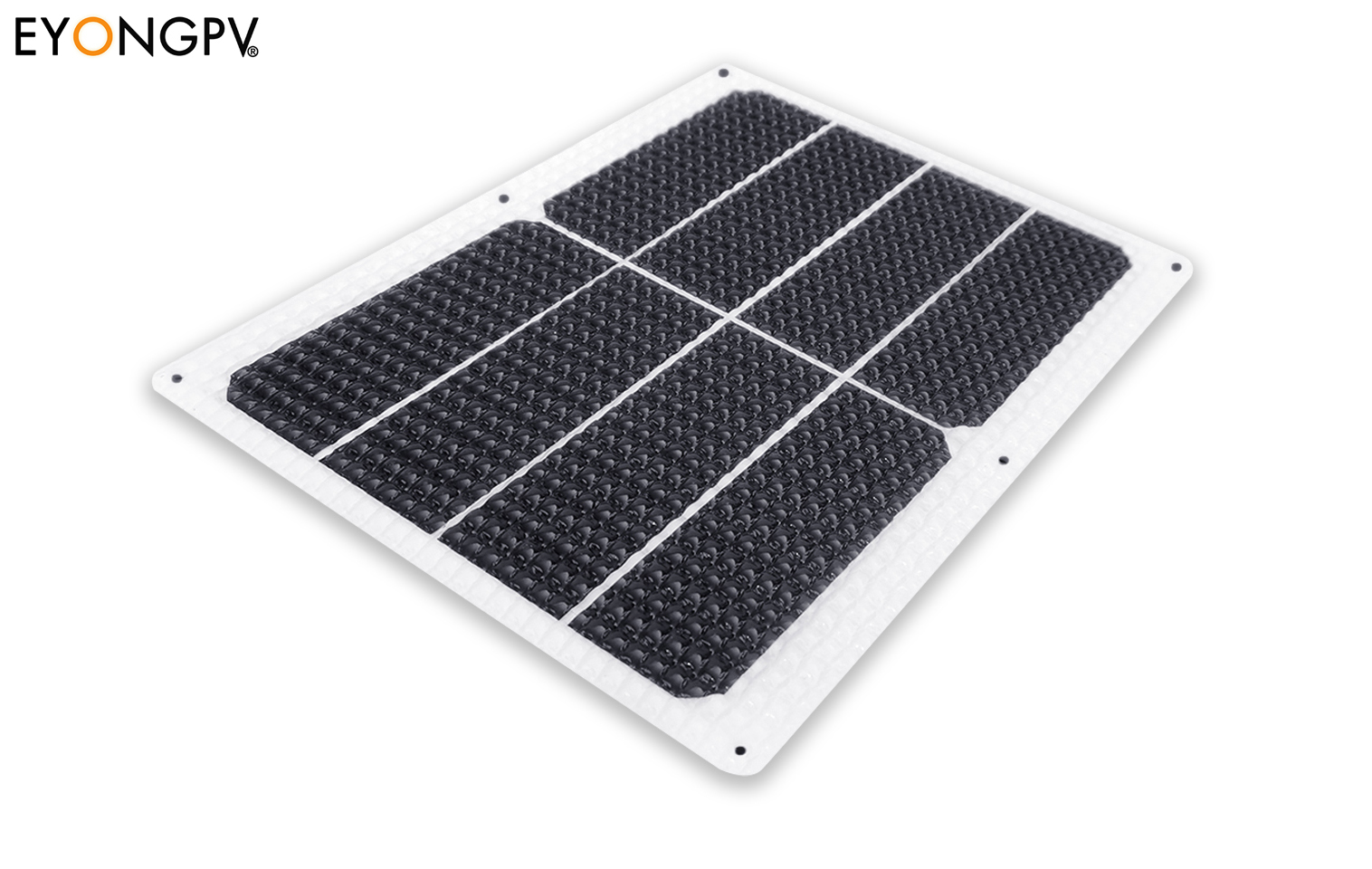

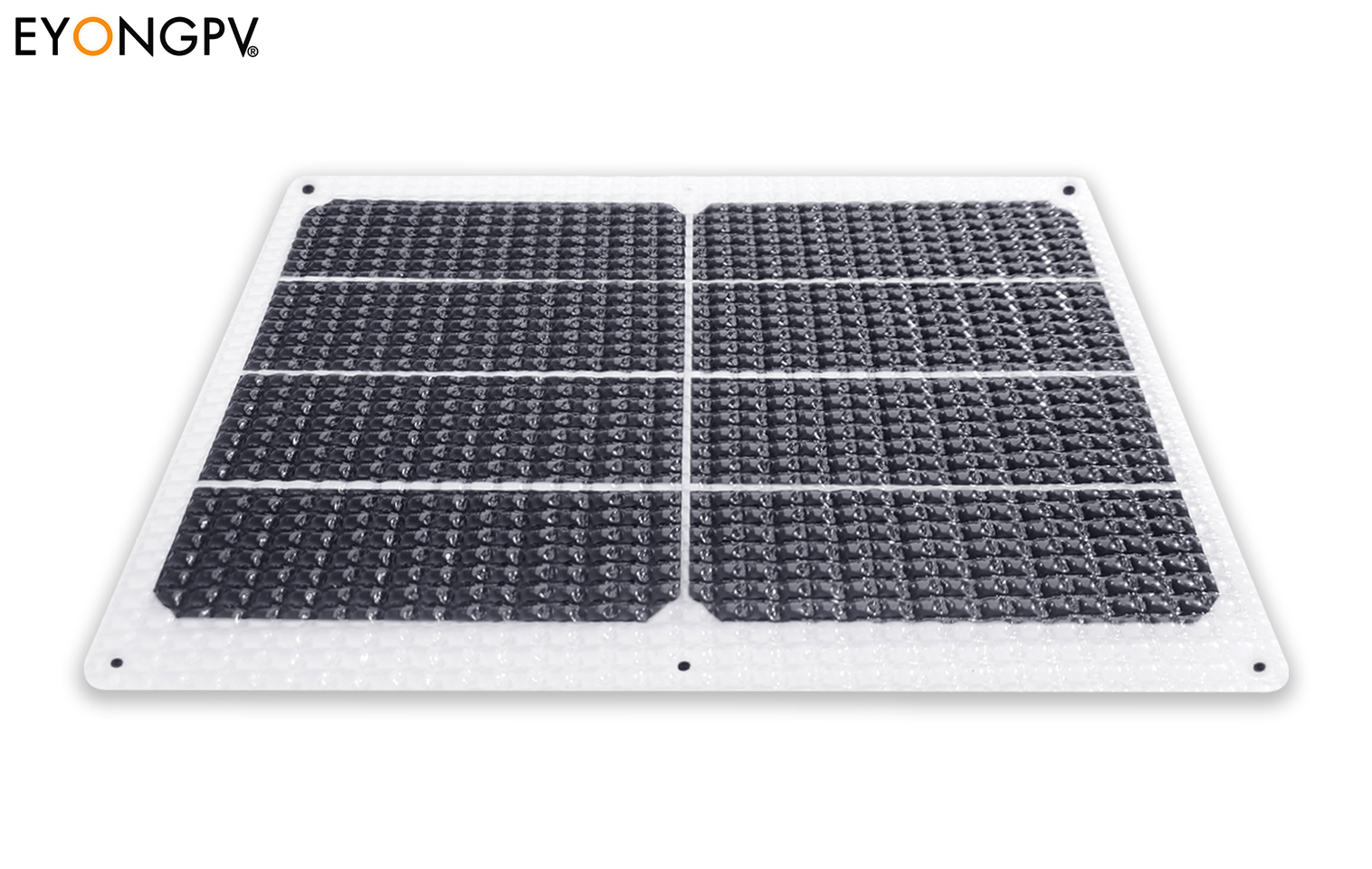

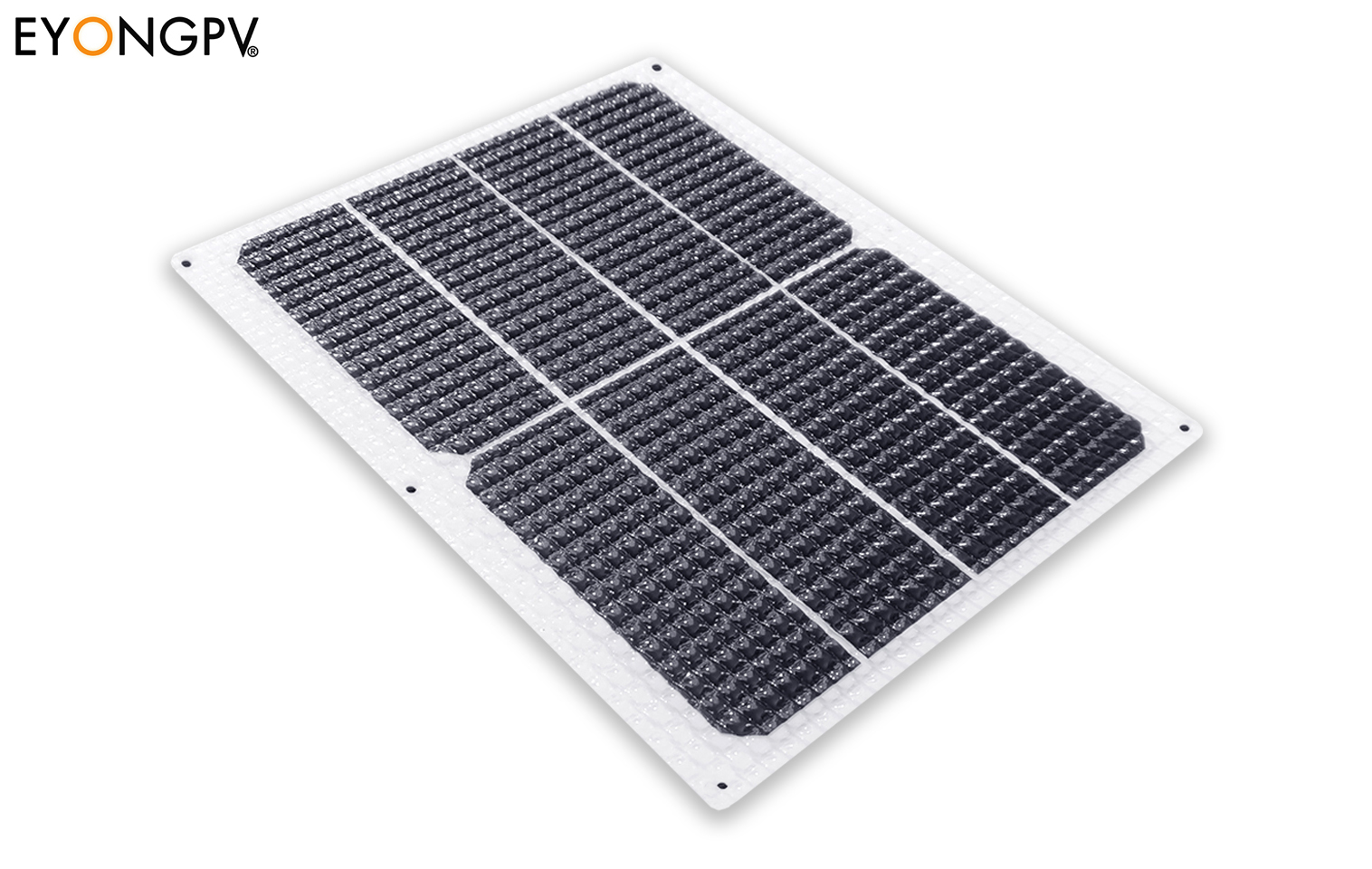

9W Sunpower Maxeon Mono Flexible Bendable Solar Panel

●
Powerful power output: SunPower flexible panels are the #1 choice for customers due to the combination of high power and cell ruggedness.
●
Highest charging capacity: Highest-efficiency solar cells available which as a result means more power or faster charging times for solar compatible batteries.
●

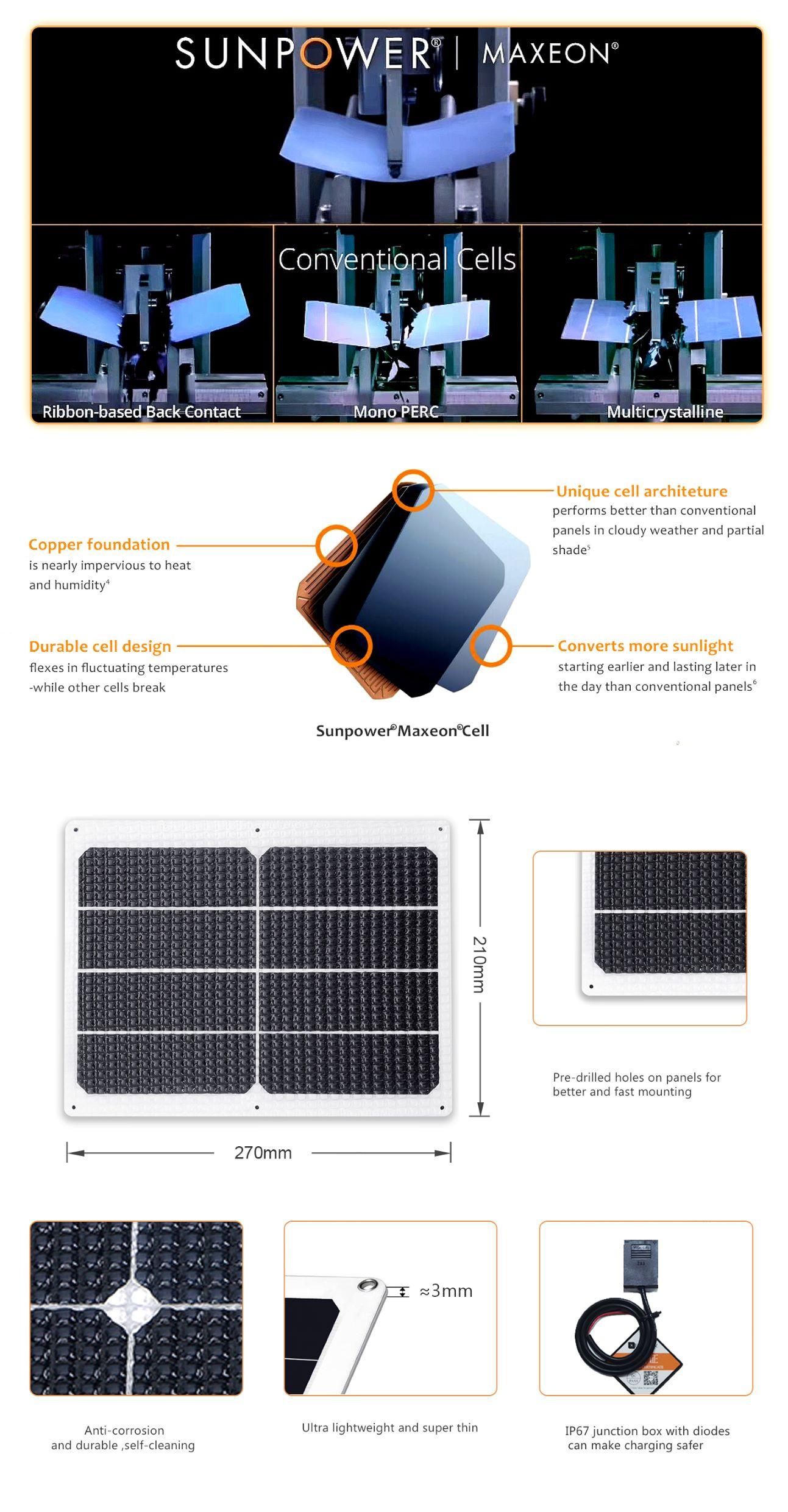

Special design with back copper: Built on a solid copper foundation. As a result SunPower cells are resistant to power loss via cracking and corrosion.
●
Anti-corrosion, durable: EyongPV assures your panels will create 80% of their minimum power for at least five years. all for a cost-effective price.
●
Premium ETFE film: This film features superior light transmittance and weatherproof performance, and is also heat, corrosion, and UV resistant. This material surfaces are easy to clean, ensures the best performance day after day. all for a cost-effective price.
●

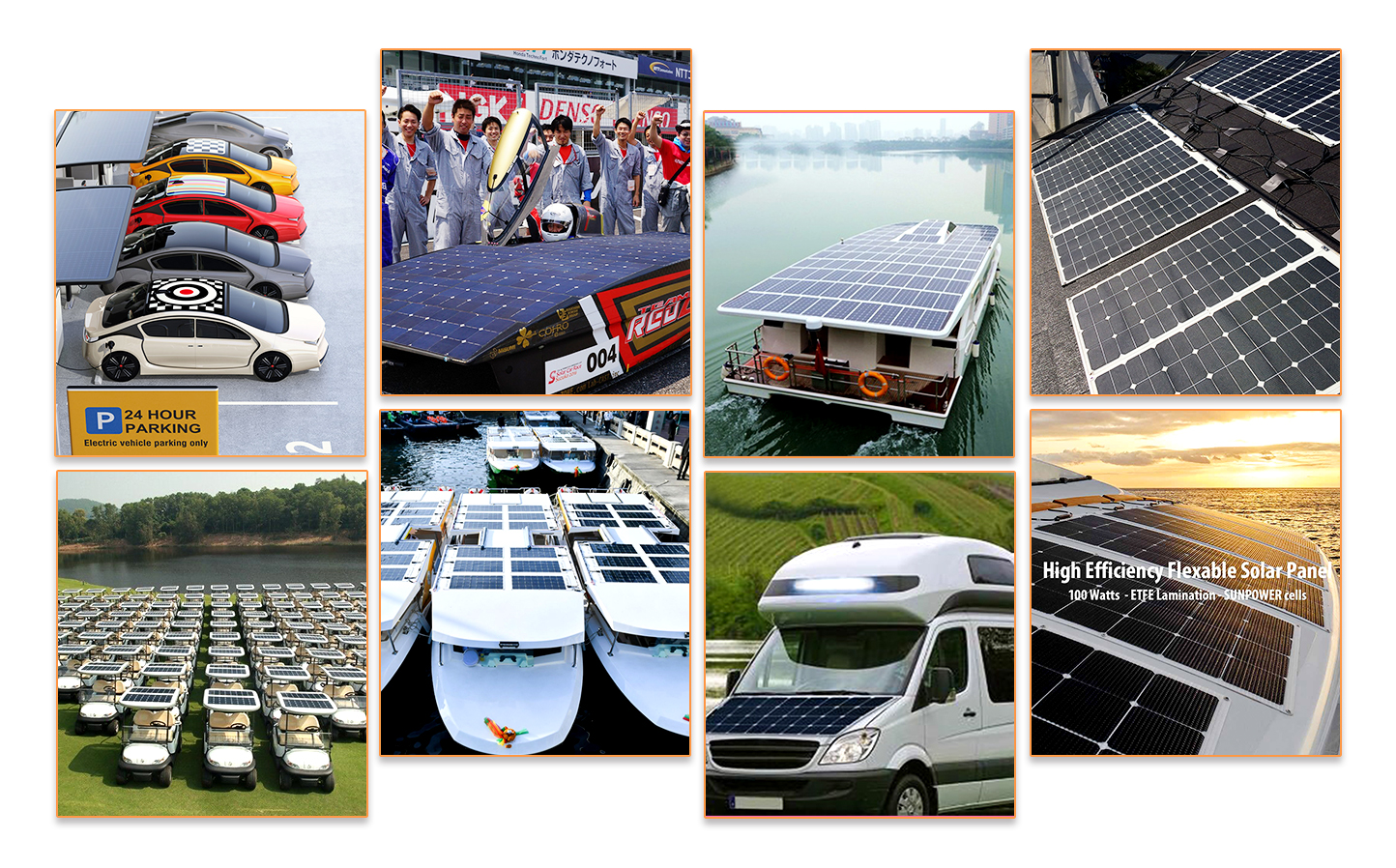

Widely applications: It can be bent to a certain extent, suitable for marine using, motorhomes, camping, sailing, boon-docking and caravans as well as curved roof or any other irregular surface.
●
Customizable connectors: The regular output connector is MC4, we also can customize any connectors according to your needs, including the length of the wire.

Inquiry now

Standard Test Conditions:	(Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc)
Maximum Power Pmax	9W
Voltage at Maximum Power Point (Vmpp)	4.5V
Current at Maximum Power Point (Impp)	2.0A
Open Circuit Voltage (Voc)	5.4V
Short Circuit Current (Isc)	2.15A
Operating Temperature	-20℃ ~ +65℃
Max System Voltage (IEC/UL)	150V DC
Temperature Coefficient of Isc	(+0.06% /ºC)
Temperature Coefficient of Voc	(-0.33% /ºC)
Temperature Coefficient of Pmax	(-0.41% /ºC)

Cell Type	SunPower solar cell
Cell Size	125 x 125mm
Size	272 x 210 x 3.0mm
Surface Material	High performance corrosion resistant ETFE
No. of Folding	8 = 2 x 4
Weight	0.25 KG

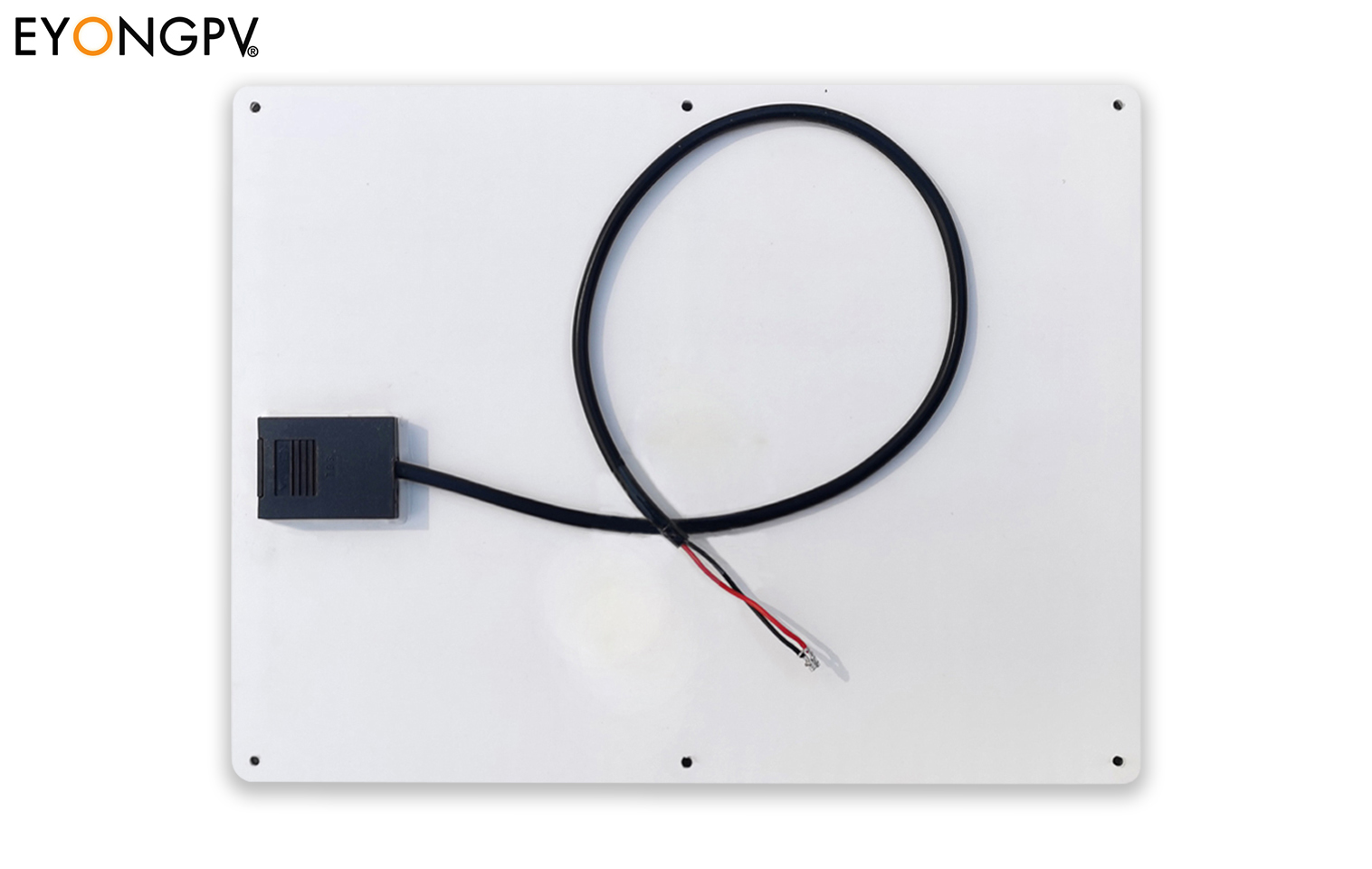

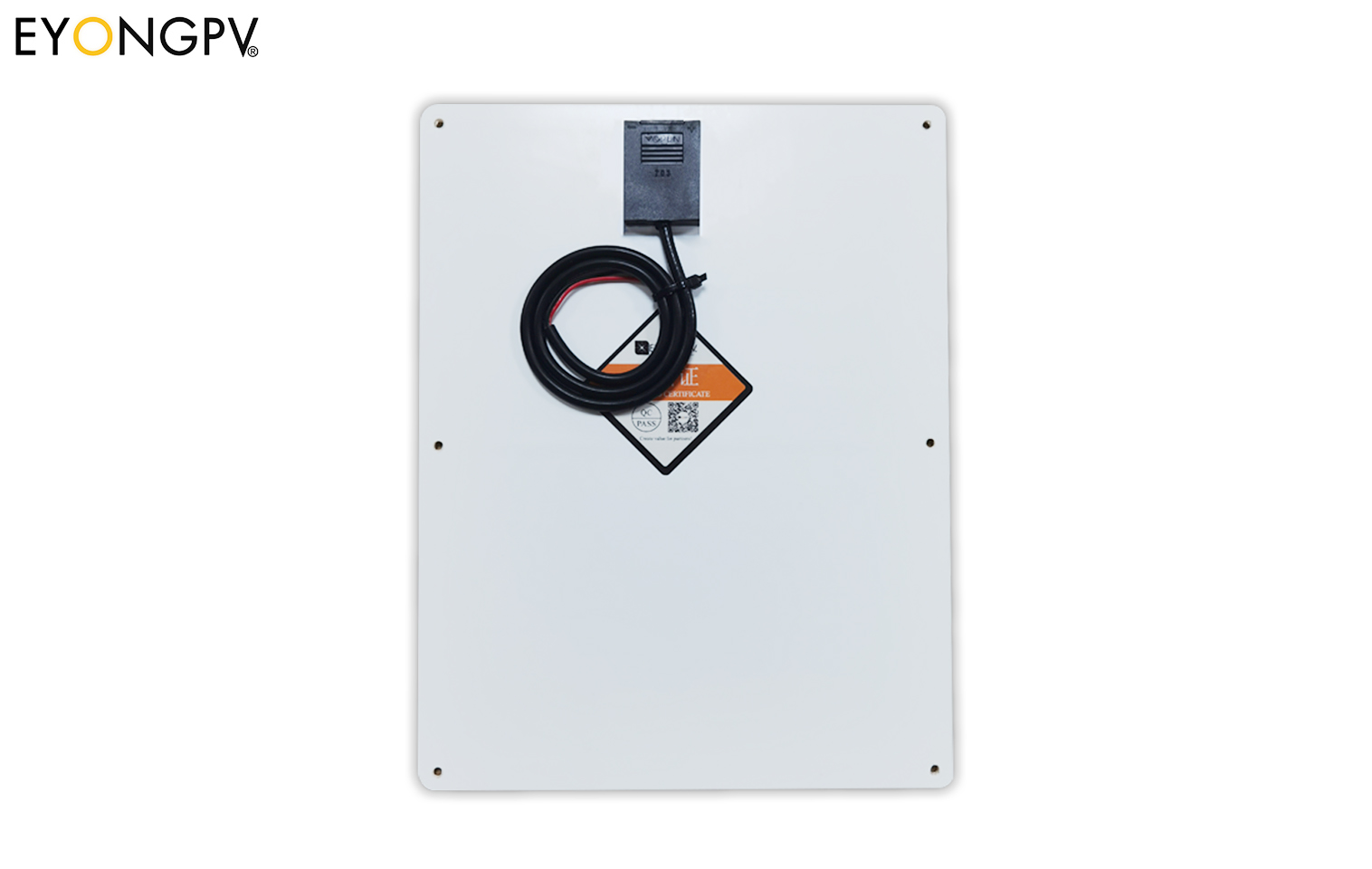

Junction Box	IP67 Rated
Type of Connector	JST-SXA-01T-P0.6
Certifications	CE, FCC, ROHS, REACH

Specification
