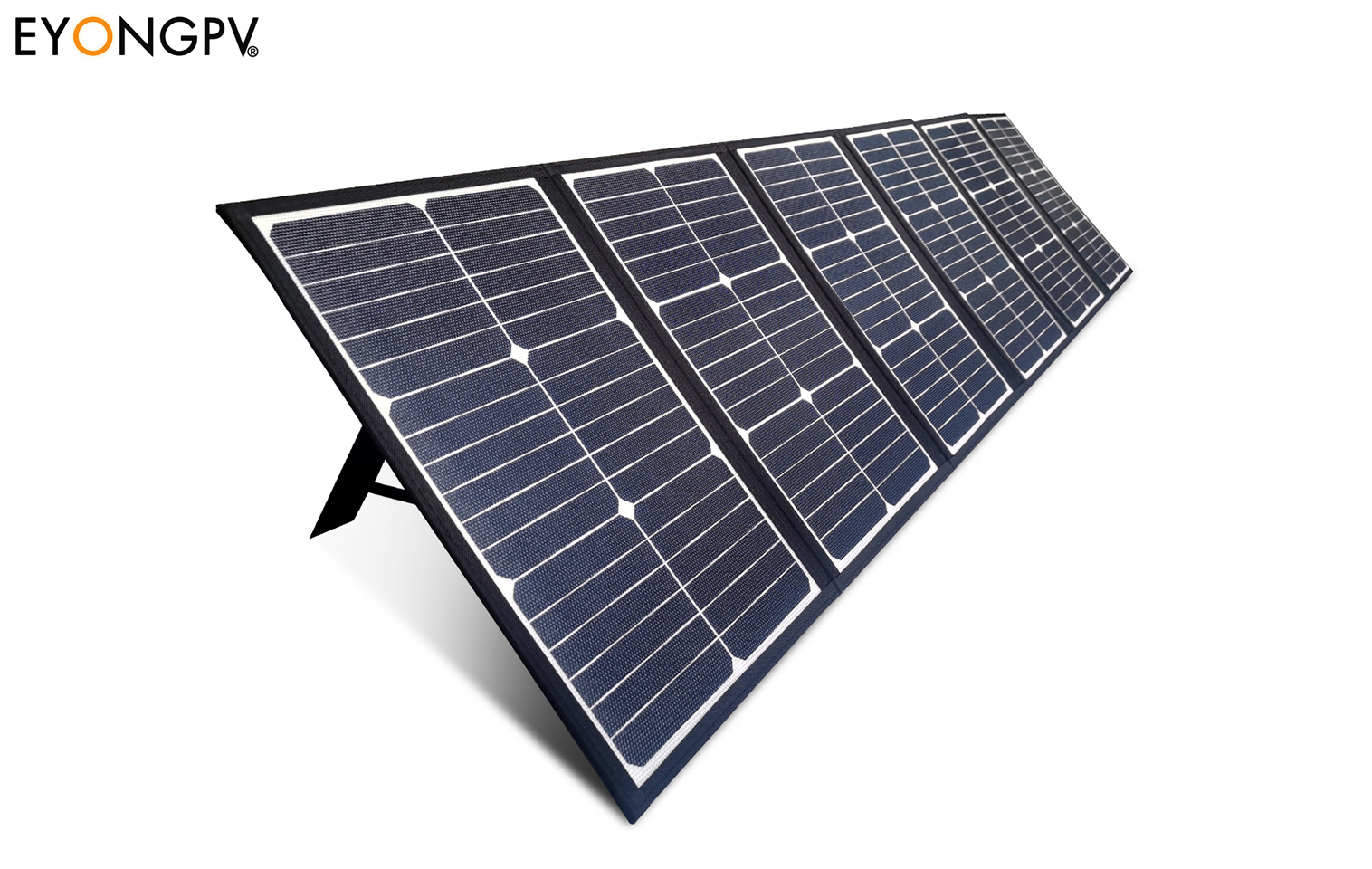

EYF120-20SP6
120W 6Folds Sunpower Mono Foldable Folding Portable ETFE Solar Panel Kit
-
●
Powerful power output: SunPower cells are the #1 choice for customers due to the combination of high efficiency and ruggedness.
-
●

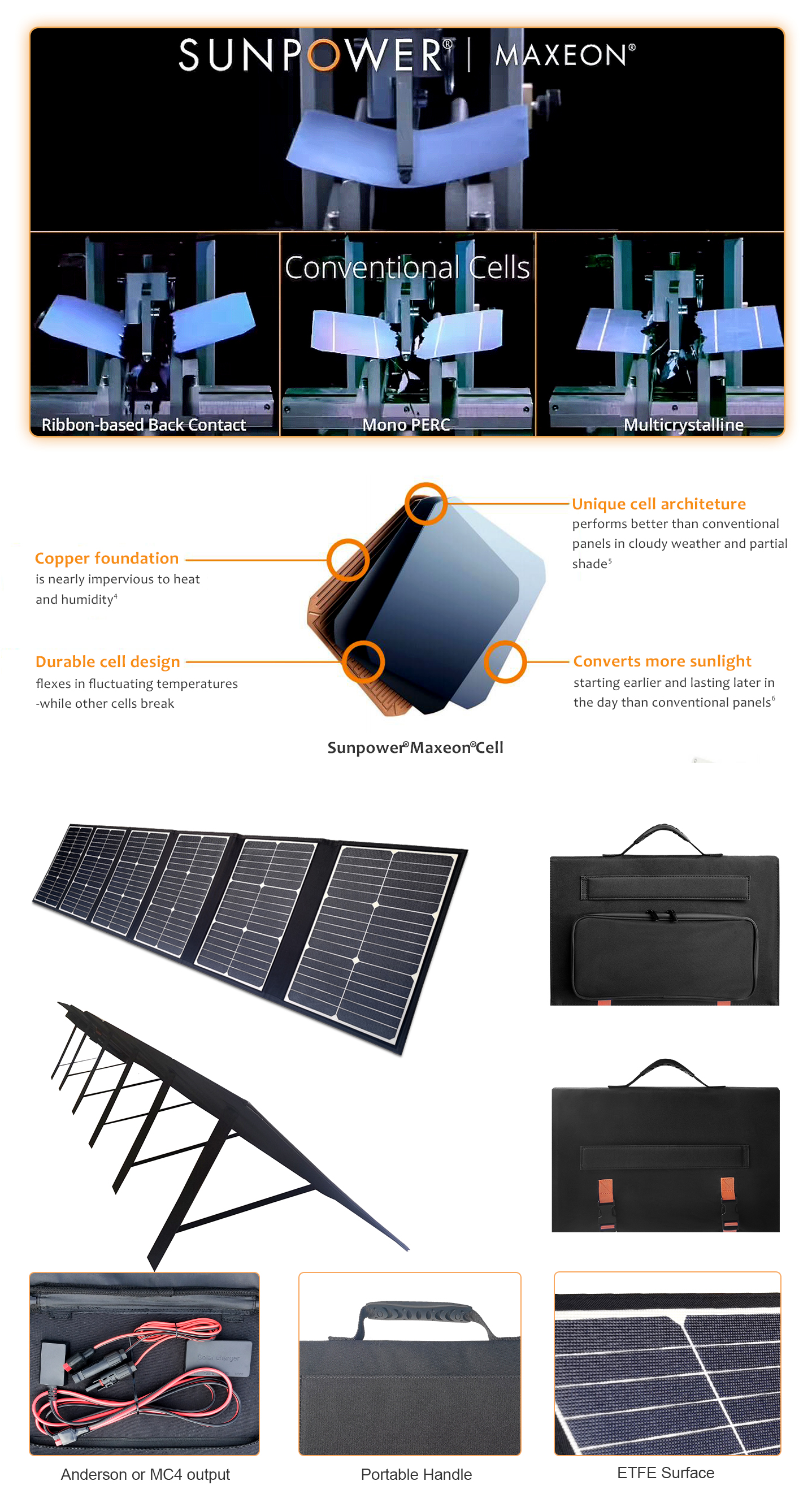

Unique cell structure: SunPower cell is built on thick and strong copper wire, As a result it can be resistant to power loss via cracking and corrosion.
-
●
Portable & Charging: Portable and foldable design save space even be better to put and easier to carry anywhere. Built-in bracket design is better for charging anytime, anywhere.
-
●
Reinforcement design: EyongPV unique manufacturing process combines polymer materials to make solar panels thin and hard.
-
●
Super waterproof: Cloth and zip are used waterproofing materials.
-
●
Longer service life: The ETFE film has excellent light transmittance and weather resistance, as well as heat, corrosion and UV resistance. Longer service life is for higher cost performance.
-
●
Widely applications: It can supply power to Mobile phone, DC electric appliance, Vehicle power supply, Refrigerator, Portable energy storage power supply , Oil exploration equipment and Marine etc.
Specification
SPECIFICATIONS
Electrical Specifications |
Standard Test Conditions: |
(Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc) |
|
Maximum Power Pmax |
120W | |
Voltage at Maximum Power Point (Vmpp) |
19.8V | |
Current at Maximum Power Point (Impp) |
6.06A | |
Open Circuit Voltage (Voc) |
23.6V | |
Short Circuit Current (Isc) |
6.50A | |
Operating Temperature |
-20℃ ~ +65℃ |
|
Max System Voltage (IEC/UL) |
1000V DC |
|
Temperature Coefficient of Isc |
(+0.06% /ºC) |
|
Temperature Coefficient of Voc |
(-0.33% /ºC) |
|
Temperature Coefficient of Pmax |
(-0.41% /ºC) |
Mechanical Specifications |
Cell Type |
SunPower solar cell | |
Cell Size |
125 x 125mm | |
Opened Size |
1860 x 430mm | |
Folded size |
310 x 430mm | |
No. of Folding |
6 = 1 x 6 | |
Weight |
4.65 KG |
|

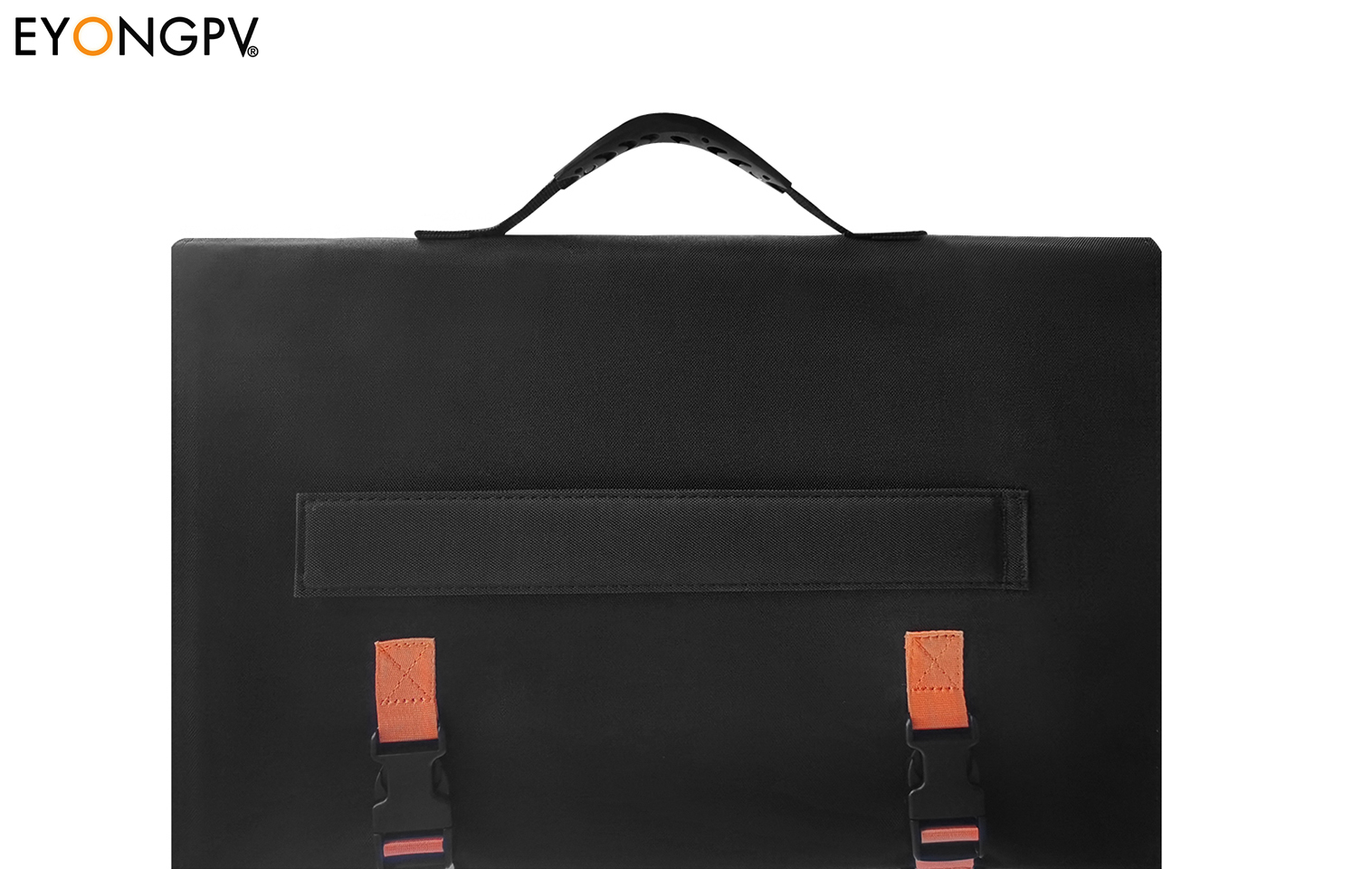

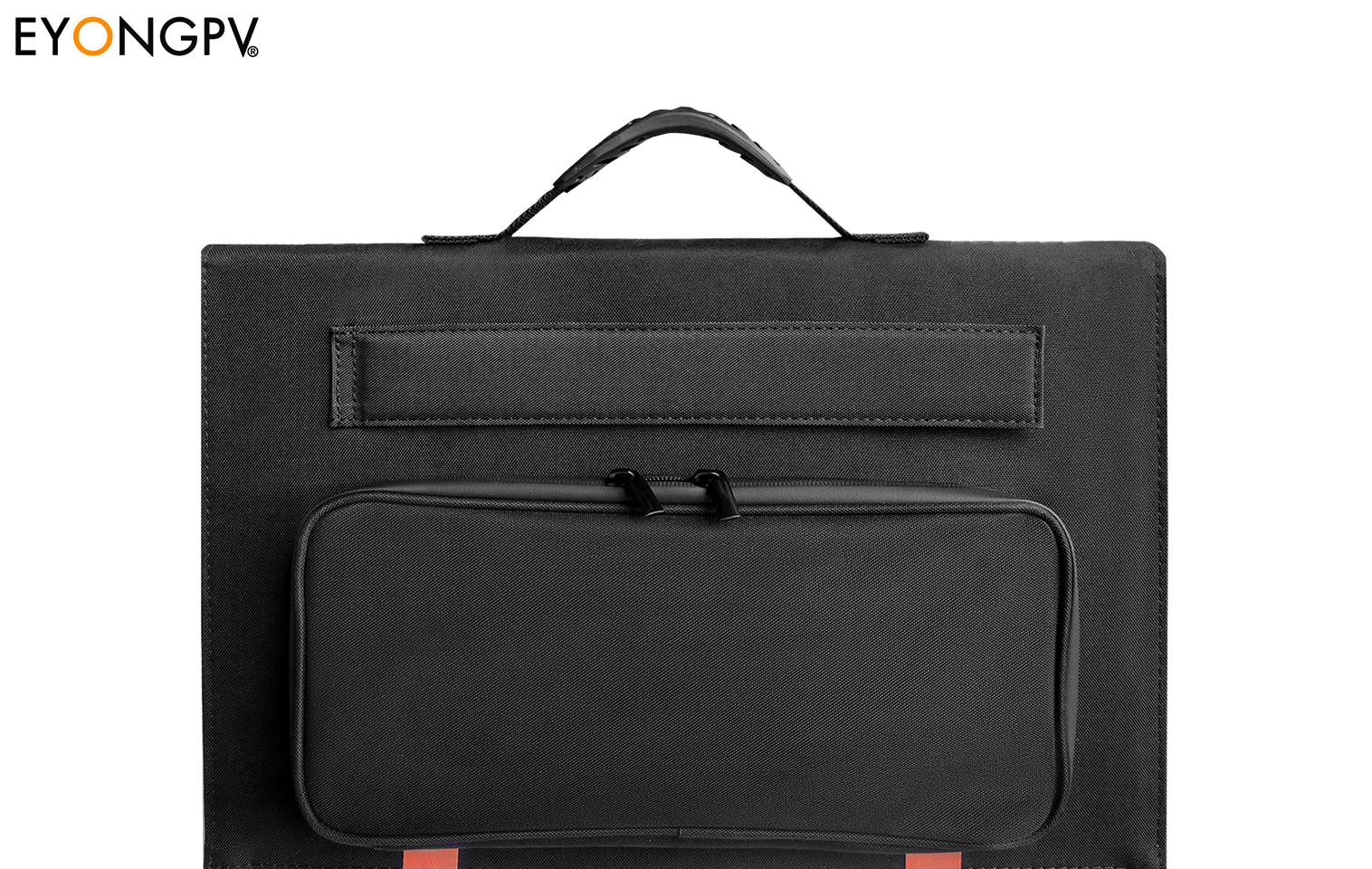

Bag Material | 900D | |
Surface Material |
High performance corrosion resistant ETFE |
|
Junction Box |
IP67 Rated |
|
Type of Connector |
Sae connector output |
|
More functions |

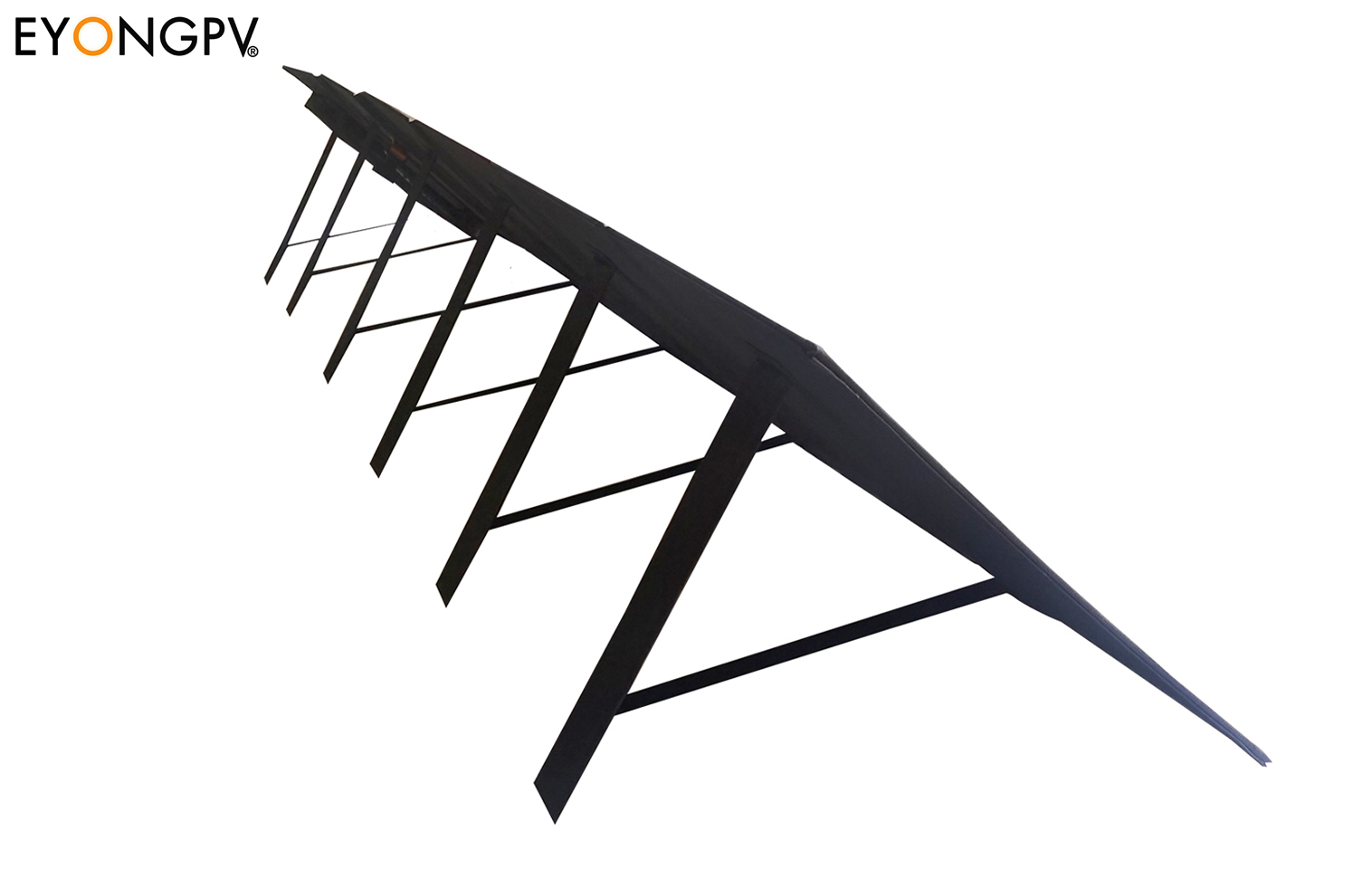

Kickstands |
|
Certifications |
CE, FCC, ROHS, REACH |
Product display
DISPLAY

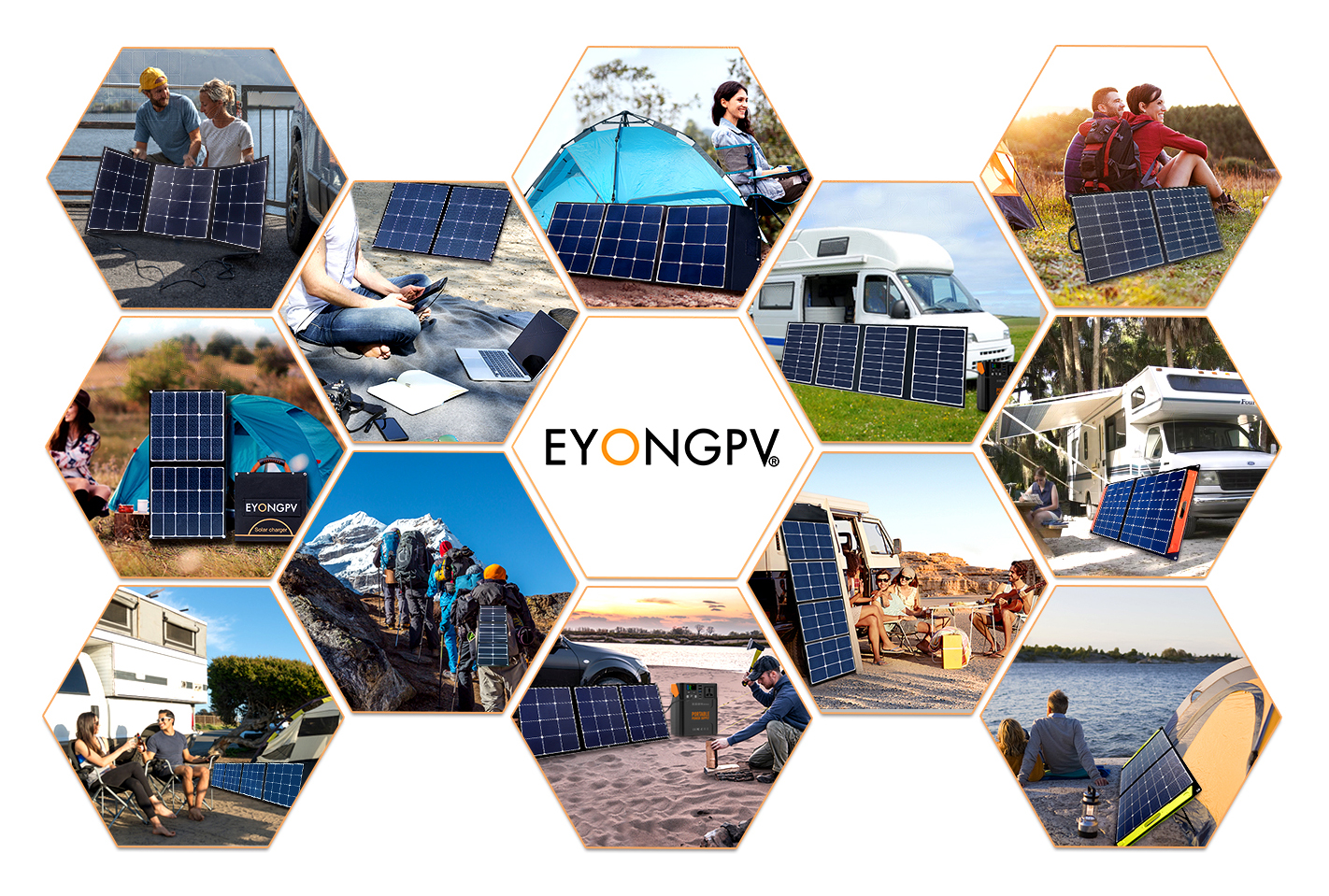

Application
APPLICATIONS
This types of products are very widely used, such as RV, oil exploration, boats, ships, yachts, phones, tablets, cameras, UAV, laptops, power stations and energy storages etc.
