EYF200-18SP4H

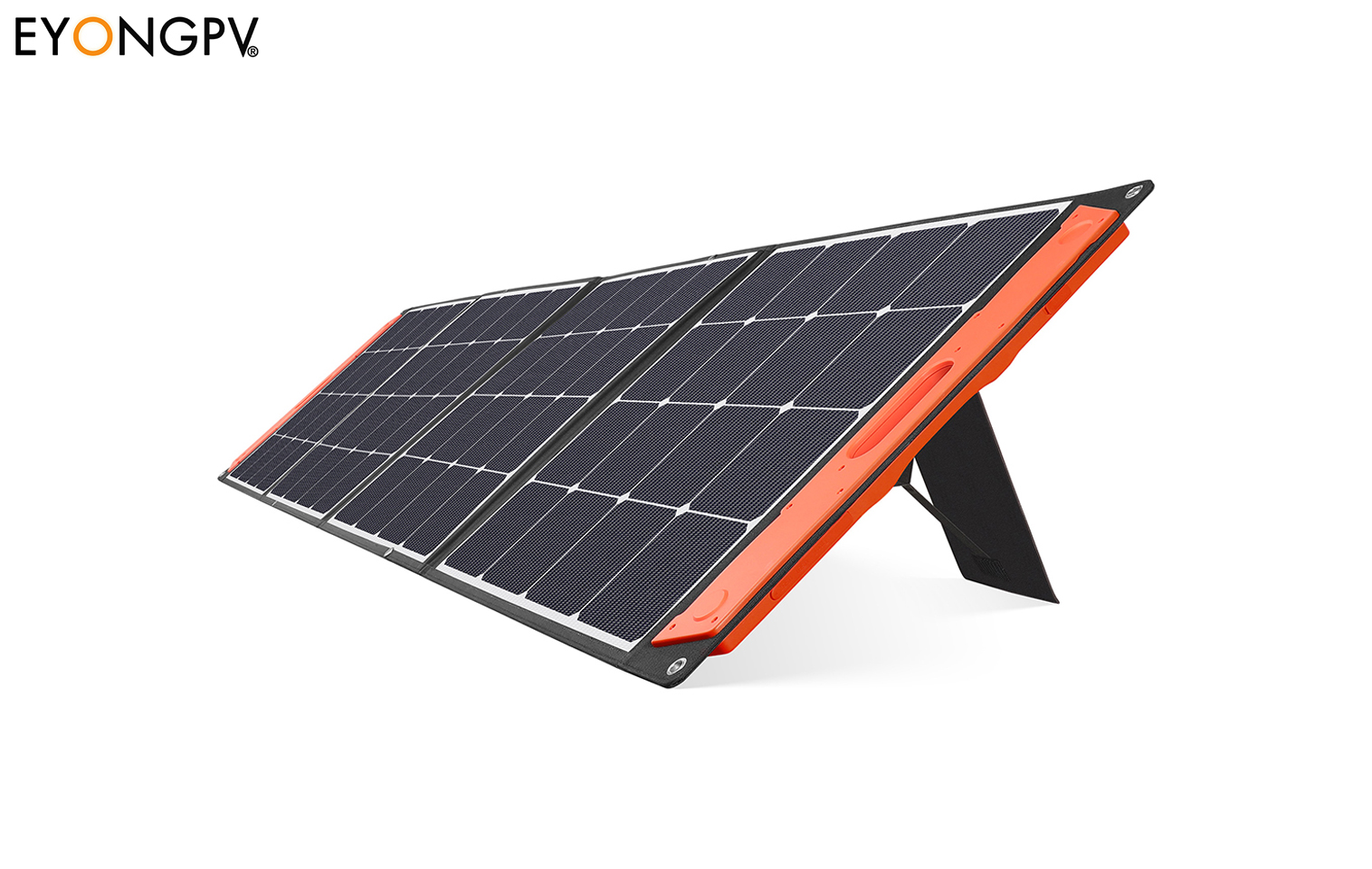

200W 4Folds Sunpower Mono Foldable Folding Portable ETFE Solar Panel Charger Kit with Handles

●
Powerful power output : SunPower cells are the #1 choice for customers due to the combination of high efficiency and ruggedness.
●

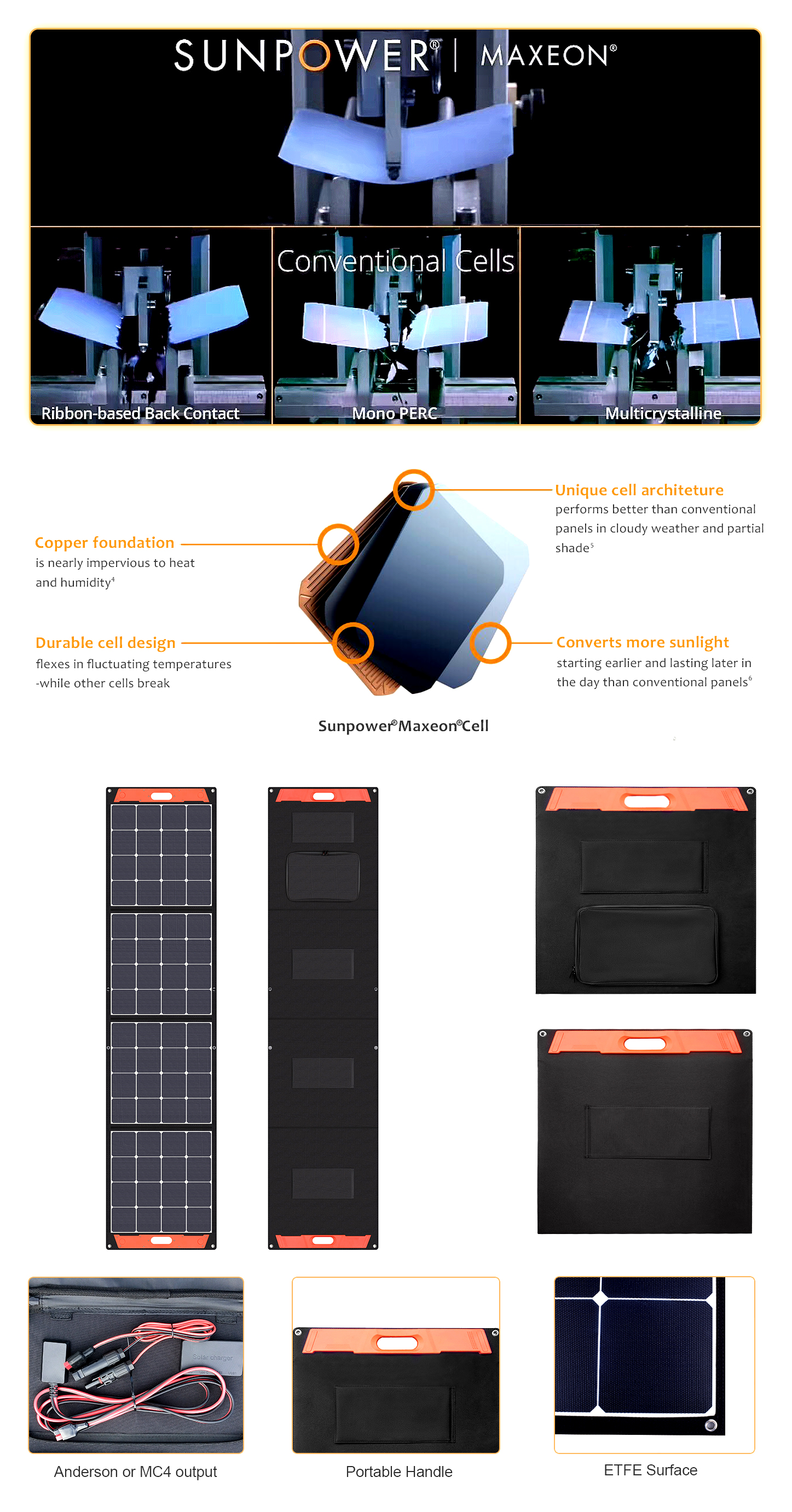

Unique cell structure: SunPower cell is built on thick and strong copper wire, As a result it can be resistant to power loss via cracking and corrosion.
●
Portable & Charging: Portable and foldable design save space even be better to put and easier to carry anywhere. Built-in bracket design is better for charging anytime, anywhere.
●
Reinforcement design: EyongPV unique manufacturing process combines polymer materials to make solar panels thin and hard.
●
Super waterproof : Cloth and zip are used waterproofing materials.
●
Longer service life: The ETFE film has excellent light transmittance and weather resistance, as well as heat, corrosion and UV resistance. Longer service life is for higher cost performance.
●
Widely applications: It can supply power to Mobile phone, DC electric appliance, Vehicle power supply, Refrigerator, Portable energy storage power supply , Oil exploration equipment and Marine etc.

Inquiry now

Standard Test Conditions:	(Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc)
Maximum Power Pmax	200W
Voltage at Maximum Power Point (Vmpp)	17.6V
Current at Maximum Power Point (Impp)	11.36A
Open Circuit Voltage (Voc)	21.6V
Short Circuit Current (Isc)	12.20A
Operating Temperature	-20℃ ~ +65℃
Max System Voltage (IEC/UL)	1000V DC
Temperature Coefficient of Isc	(+0.06% /ºC)
Temperature Coefficient of Voc	(-0.33% /ºC)
Temperature Coefficient of Pmax	(-0.41% /ºC)

Cell Type	SunPower solar cell
Cell Size	161.7 x 161.7mm
Opened Size	2360 x 550mm
Folded size	630 x 550mm
No. of Folding	4 = 1 x 4
Weight	6.9 KG
Bag Material	900D
Surface Material	High performance corrosion resistant ETFE
Junction Box	IP67 Rated
Type of Connector	MC4, Anderson, USB ports
More functions	Kickstands
Certifications	CE, FCC, ROHS, REACH

Specification
