EYP6-5M-D3

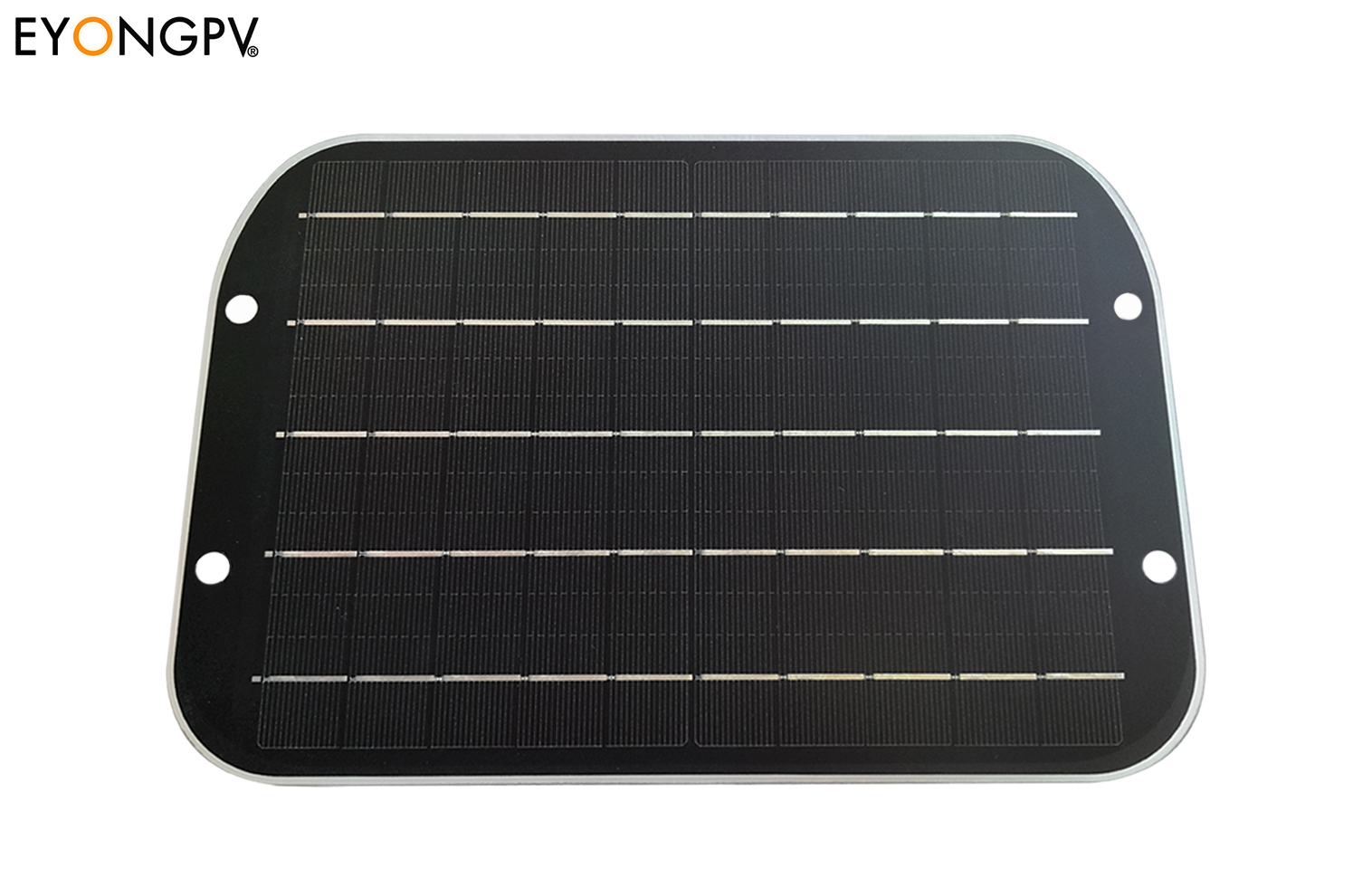

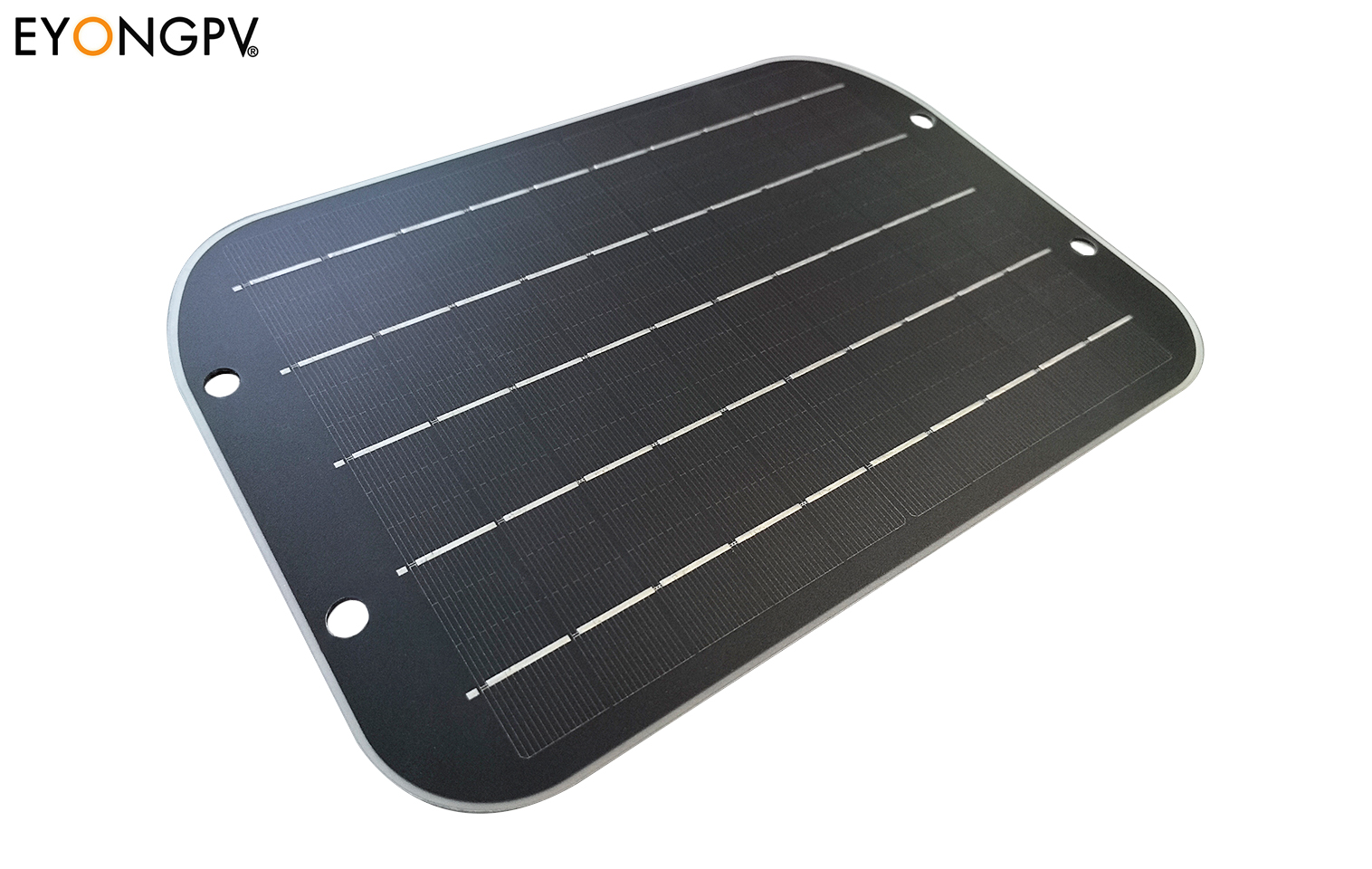

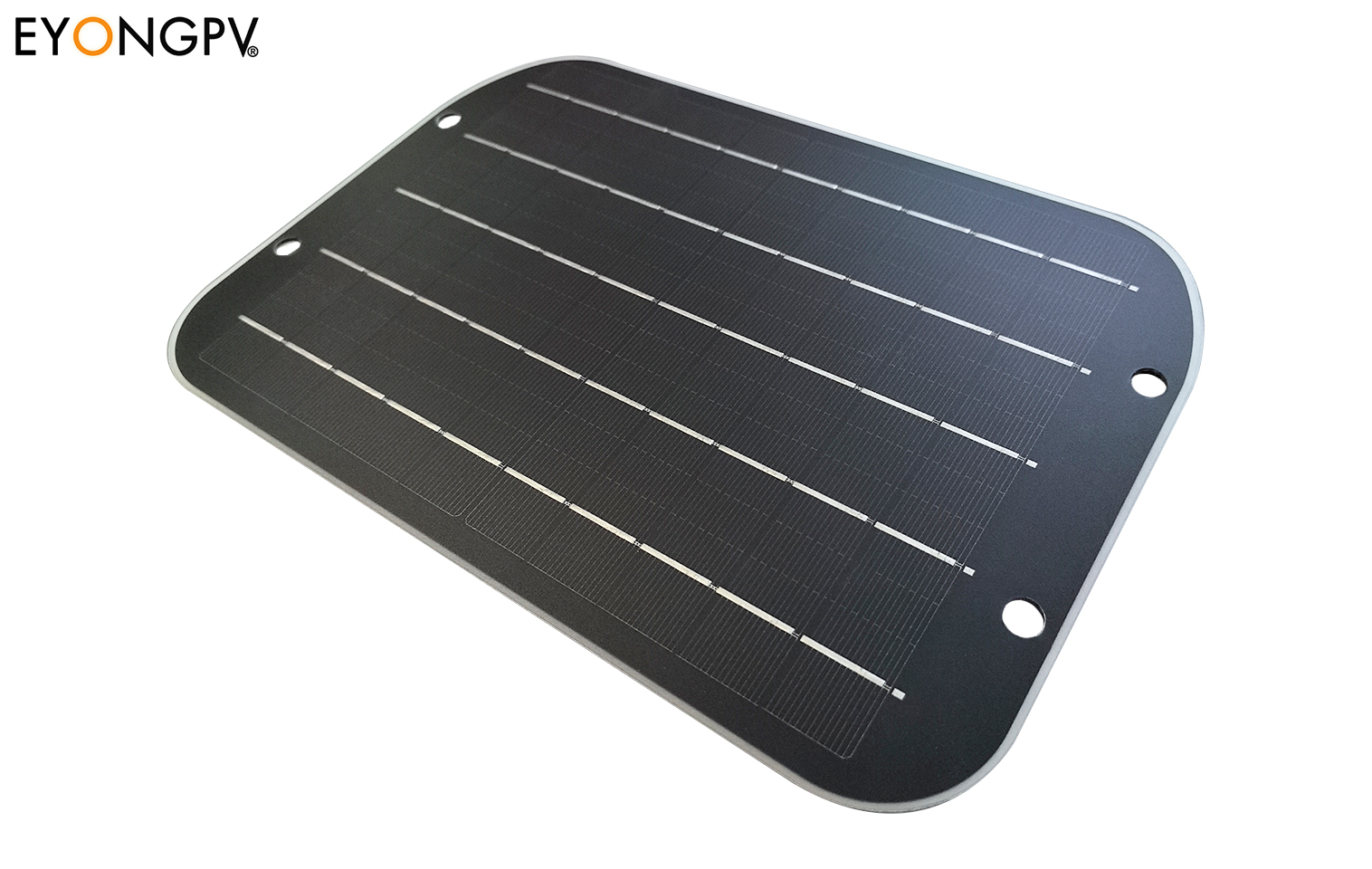

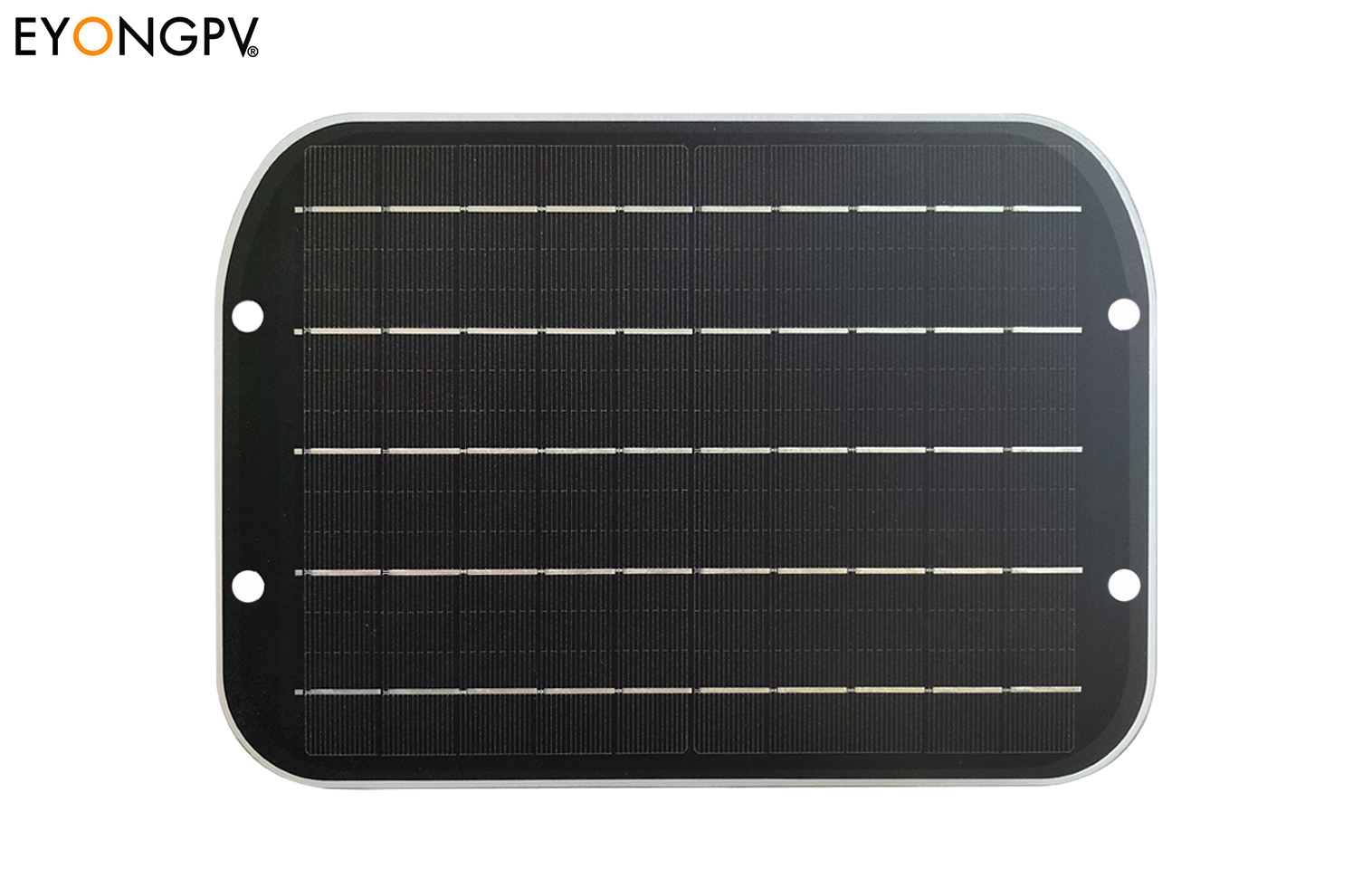

6W-5V Custom Mono PET Mini Bike Lamp Light Solar Panel

●
Powerful power output: Made of grade A monocrystalline solar cells with much higher efficiency that make sure more stable and durable
●
Premium matte PET film: Anti-corrosion, anti-fouling, easy to clean, ensures the best performance day after day. all for a cost-effective price.
●
Excellent weak light performance: Excellent performance under low light environments (mornings, evenings, rainy and cloudy days)
●
Bicycle domain: This product is widely used in various brands of solar bikes, it charges the battery on the bike to ensure that the positioning system of the bike is online in real time and the bike is available or not.
●

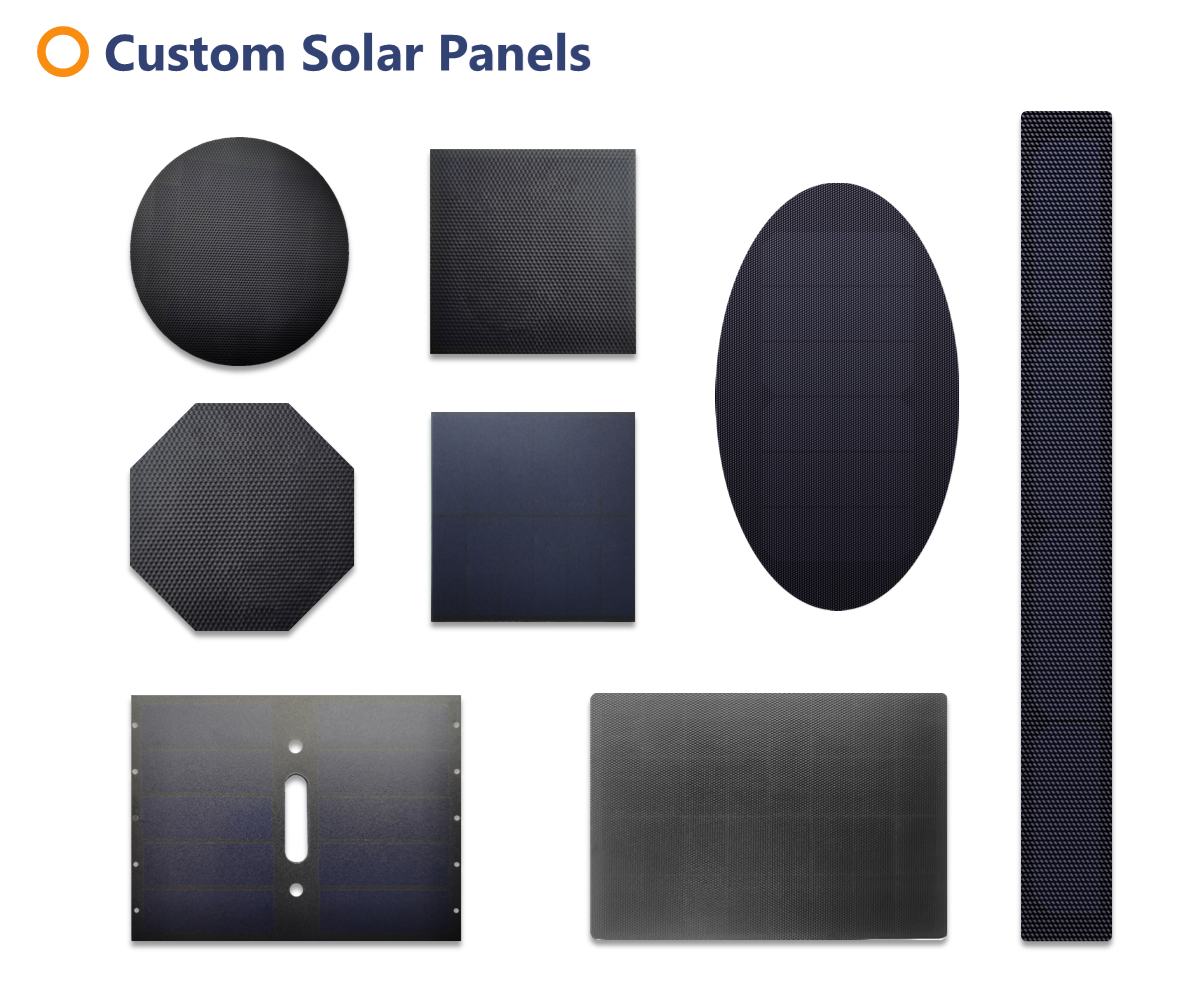

Customizable designs: We can customize any Powers, Voltages, Dimensions, Shapes, Holes, Thickness, Hardness, Feature, Processing method and so on that base on customer requirements.

Inquiry now

Standard Test Conditions:	(Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc)
Maximum Power Pmax	6W
Voltage at Maximum Power Point (Vmpp)	5V
Current at Maximum Power Point (Impp)	1.2A
Open Circuit Voltage (Voc)	6V
Short Circuit Current (Isc)	1.32A
Operating Temperature	-20℃ ~ +65℃
Max System Voltage (IEC/UL)	300V DC
Temperature Coefficient of Isc	(+0.06% /ºC)
Temperature Coefficient of Voc	(-0.33% /ºC)
Temperature Coefficient of Pmax	(-0.41% /ºC)

Cell Type	Monocrystalline solar cell
Cell Size	158.75 x 158.75mm
Size	270 x 175mm
Surface Material	High performance corrosion resistant PET
No. of Folding	10 = 1 x 10
Weight	0.25KG

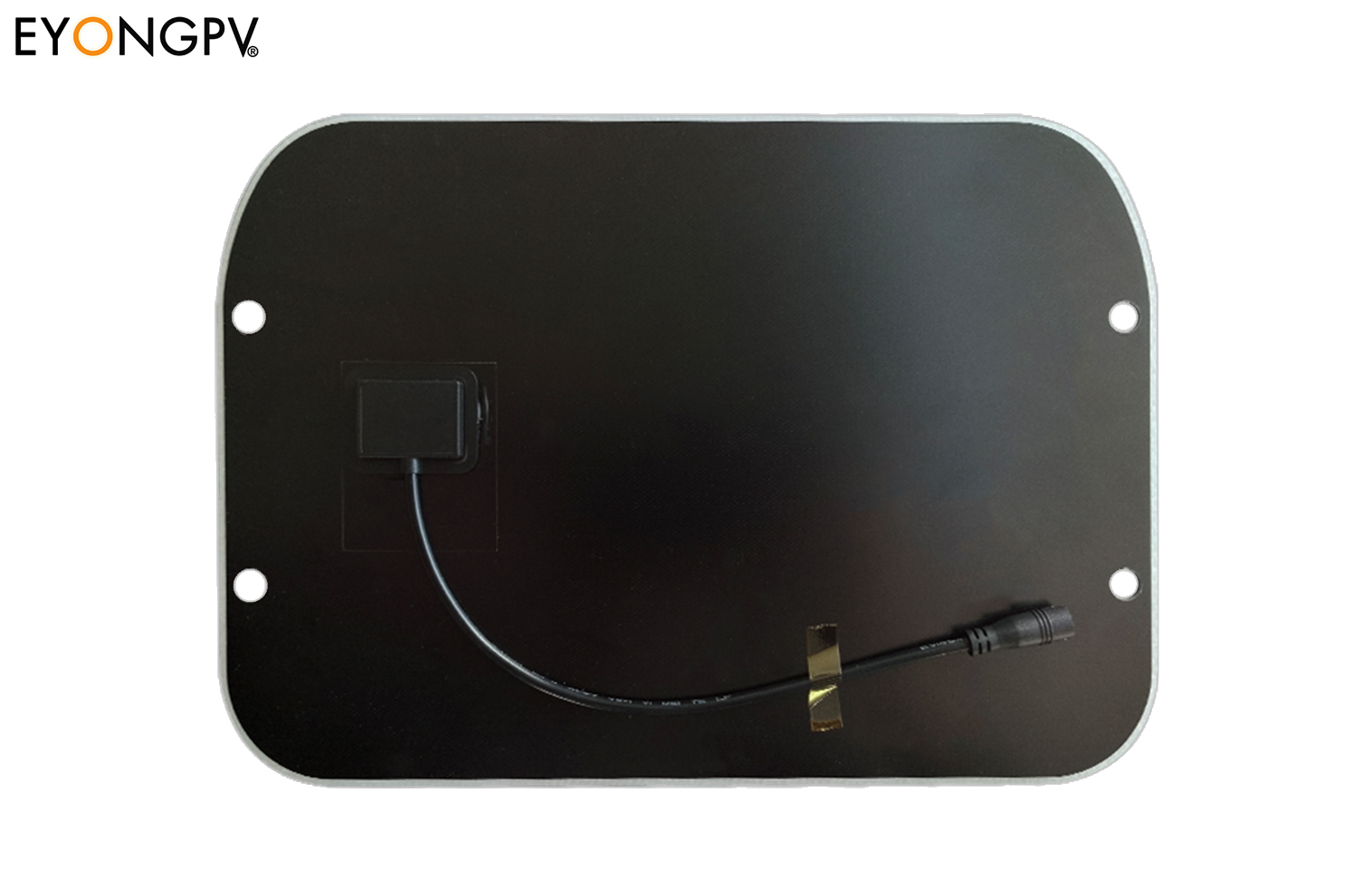

Junction Box	IP67 Rated

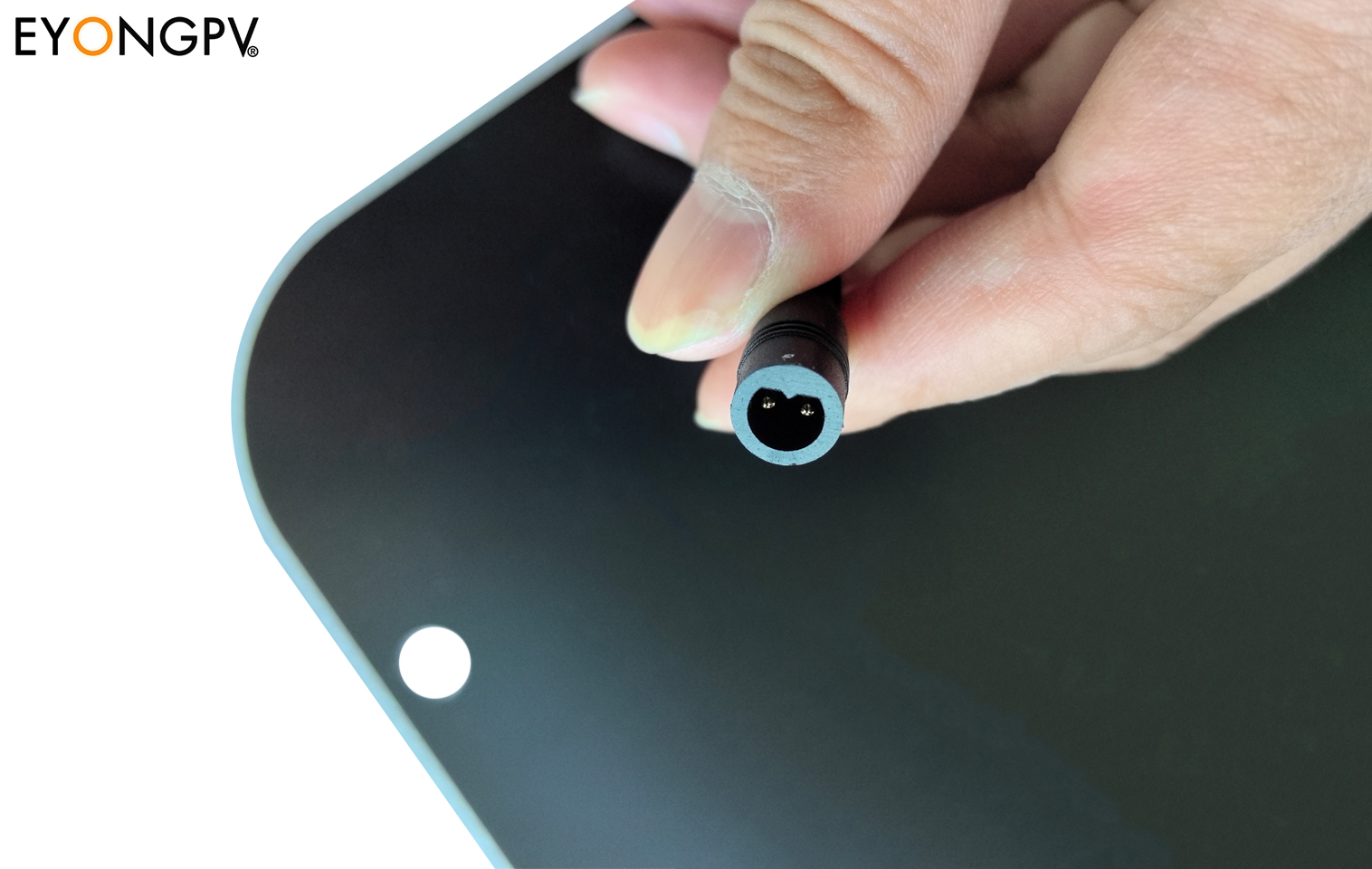

Type of Connector	Special connector for bicycle charging
Certifications	CE, FCC, ROHS, REACH

Specification
