EYM100-18SP

100W Glass Solar Module

●
Powerful power output: SunPower cells are the #1 choice for customers due to the combination of high efficiency and ruggedness.
●

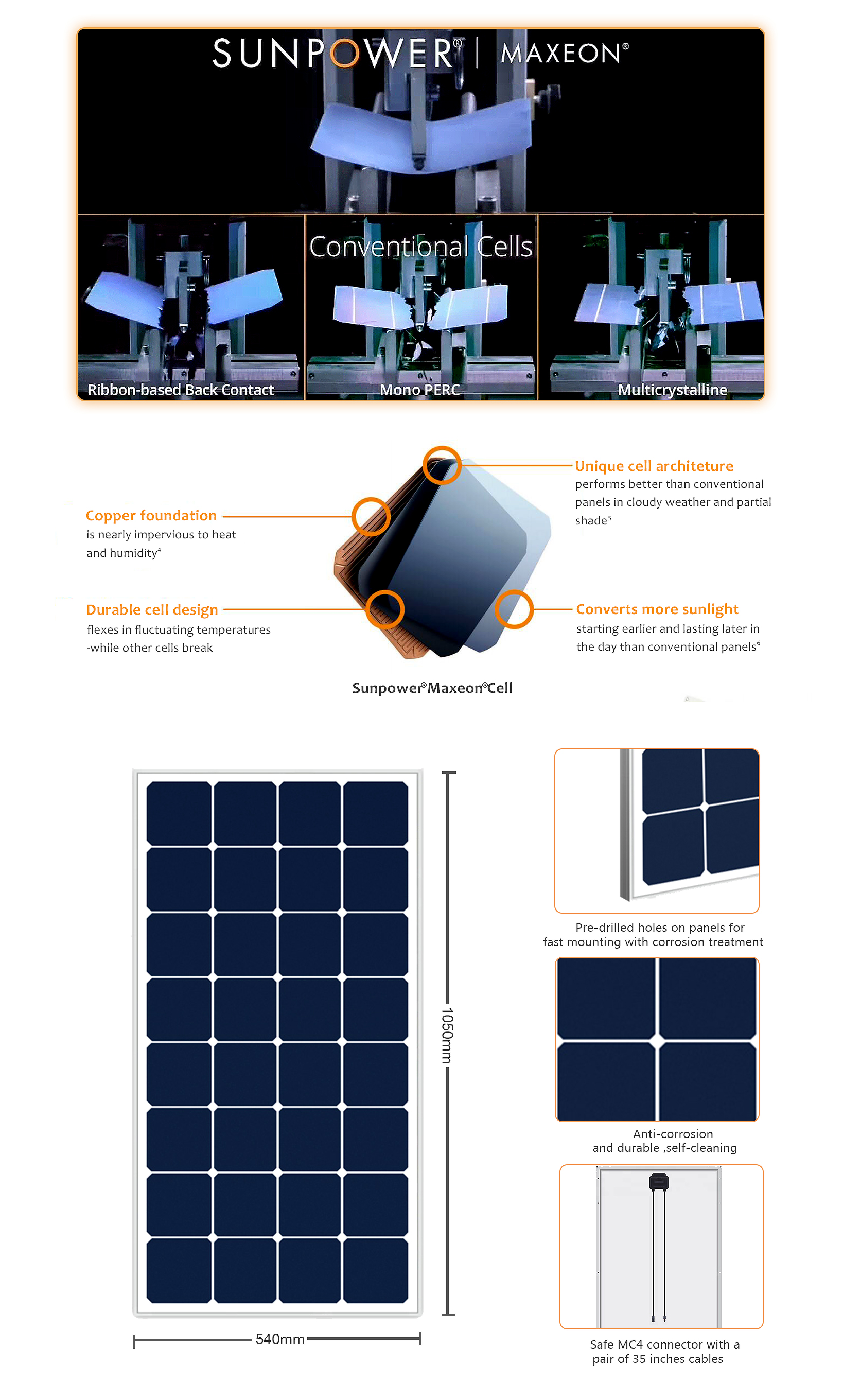

Unique cell structure: SunPower cell is built on thick and strong copper wire, As a result it can be resistant to power loss via cracking and corrosion.
●
Excellent weak light performance: Excellent performance under low light environments (mornings, evenings, rainy and cloudy days)
●
Lowest decay rate: Only within 8% in 25 years, the remaining 92%. 35% more electricity in 25 years.
●
Lower influence with temperature: Low attenuation coefficient in high temperature environment.
●
Easy Installation: Can be fixed by adhesive, grommets, velcro. Can be installed without costly structural roof reinforcements. besides reinforced mounting holes at each corner for screws fixing, make it easier to hang, and remove.

Inquiry now

Products: Foldable Solar Panels; Flexible Solar Panels; Custom Solar Panels; Standard Series; Portable Power Stations; Patented Solar Products

Contact us: E-mail : sales@eyongpv.com; Mobile: +86 15024003838; No. 4 Xiaolong Road, Henglang Community, Dalang St., Longhua District, Shenzhen, China

Standard Test Conditions:	(Irradiance of 1000W/m2, spectrum AM 1.5g and cell temperature of 25 ºc)
Maximum Power Pmax	100W
Voltage at Maximum Power Point (Vmpp)	17.6V
Current at Maximum Power Point (Impp)	5.69A
Open Circuit Voltage (Voc)	21.6V
Short Circuit Current (Isc)	6.15A
Operating Temperature	-20℃ ~ +65℃
Max System Voltage (IEC/UL)	700V DC
Temperature Coefficient of Isc	(+0.06% /ºC)
Temperature Coefficient of Voc	(-0.33% /ºC)
Temperature Coefficient of Pmax	(-0.41% /ºC)

Cell Type	SunPower solar cell
Cell Size	125 x 125mm
Size	1050 x 540 x 25mm

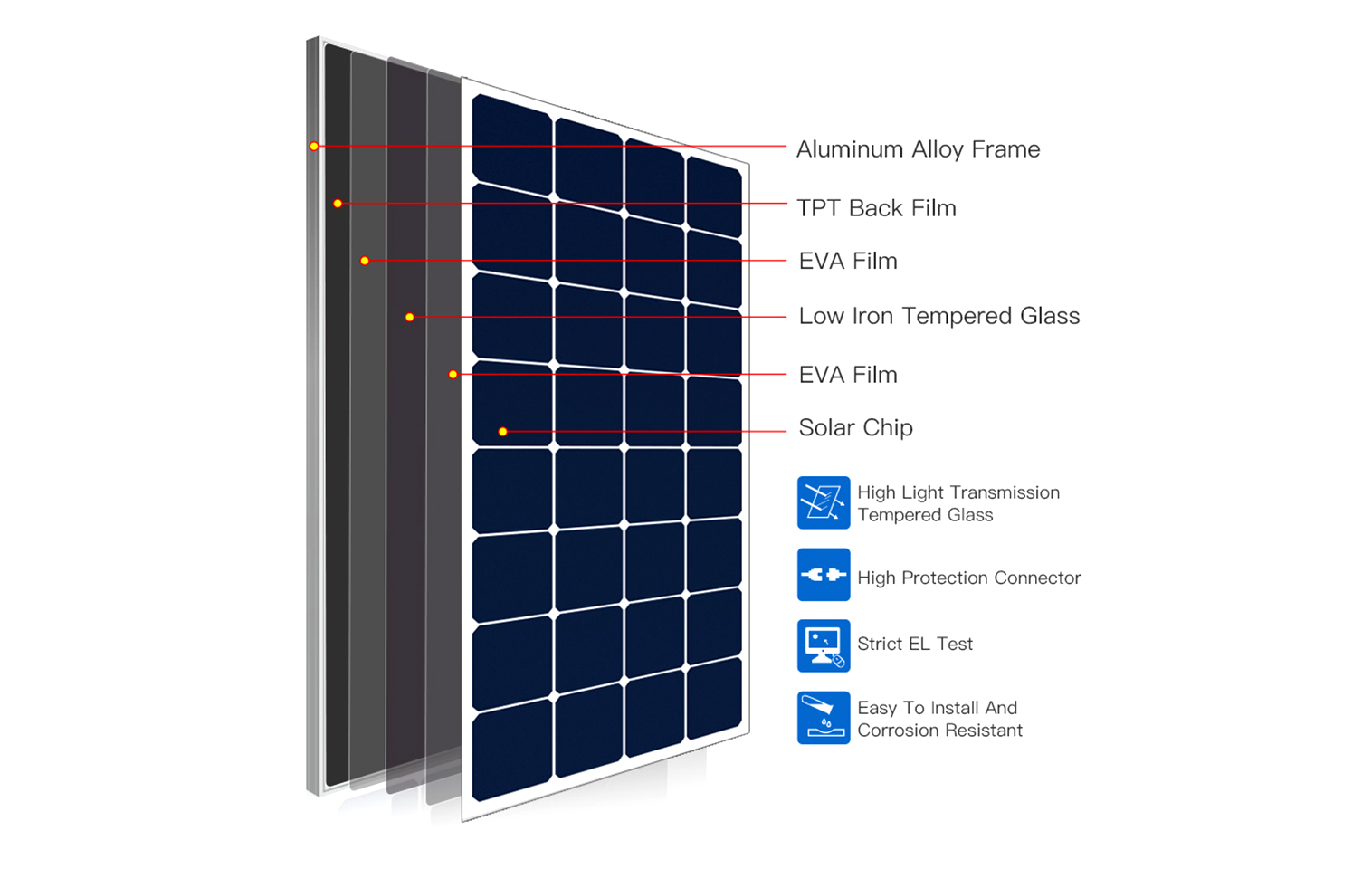

Surface Material	Super transparent tempered glass
No. of Folding	32 = 4 x 8
Weight	5.5 KG

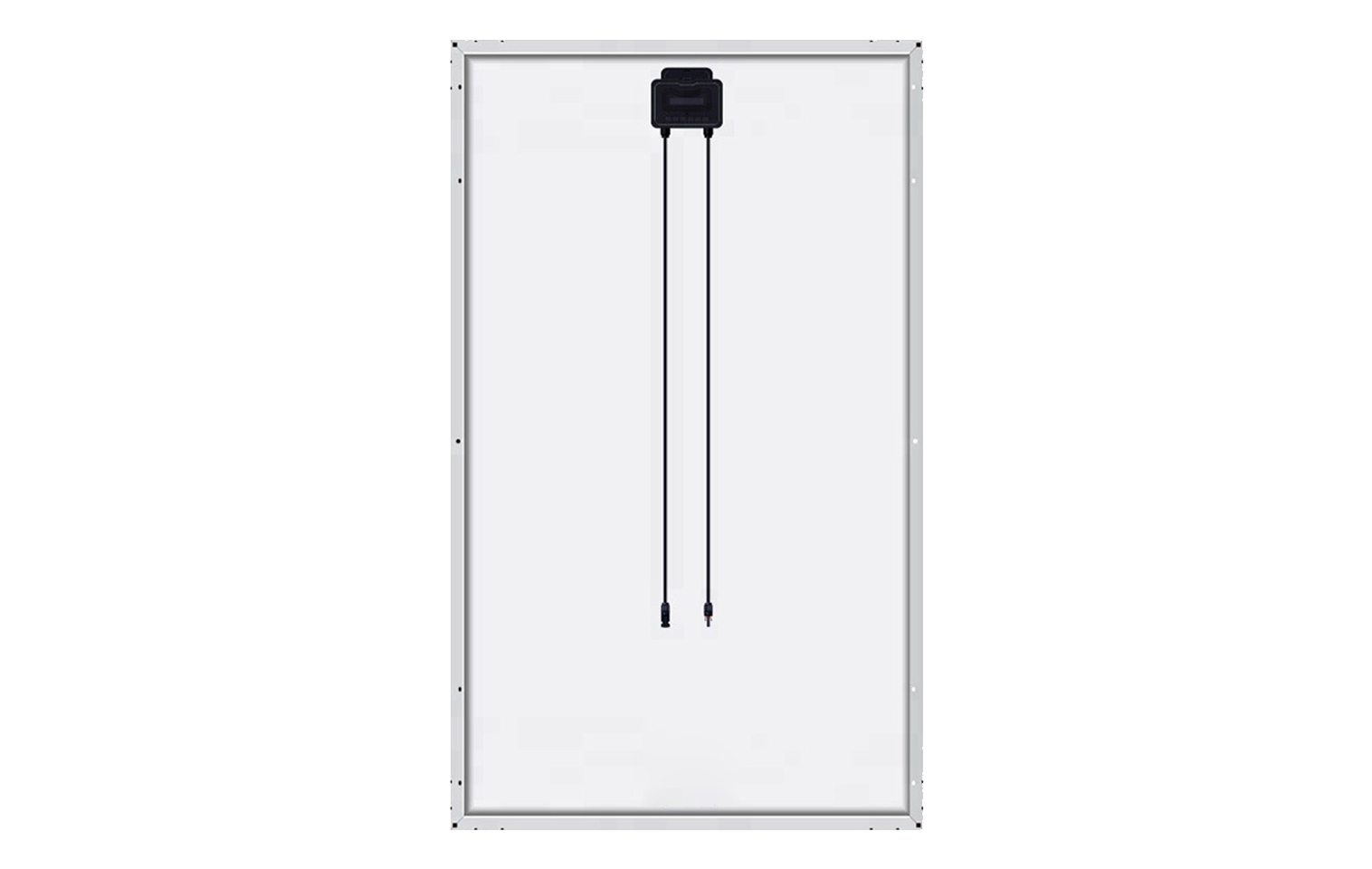

Junction Box	IP67 Rated
Type of Connector	MC4
Certifications	CE, FCC, ROHS, REACH

Specification
